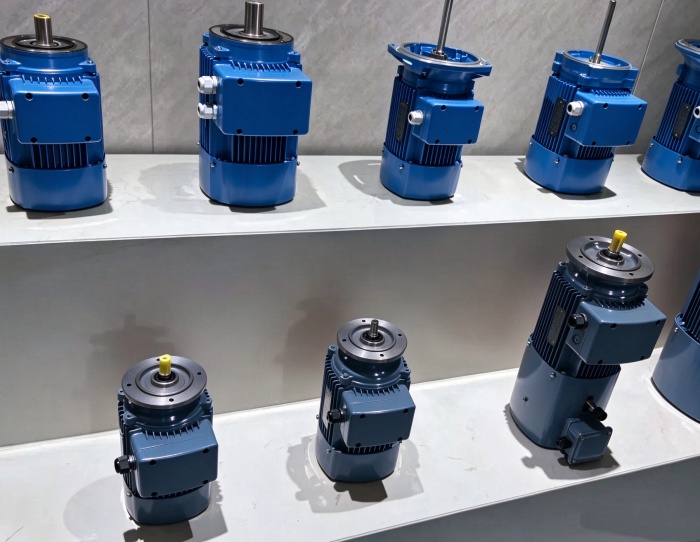

Installation dimensions of YS series vertical B5 large flange and B14 small flange motors

---

H1: YS series motor installation size procurement guide

Our YS series motors are designed for global standard compatibility. The following is a comprehensive installation size table covering frame sizes from 56M to 160L. Whether you are designing a new system or replacing a motor, this guide ensures a perfect installation.

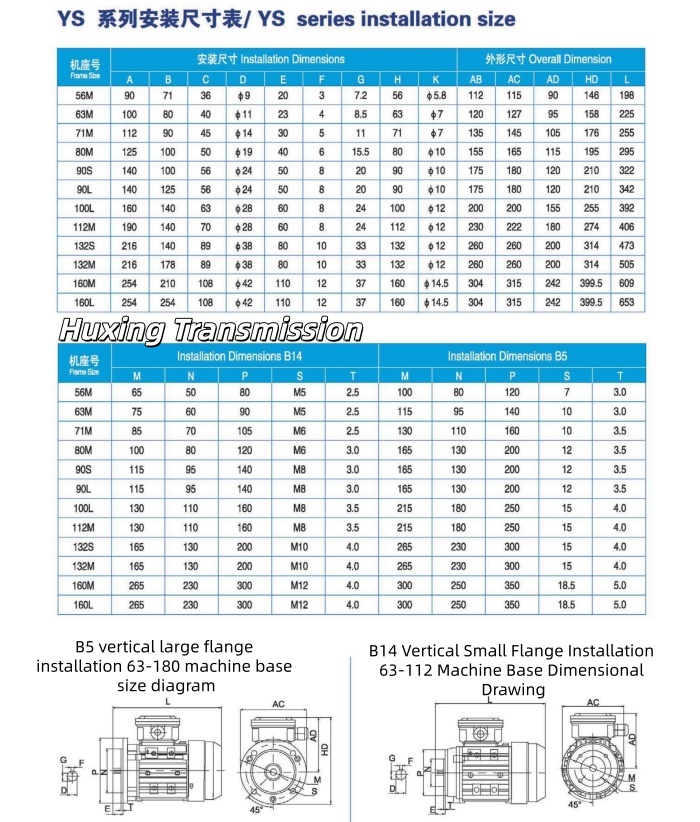

H2: Main Installation & Overall Dimensions (56M - 160L)

Engineers can easily match the mounting parameters. Key dimensions include the shaft diameter (D), mounting pitch (A, B), and overall length (L).

Frame Size	A	B	C	D (Shaft)	E	L (Overall)
56M	90	71	36	Φ9	20	198
71M	112	90	45	Φ14	30	255
80M	125	100	50	Φ19	40	295
90L	140	125	56	Φ24	50	342
100L	160	140	63	Φ28	60	392
132M	216	178	89	Φ38	80	505
160L	254	254	108	Φ42	110	653

Note: For detailed diagrams of B5 (63-180 frame) and B14 (63-112 frame), please refer to our technical PDF.
