IE2 series motor technical parameters - （IE2,LEVEL 3 )
H1: IE2 Series Motor Technical Parameters: Reliable IE2 Level 3 Efficiency
For applications where budget and reliability are paramount, the IE2 series motors (IE2, Level 3 efficiency) provide a perfect balance of cost-effectiveness and robust performance. Designed for 380V, 50Hz power supplies, this series covers a wide power range from 0.75kW to 22kW.

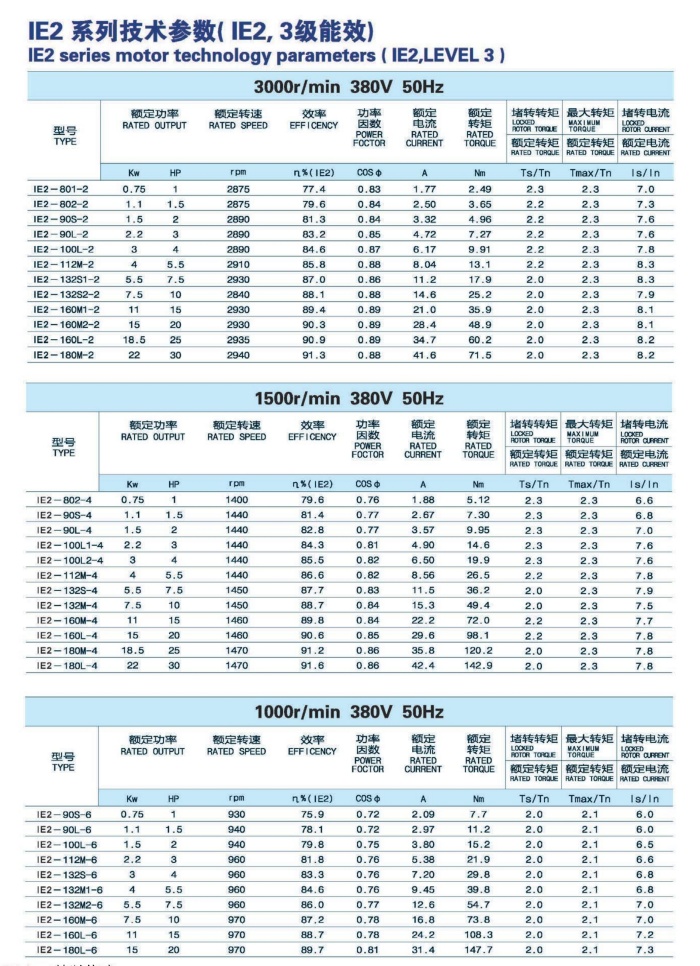

H2: 3000RPM / 380V / 50Hz Technical Specifications
The 2-pole IE2 motors are ideal for pumps, fans, and compressors. Here are the standard performance metrics:
| Type | Output (kW) | Speed (rpm) | Eff. (%) | Power Factor | Current (A) |
|---|---|---|---|---|---|
| IE2-80M1-2 | 0.75 | 2875 | 77.4 | 0.83 | 1.77 |
| IE2-90S-2 | 1.5 | 2890 | 81.3 | 0.84 | 3.32 |
| IE2-112M-2 | 4 | 2910 | 85.8 | 0.88 | 8.04 |
| IE2-132S1-2 | 5.5 | 2930 | 87.0 | 0.88 | 11.2 |
| IE2-160M1-2 | 11 | 2930 | 89.4 | 0.89 | 21.0 |
| IE2-180M-2 | 22 | 2940 | 91.3 | 0.88 | 41.6 |
H2: Asynchronous Motor 1500RPM & 1000RPM Performance Data
For standard industrial drives requiring medium speed and high starting torque, the 4-pole and 6-pole IE2 motors are highly dependable. The IE2-132S-4 (5.5kW, 1450rpm) offers a solid 87.7% efficiency, while the 6-pole IE2-180L-6 (15kW, 975rpm) delivers a massive 147.7 Nm rated torque for heavy machinery.
H3: Core Advantages of the IE2 Motor Series
Cost-Effective: Optimal pricing for price-sensitive markets without sacrificing quality.
Stable Operation: Consistent performance with a locked rotor torque (Ts/Tn) of 2.0 to 2.3.
Versatile Applications: Perfect for general-purpose industrial equipment.
