WP series worm gear reducer torque and speed ratio technical parameters

---

WPA/WPS/WPO/WPX/WPZ/WPW/WPZ series turbine worm reducer technical parameters

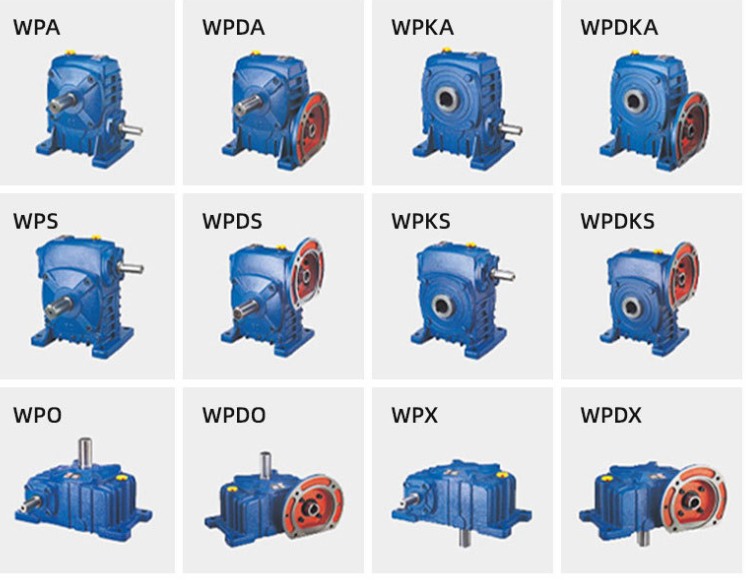

WP series worm gear reducer
WPA/WPS/WPO/WPX/WPZ/WPW/WPZ
Model	040~250
Ratio	Single stage: 5~60
	double stage: 200~900
Input Power	Single stage: 0.12~33.20kW
	double stage:0.12~11.71kW
Output Torque	Single stage: 6~6050N.m
	double stage: 63~6050 N.m
Material:	Housing: Die-Cast Iron cast
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Lubricate oil	Synthetic oil
Paint brand and color	Blue/Silver/Grey or on request
