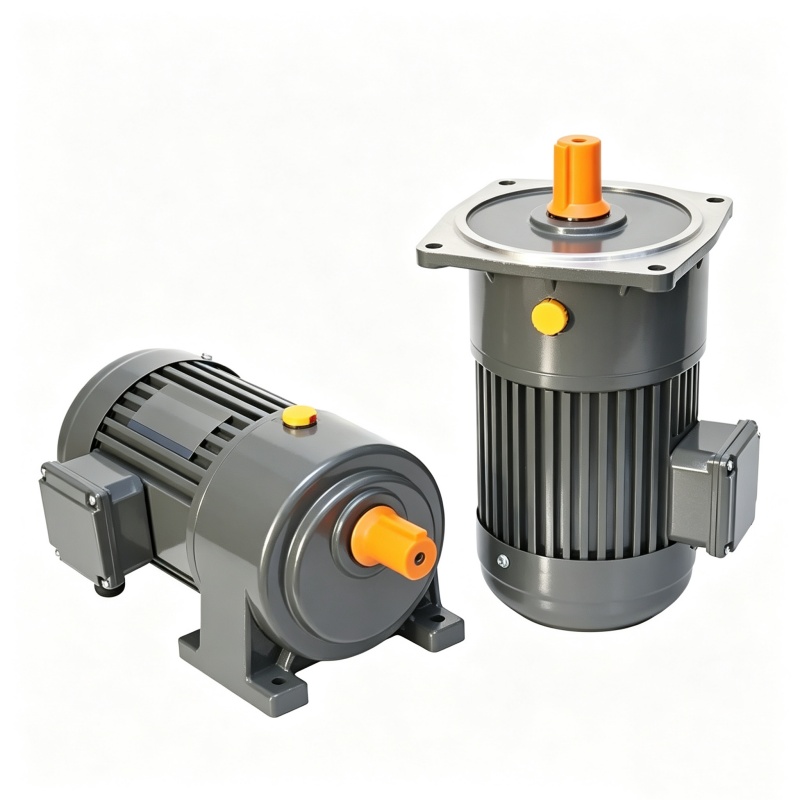

GH/GV/CH/CV small three-phase/single-phase vertical gear motor reducer parameters
Summary of Core Parameters for GH/GV/CH/CV Small Gear Motor Reducer
| Gearing Arrangement | Helical |
| Ratio | 5-1800 |
| Power | 100W, 200W, 400W, 750W, 1.5KW, 2.2KW, 3.7KW |
| Input Speed | 1400RPM, 1680 RPM |
| Output Speed | 0.83 - 360 RPM |
| Output Torque | 3 - 1300 N.m |
| Mounting | Foot mounted, Flange mounted. |
| Unit Net Weight | 6 - 72 KG |
| Gear Hardness | HRC58~62 |
| Motor | 3-phase, single-phase |
| Frequency & Voltage | 50/60 HZ, 220/380 V. |
| Application | Belt Conveyor, Material handling, Automatic production line, Package Machine, Husbandry etc. |
Key tips for selecting single-phase/three-phase reduction motors/gear motors
When selecting, the required torque should be calculated based on the operating conditions first, and then multiplied by a safety factor of 1.5~2.0 to ensure that the allowable torque of the selected model is greater than the calculated value; Vertical installation scenarios require additional confirmation that the axial force is within the allowable range of the model to avoid bearing overload damage.
