200W (1/4HP) Gear Motor Dimensions – CH22 / CV22 Series Horizontal & Vertical Mounting Drawing
200W (1/4HP) Gear Motor Dimensions – CH22 / CV22 Series Horizontal & Vertical Mounting Drawing

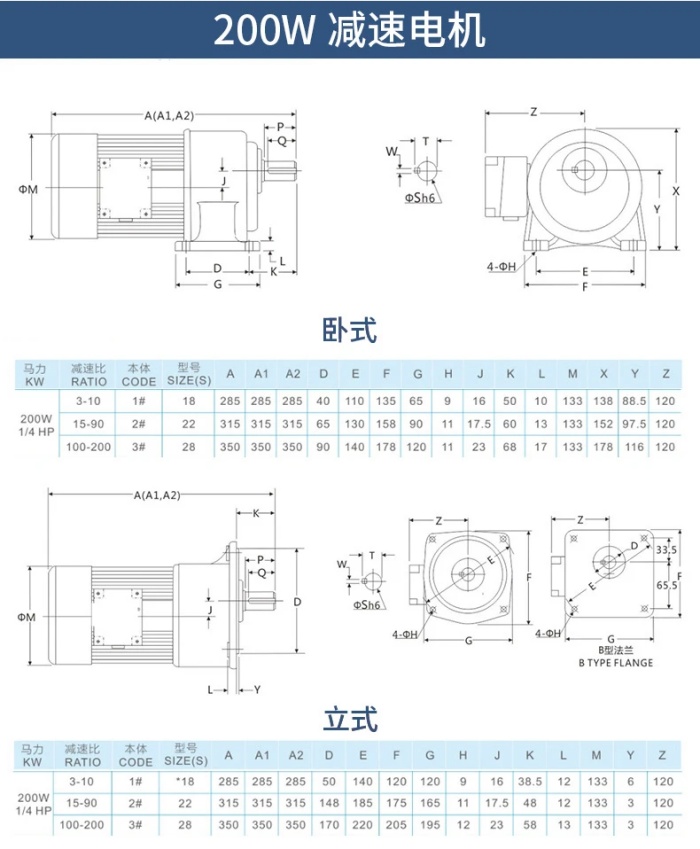

The CH22 (horizontal) and CV22 (vertical) series are 200W (1/4HP) helical gear motors, available in both foot-mounted and flange-mounted configurations. Both mounting variants are shown on a single combined installation drawing for easy comparison. This guide provides complete model codes, technical specifications, and key mounting dimensions.
H2: Model Code Breakdown
Horizontal example: CH22-200-40-S | Vertical example: CV22-200-40-S
| Segment | Value | Meaning |
|---|---|---|
| CH / CV | CH / CV | CH = Horizontal (foot), CV = Vertical (flange) |
| 22 | 22 | Output shaft diameter: 22mm |
| 200 | 200 | Motor power: 200W (1/4HP) |
| 40 | 40 | Reduction ratio: 1:40 |
| -S | S | 3-phase 220V/380V, 50/60Hz |
| Dimension | Value (mm) |
|---|---|
| Shaft Diameter (P) | 22 |
| Shaft Length (Q) | 40 |
| Keyway Width (W) | 7 |
| Key Size | 7 × 7 × 35 |
200W (1/4HP) power – medium-light duty applications
22mm output shaft – increased torque capacity over 18mm
Both horizontal & vertical options on one drawing
Hardened helical gearing – quiet, efficient operation
Sealed-for-life lubrication – no routine oil changes
Aluminum alloy housing – lightweight, good heat dissipation
Request the Complete Installation Drawing – Contact our engineering team with your required ratio and voltage. We will send you the combined CH/CV dimension sheet within 24 hours.
