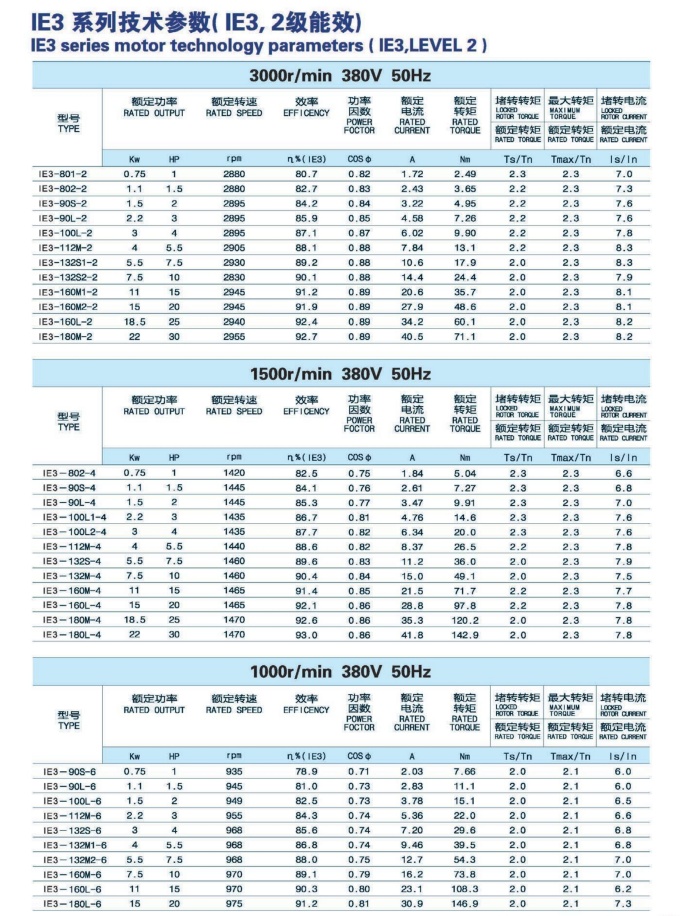

Technical parameters of 380V/50Hz asynchronous motor IE3 series
H1: IE3 Series Motor Technical Parameters: Premium IE3 Level 2 Efficiency
H2: Overview of Performance of Single phase AC Motor and Asynchronous Motor
3000RPM/380V/50Hz
The 2-pole IE3 motors deliver high speed and excellent power density. Below are key technical
parameters for standard B2B configurations:
| Type | Output (kW) | Speed (rpm) | Eff. (%) | Power Factor | Current (A) |
|---|---|---|---|---|---|
| IE3-80M1-2 | 0.75 | 2880 | 80.7 | 0.82 | 1.72 |
| IE3-90L-2 | 2.2 | 2885 | 85.9 | 0.85 | 4.58 |
| IE3-112M-2 | 4 | 2900 | 88.1 | 0.88 | 7.84 |
| IE3-132S2-2 | 7.5 | 2930 | 89.2 | 0.88 | 13.9 |
| IE3-160M1-2 | 11 | 2945 | 91.2 | 0.89 | 20.8 |
| IE3-180M-2 | 22 | 2955 | 92.7 | 0.89 | 40.5 |
H2: 1500RPM & 1000RPM High-Torque Solutions
For heavy-duty machinery requiring higher torque and lower speeds, our 4-pole (1500rpm) and 6-pole (1000rpm) IE3 motors offer reliable performance. For example, the IE3-180L-4 (22kW, 1470rpm) achieves an outstanding 93.0% efficiency rating with a locked rotor current of 7.8 Is/In, ensuring safe and stable startup under heavy loads.
Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
