Core dimensional parameters of WPDA series cast iron worm gear reducer
H1:WPDA cast iron horizontal reducer general basic parameters
The WPDA series is a fully cast iron worm gear reducer, with a standard ambient temperature range of -40 ℃~+40 ℃. The temperature rise of the oil tank during continuous operation is ≤ 80 ℃, and the maximum temperature of the lubricating oil inside the box is not allowed to exceed 100 ℃. It is recommended to use it under normal working conditions of 5 ℃~35 ℃ for the best heat dissipation and lubrication effects.
H2: WP series turbine gearbox core size parameter table
| Center Distance | |||
| 17 | 8 | ||
| 22 | 11 | ||
| 28 | 17 | ||
| 32 | 22 | ||
| 38 | 38 | ||
| 45 | 64 | ||
| 55 | 85 | ||
| 60 | 118 | ||
| 65 | 165 | ||
| 70 | 236 | ||
| WPDA250 | 250 | 90 | 396 |

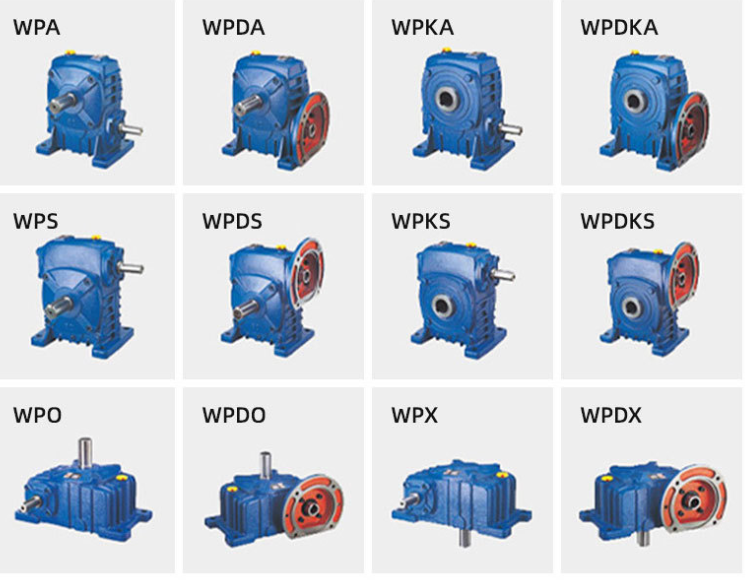

High quality cast iron WP turbine reducer gearbox picture
WP series cast iron turbine gearbox related articles: WPDA series reducer size installation diagram
