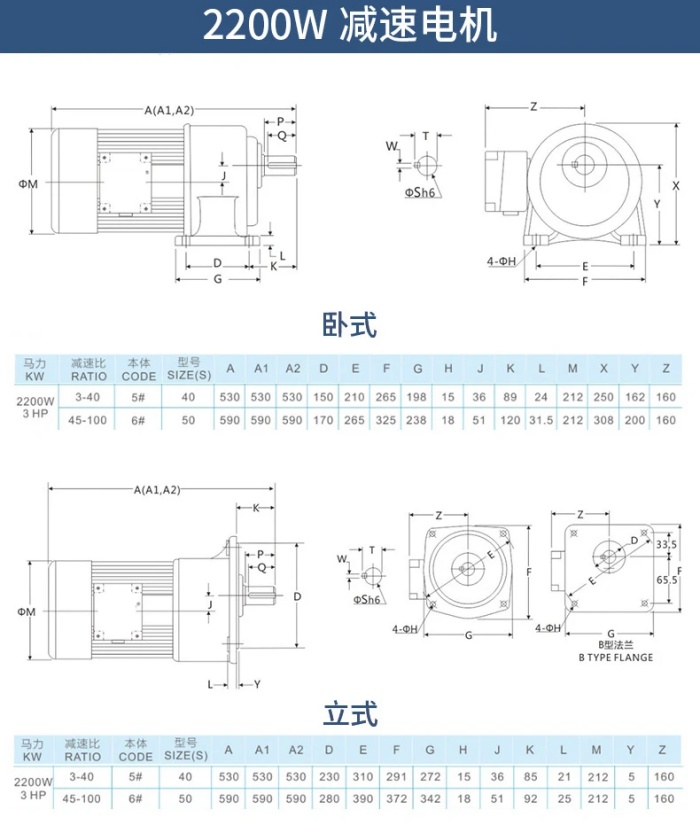

2200W (3HP) Gear Motor Dimensions – CH40 / CV40 Series Horizontal & Vertical Mounting Drawing
2200W (3HP) Gear Motor Dimensions - CH40/CV40 Series Horizontal and Vertical Installation Drawings
The CH40 (horizontal) and CV40 (vertical) series are 2200W (3HP) helical gear motors, available in two configurations: foot operated and flange operated. This guide provides complete model codes, technical specifications, and key installation dimensions.
H2:CH/CV series gearbox Gear motor Single Model Code Breakdown
Horizontal example: CH40-2200-40-S | Vertical example: CV40-2200-40-S
| Segment | Value | Meaning |
|---|---|---|
| CH / CV | CH / CV | CH = Horizontal (foot), CV = Vertical (flange) |
| 40 | 40 | Output shaft diameter: 40mm |
| 2200 | 2200 | Motor power: 2200W (3HP) |
| 40 | 40 | Reduction ratio: 1:40 |
| -S | S | 3-phase 220V/380V, 50/60Hz |
| Parameter | Value |
|---|---|
| Rated Power | 2200W (3HP) |
| Output Shaft Diameter | 40mm |
| Reduction Ratios | 3 : 1 to 1800 : 1 |
| Housing Material | Cast iron |
| Gear Type | Hardened helical gears |
| Insulation Class | Class F |
| Protection Class | IP54 |
Voltage | 3-phase 220V/380V, 50/60Hz |
| Dimension | Value (mm) |
|---|---|
| Shaft Diameter (P) | 40 |
| Shaft Length (Q) | 65 |
| Keyway Width (W) | 12 |
| Key Size | 12 × 8 × 70 |
H2: DC Motor Applications
Heavy-duty conveyor systems
Industrial mixers and agitators
Material handling equipment
Steel mill auxiliary drives
Bulk material handling
H2: Key Features
2200W (3HP) power – heavy-duty capability
40mm output shaft – high torque capacity
Cast iron housing – superior rigidity and heat dissipation
Both horizontal & vertical options on one drawing
Hardened helical gearing – quiet, efficient operation
Sealed-for-life lubrication – no routine oil changes
📩 Request the Complete Installation Drawing – Contact our engineering team with your required ratio and voltage. We will send you the combined CH/CV dimension sheet within 24 hours
