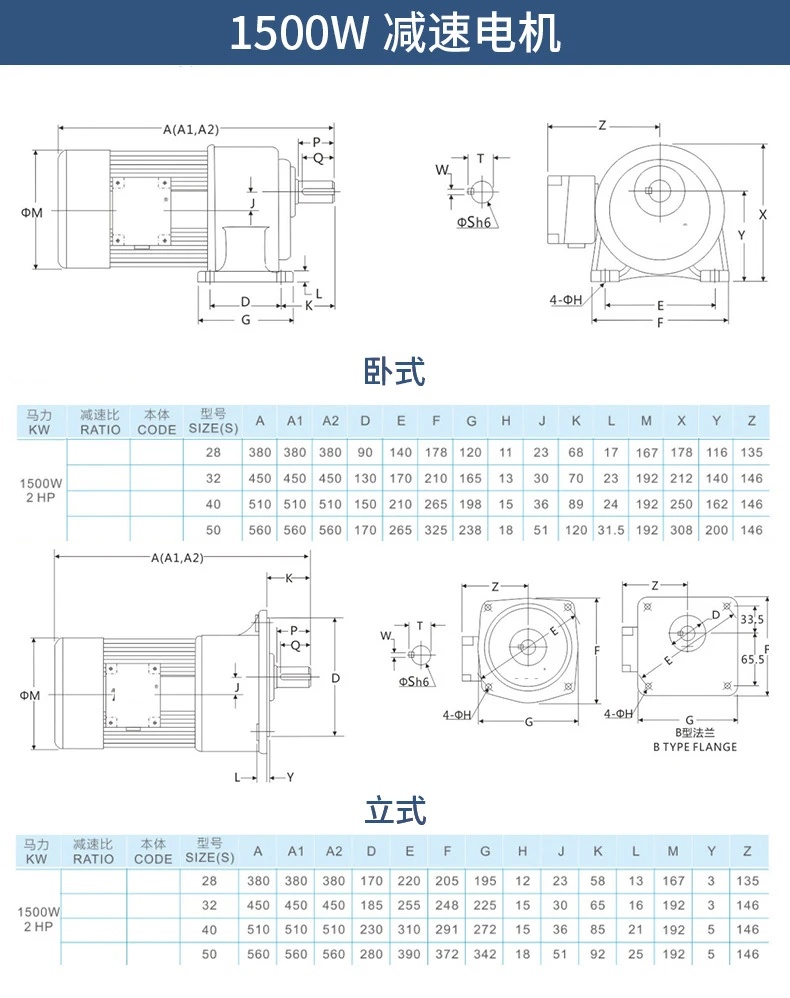

1500W (2HP) Gear Motor Dimensions – CH32 / CV32 Series Horizontal & Vertical Mounting Drawing
1500W (2HP) Gear Motor Dimensions - CH32/CV32 Series Horizontal and Vertical Installation Drawings
The CH32 (horizontal) and CV32 (vertical) series are 1500W (2HP) helical gear motors, available in two configurations: base mounted and flange mounted. This guide provides complete model codes, technical specifications, and key installation dimensions.
H2: DC Motor model Code Breakdown
Horizontal example: CH32-1500-30-S | Vertical example: CV32-1500-30-S
| Segment | Value | Meaning |
|---|---|---|
| CH / CV | CH / CV | CH = Horizontal (foot), CV = Vertical (flange) |
| 32 | 32 | Output shaft diameter: 32mm |
| 1500 | 1500 | Motor power: 1500W (2HP) |
| 30 | 30 | Reduction ratio: 1:30 |
| -S | S | 3-phase 220V/380V, 50/60Hz |
| Parameter | Value |
|---|---|
| Rated Power | 1500W (2HP) |
| Output Shaft Diameter | 32mm |
| Reduction Ratios | 3 : 1 to 1800 : 1 |
| Housing Material | Cast iron |
| Gear Type | Hardened helical gears |
| Insulation Class | Class F |
| Protection Class | IP54 |
| Voltage | 3-phase 220V/380V, 50/60Hz |
| Dimension | Value (mm) |
|---|---|
| Shaft Diameter (P) | 32 |
| Shaft Length (Q) | 55 |
| Keyway Width (W) | 10 |
| Key Size | 10 × 8 × 50 |
Heavy-duty conveyor systems
Industrial mixers and agitators
Material handling equipment
Food processing machinery
Steel mill auxiliary drives
H2: CH32 single-phase/three-phase AC horizontal motor Key Features
1500W (2HP) power – heavy-duty capability
32mm output shaft – high torque capacity
Cast iron housing – superior rigidity and heat dissipation
Both horizontal & vertical options on one drawing
Hardened helical gearing – quiet, efficient operation
Sealed-for-life lubrication – no routine oil changes
📩 Request the Complete Installation Drawing – Contact our engineering team with your required ratio and voltage. We will send you the combined CH/CV dimension sheet within 24 hours.
