Huxing GS Series Worm Gear Helical Gear Reducer

---

Huxing GS Series Worm Gear Helical Gear Reducer

1. Excellent Reduction Capacity: The combined transmission design offers a wide reduction ratio range, achieving significant speed reduction and torque increase in a small size. It is suitable for low-speed, stable transmission conditions, with flexible and versatile transmission ratios.

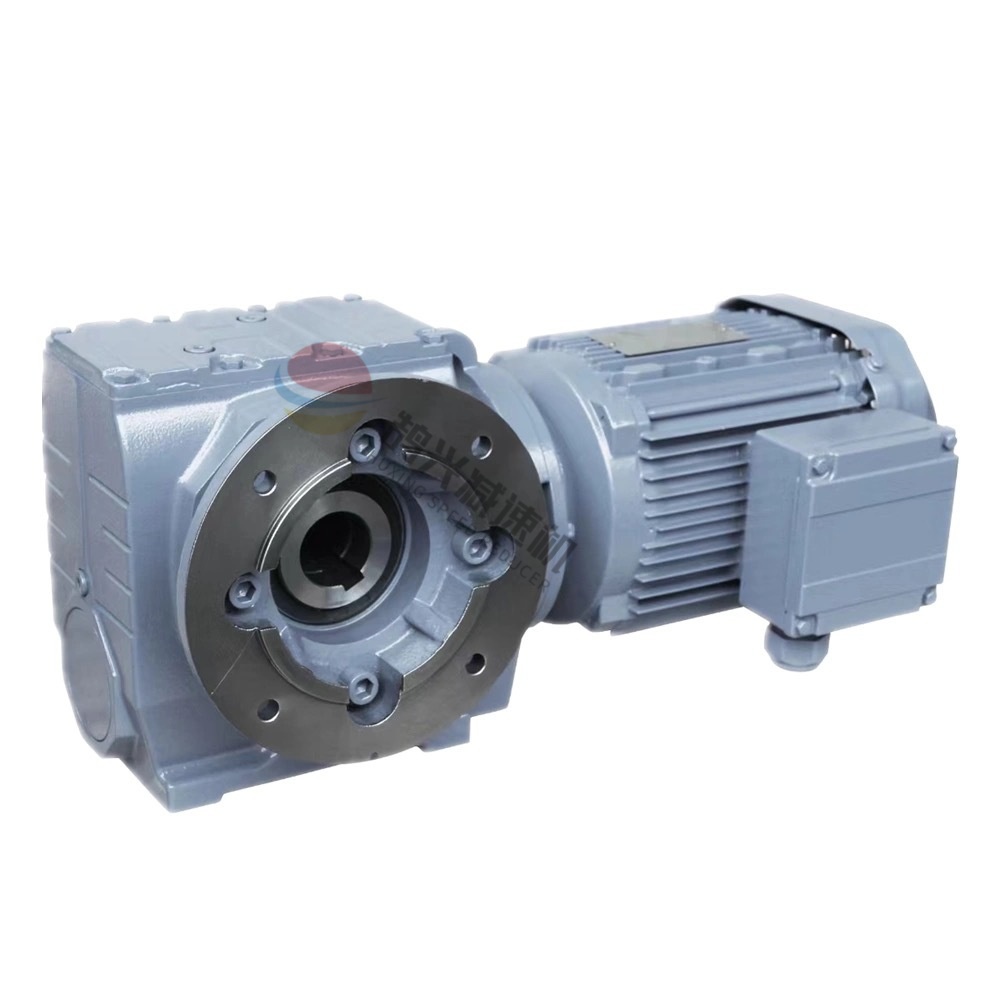

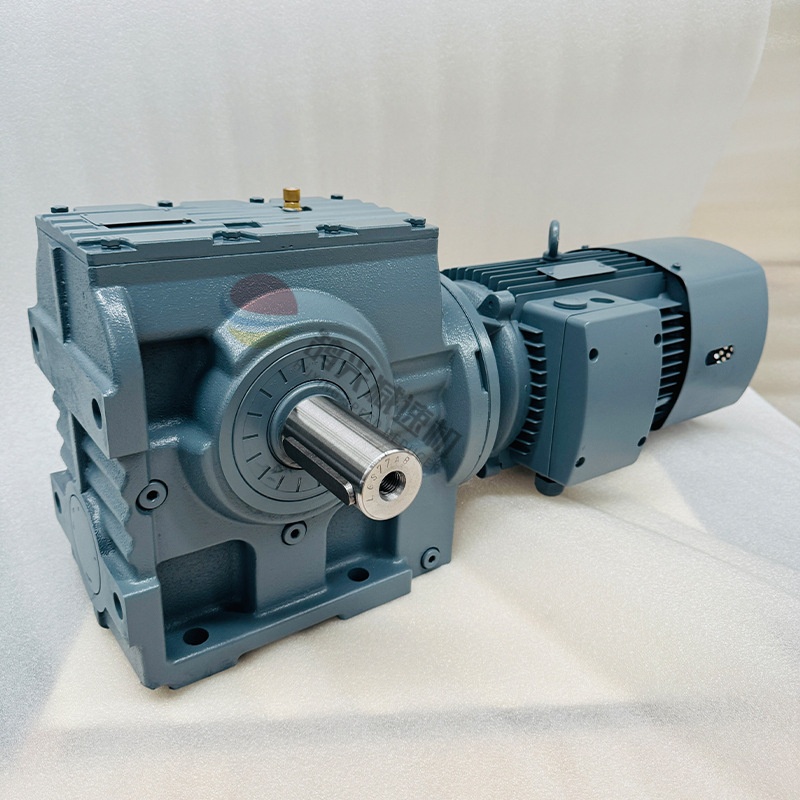

2. Self-Locking Performance for Safer Operation: The inherent self-locking characteristic of the worm gear prevents slippage and reverse rotation during shutdown, ensuring reliable operation in lifting, conveying, and hoisting equipment and avoiding the safety hazards of equipment rebound.

3. Compact and Lightweight Design for Confined Installation Spaces: The streamlined and compact design saves space. Multiple installation options, including flanges and feet, allow for easy assembly of irregularly shaped equipment and compact frames.

4. Quiet and Smooth Operation, Leak-Proof and Durable: The smooth tooth meshing results in low operating vibration and noise. The precision sealing structure prevents oil leakage, is corrosion-resistant and wear-resistant, and has a low failure rate over long-term operation.

Exclusive composite gear machining technology ensures strong overall compatibility and can replace similar models on the market.

This product solves common industry problems of ordinary speed reducers, such as lack of self-locking, large size, unstable low-speed transmission, and frequent oil leaks. It offers excellent cost-effectiveness and is a globally recognized and widely used choice across multiple industries.

Product Overview:

1. The GS series speed reducer integrates helical gears and worm gears into a single transmission, improving torque and efficiency.

2. The textured surface of the machine body provides heat dissipation, strong vibration absorption, low temperature rise, and low noise.

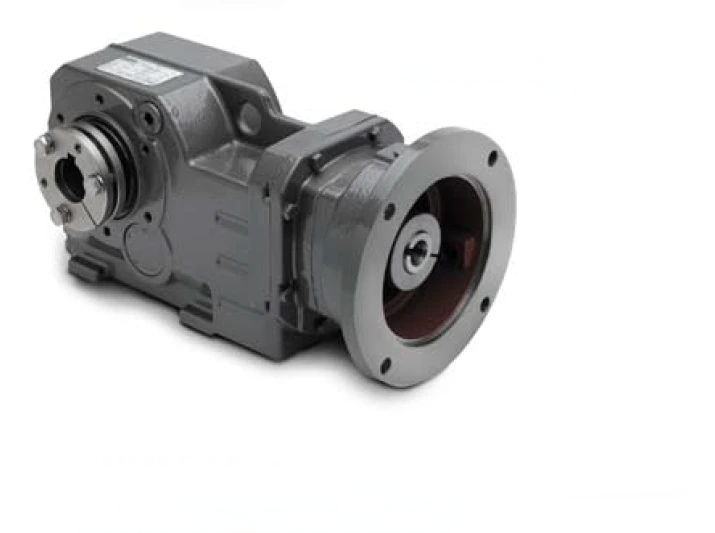

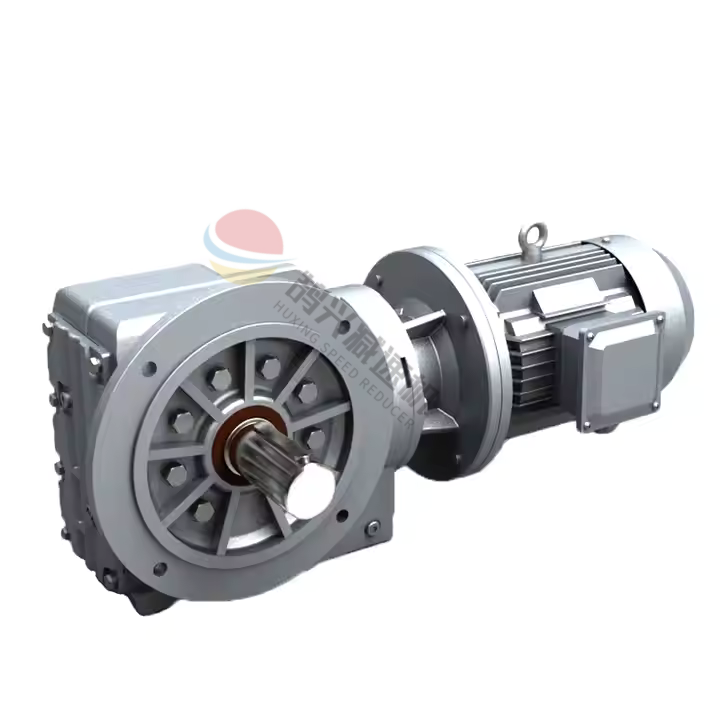

3. The GS series helical gear and worm gear reducer can be connected to various reducers and configured with various types of motor drives, and can be installed in a 90-degree transmission operation position.

4. Key components of the GS helical gear reducer are made of wear-resistant materials and undergo heat treatment, featuring high machining precision, smooth transmission, small size, high load capacity, and long service life.

5. The helical gear reducer can be configured with various types of motors.

Performance Characteristics:

1. The combination of helical gears and worm gears results in a compact structure and a large reduction ratio.

2. Installation methods: foot mounting, hollow shaft mounting, flange mounting, torque arm mounting, and small flange mounting. 3. Input Method: Direct motor connection, motor belt connection, or input shaft/flange connection.

4. Average Efficiency: 99% for reduction ratios of 9.5-69.39; 62% for 90.43-288; 59% for GS/R combination.

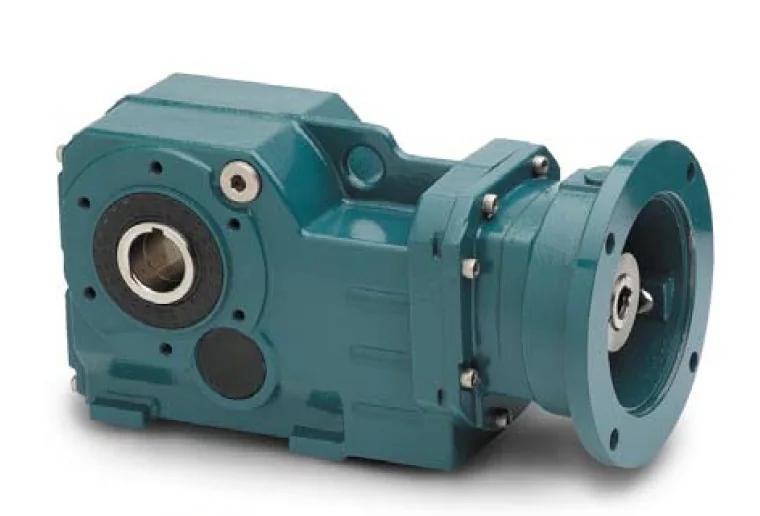

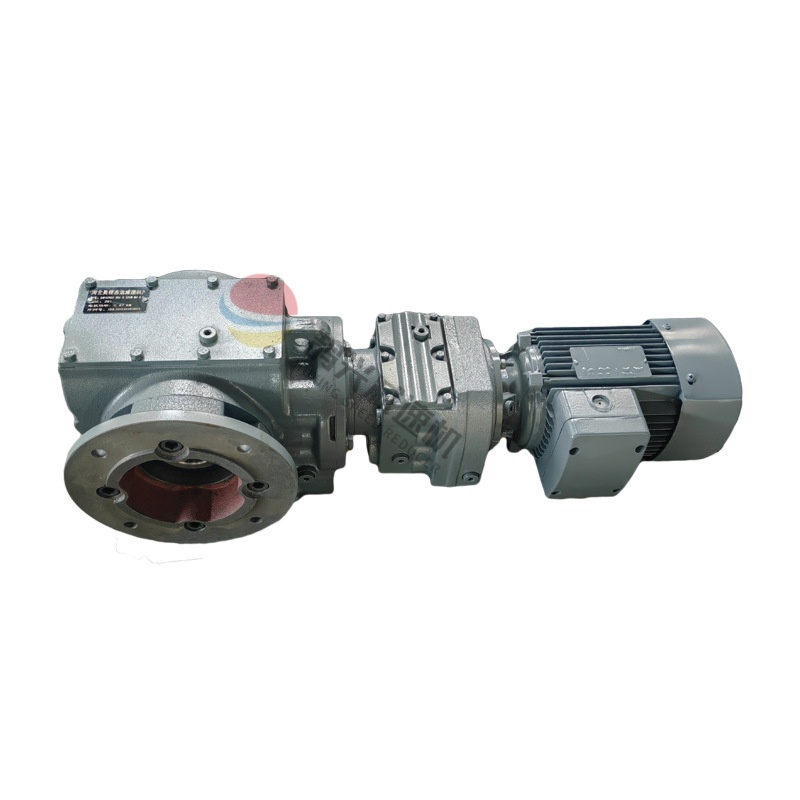

5. Higher speed ratios can be achieved when combined with the R series.

Technical Parameters:

Speed Ratio Range: Basic type 9.96～244.94, GS/R series combination can reach 8608

Torque Range: 43～4200 Nm

Power Range: 0.18～22 kW

Structure Type: GS - Shaft extension connection; GSF - Shaft extension, flange mounting

GS...GS - Indicates shaft input GSA - Shaft-mounted connection

GSAF - Shaft-mounted, flange-mounted

Model designation: GS series helical gear worm gear reducer model designation

Basic models: Solid shaft output foot mounting type: GS39, GS49, GS59, GS69, GS99, GS89, GS99 Solid shaft with output flange mounting type: GSF39, GSF49, GSF59, GSF69, GSF99, GSF89, GSF99 Hollow shaft output mounting type: GSA39, GSA49, GSA59, GSA69, GSA99, GSA89, GSA99 Hollow shaft output with output flange mounting type: GSAF39, GSAF49, GSAF59, GSAF69, GSAF99, GSAF89, GSAF99 Hollow shaft output with torque arm mounting type: G SAT39, GSAT49, GSAT59, GSAT69, GSAT99, GSAT89, GSAT99 Hollow shaft output with small flange mounting type: GSAZ39, GSAZ49, GSAZ59, GSAZ69, GSAZ99, GSAZ89, GSAZ99 Solid shaft input foot mounting type: GSGS39, GSGS49, GSGS59, GSGS69, GSGS99, GSGS89, GSGS99 Solid shaft output foot mounting combination type: GS39R19, GS49R19, GS59R19, GS69R39, GS99R39, GS89R59, GS99R59 Hollow shaft input foot mounting type: GSAGS39, GSAGS49, GSAGS59, GSAGS69 Solid shaft output foot mounting type: GSAGS99, GSAGS89, GSAGS99; Solid shaft input flange output mounting type: GSA39R19, GSA49R19, GSA59R19, GSA69R39, GSA99R39, GSA89R59, GSA99R59; Solid shaft input flange output mounting type: GSFGS39, GSFGS49, GSFGS59, GSFGS69, GSFGS99, GSFGS89, GSFGS99; Output with flange foot mounting type: GSF39R19, GSF49R19, GSF59R19, GSF69R39, GSF99R39, GSF89R59, GSF99R59; Solid shaft input with flange mounting type: GSAFGS39, GSAFGS49, GSAFGS5 9. GSAFGS69, GSAFGS99, GSAFGS89, GSAFGS99 Hollow output shaft with output flange combination type: GSAF39R19, GSAF49R19, GSAF59R19, GSAF69R39, GSAF99R39, GSAF89R59, GSAF99R59 Hollow output shaft with small flange mounting type: GSAZGS39, GSAZGS49, GSAZGS59, GSAZGS69, GSAZGS99, GSAZGS89, GSAZGS99 Hollow output shaft with small flange mounting combination type: GSAZ39R19, GSAZ49R19, GSAZ59R19, GSAZ69R39, GSAZ99R39, GSAZ89R59, GSAZ99R59
