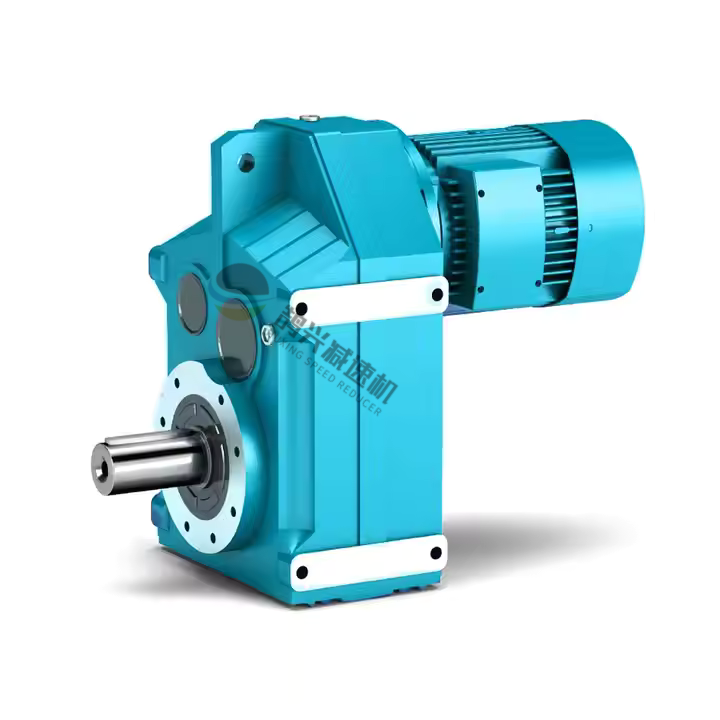

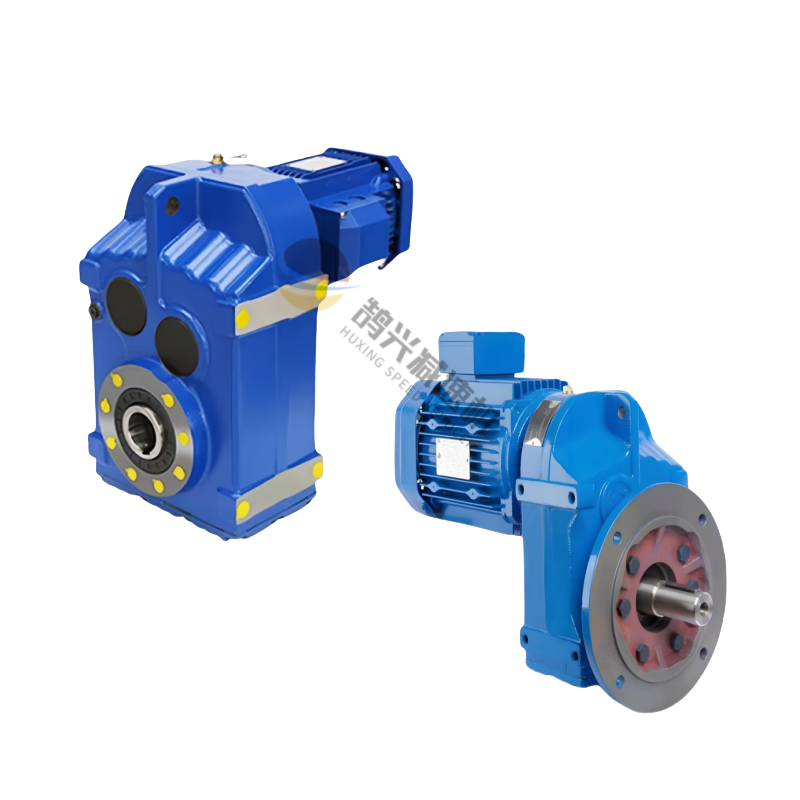

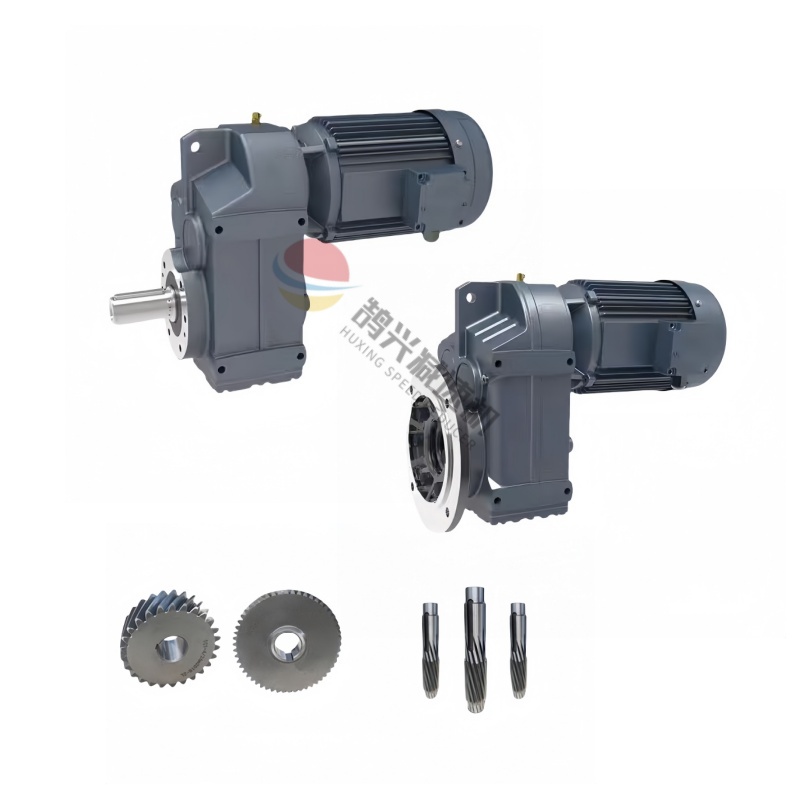

Huxing GF Series Parallel Shaft Helical Gear Reducer

Industrial-grade F series parallel shaft reducer
quenched high-hardness alloy gear
anti-fatigue robust housing

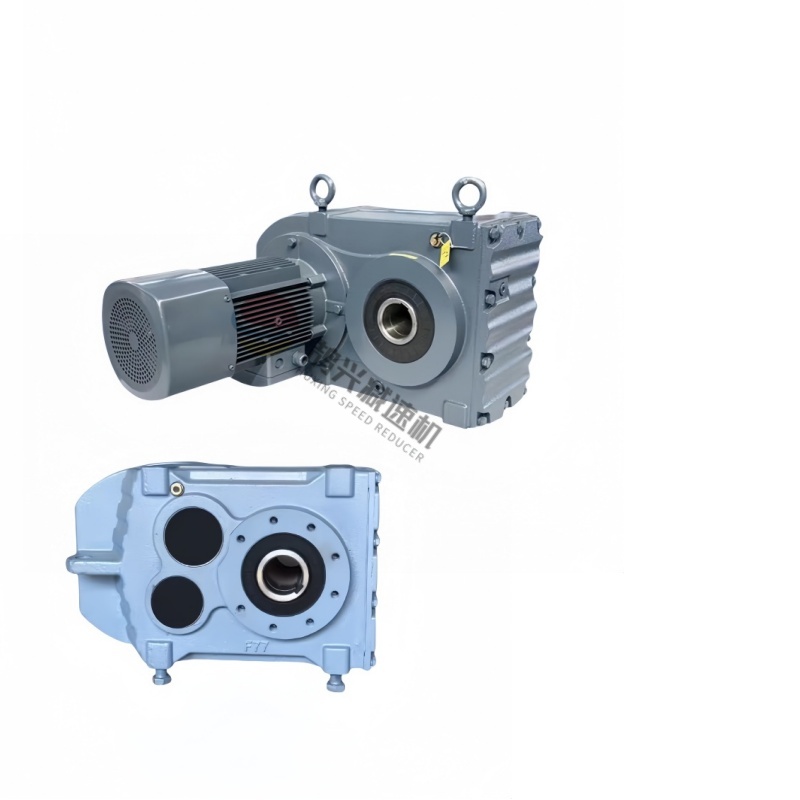

minimal temperature rise
long continuous service life

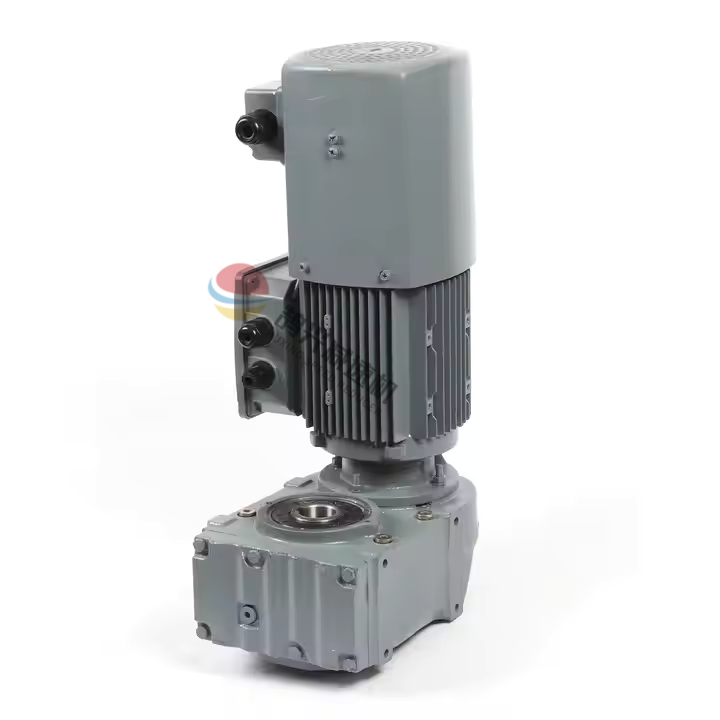

optional ATEX
custom specs for food, mining and chemical processing machinery

Core Advantages

1. Parallel Shaft Structure, Highly Adaptable Transmission Layout

The parallel shaft layout design ensures a neat transmission line, adaptable to various horizontal equipment assembly scenarios, with diverse installation methods, easily matching various mechanical structure layouts.

2. Multi-stage Helical Gear Meshing, Wide Speed Ratio Range

Precision helical gear meshing provides a rich selection of speed ratios and flexible speed adjustment, meeting the needs of different working conditions such as low-speed high torque and high-speed smooth transmission.

3. High-Strength Forged Material, Resistant to Load and Damage

Hardened tooth surface treatment makes the tooth body wear-resistant and pressure-resistant, with outstanding load-bearing capacity. It is not prone to tooth breakage or deformation during long-term continuous operation, suitable for conventional heavy-duty scenarios such as assembly lines, light industry, and warehousing.

4. Low-loss transmission, energy saving and economical. High meshing precision, low power loss, excellent operating efficiency, effectively reducing power consumption costs. Excellent sealing technology eliminates oil leakage problems.

Self-developed gear machining technology ensures robust overall machine rigidity. High standardization of parts allows for replacement of mainstream products of the same specifications on the market.

Effectively solves problems such as limited speed change, easy oil leakage, and high long-term operating losses in conventional models. Stable and reliable performance, universally applicable both domestically and internationally, a high-performance industrial transmission option.

Product Overview:

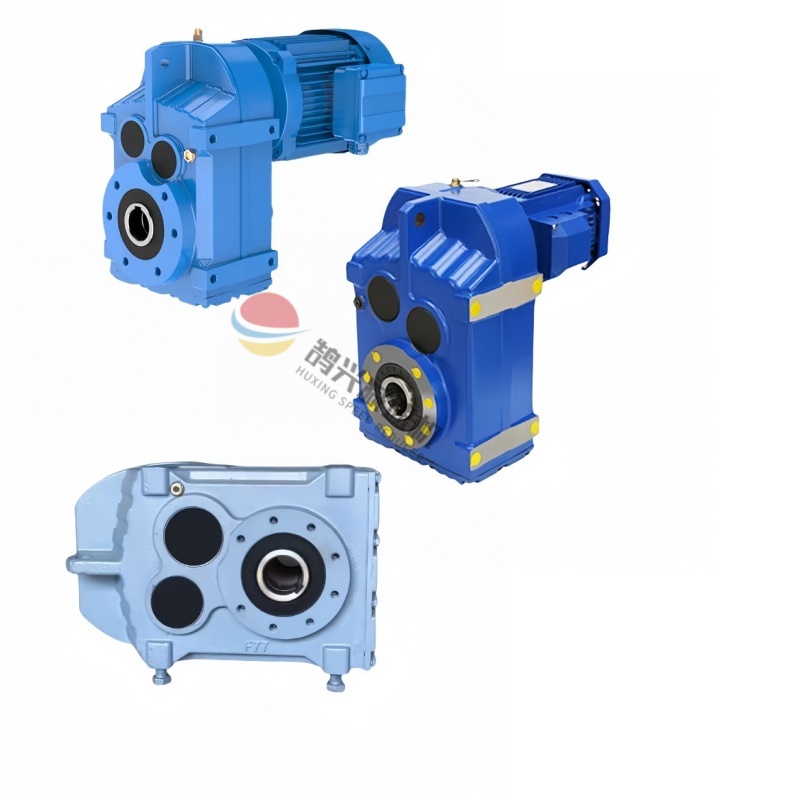

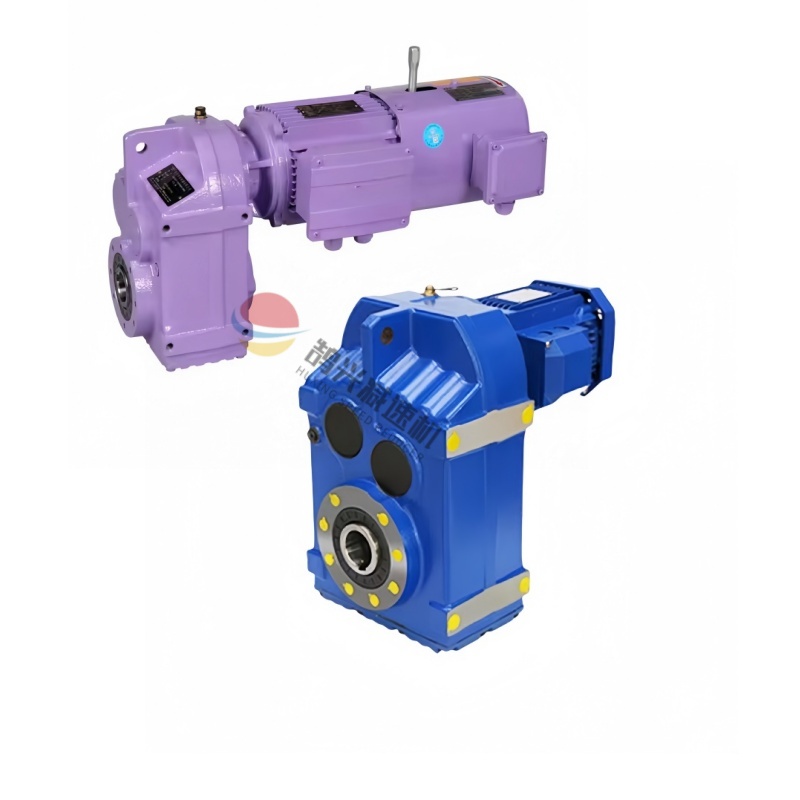

1. Space-saving, reliable and durable, high overload capacity, power up to 90KW or more.

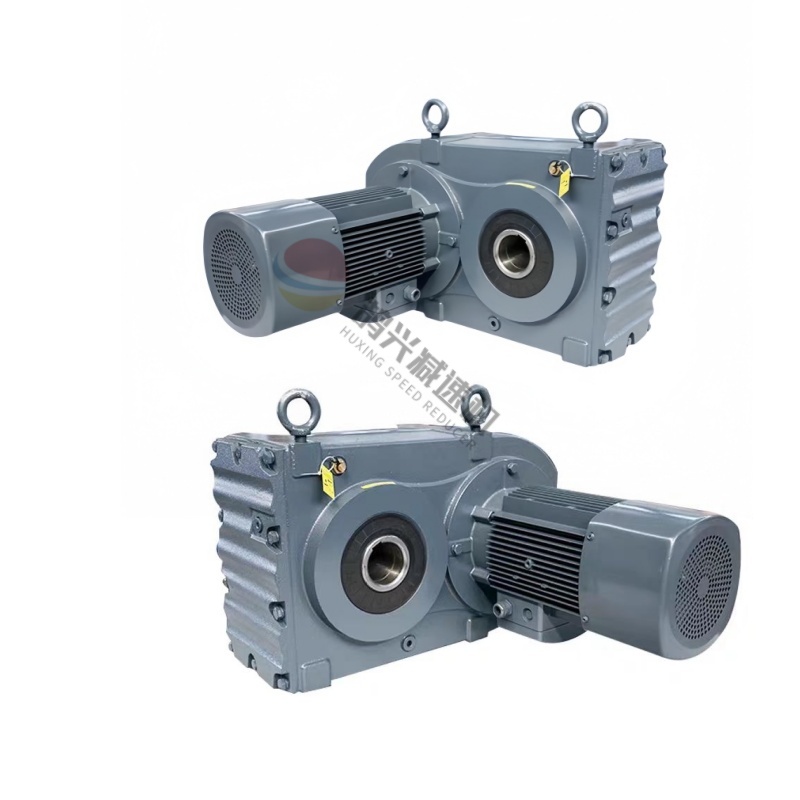

2. GF series parallel shaft helical gear reducers have low energy consumption and an efficiency of over 95%.

3. Parallel shaft helical gear reducers have low vibration and low noise. They are made of high-strength steel, with a rigid cast iron housing, and the gear surfaces undergo high-frequency heat treatment.

Performance Characteristics:

1. Parallel output, compact structure, high torque transmission, smooth operation, low noise, and long service life.

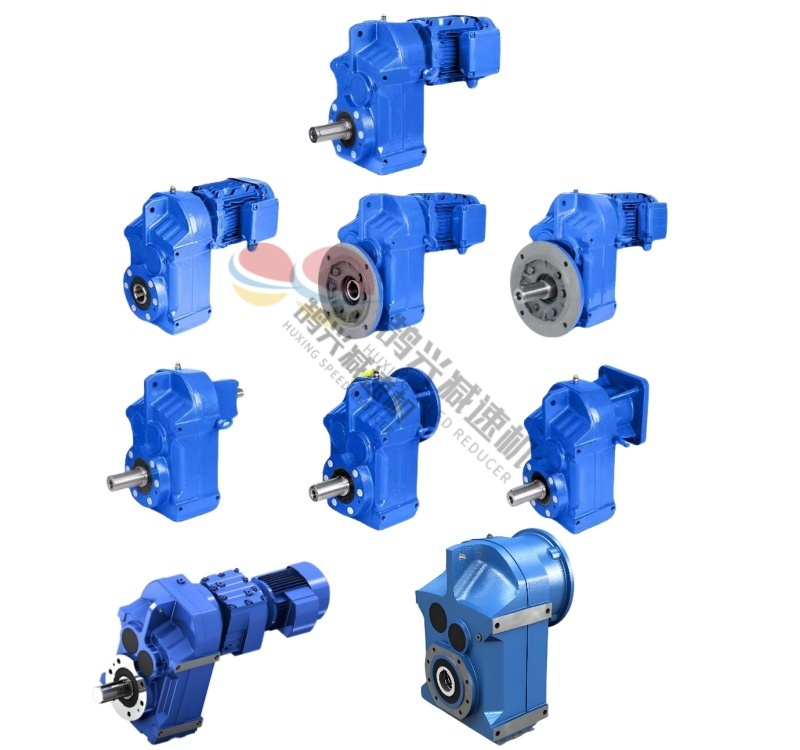

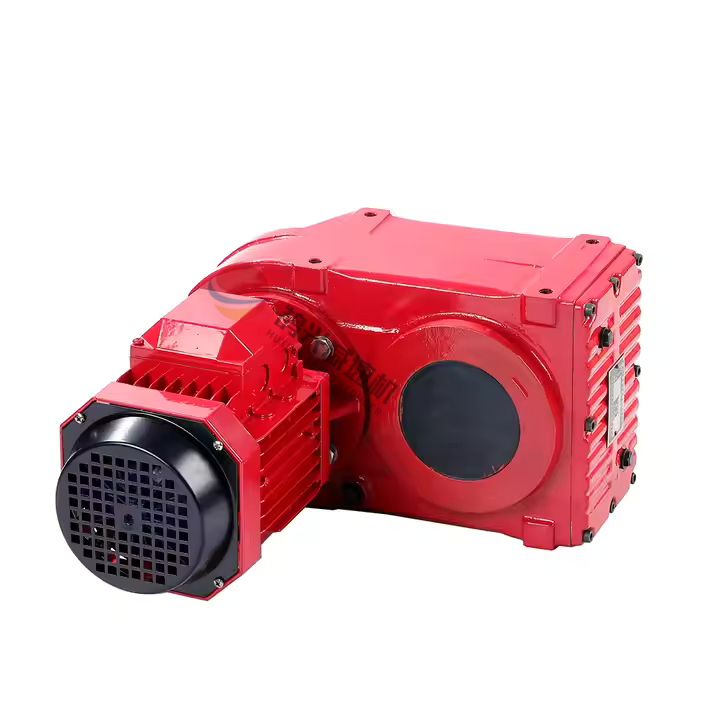

2. Installation methods: Base mounting, hollow shaft mounting, flange mounting, torque arm mounting, small flange mounting.

3. Basic model: Two-stage input and output rotation directions are the same; three-stage rotation directions are opposite. For GF/R series combinations, please consult separately.

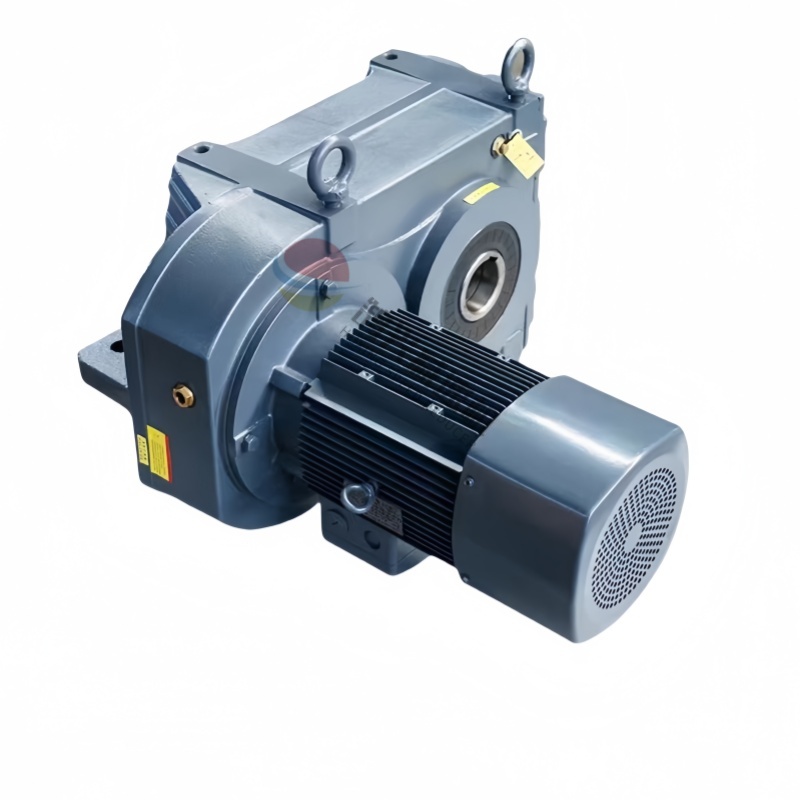

4. Output method: Hollow shaft output or solid shaft output.

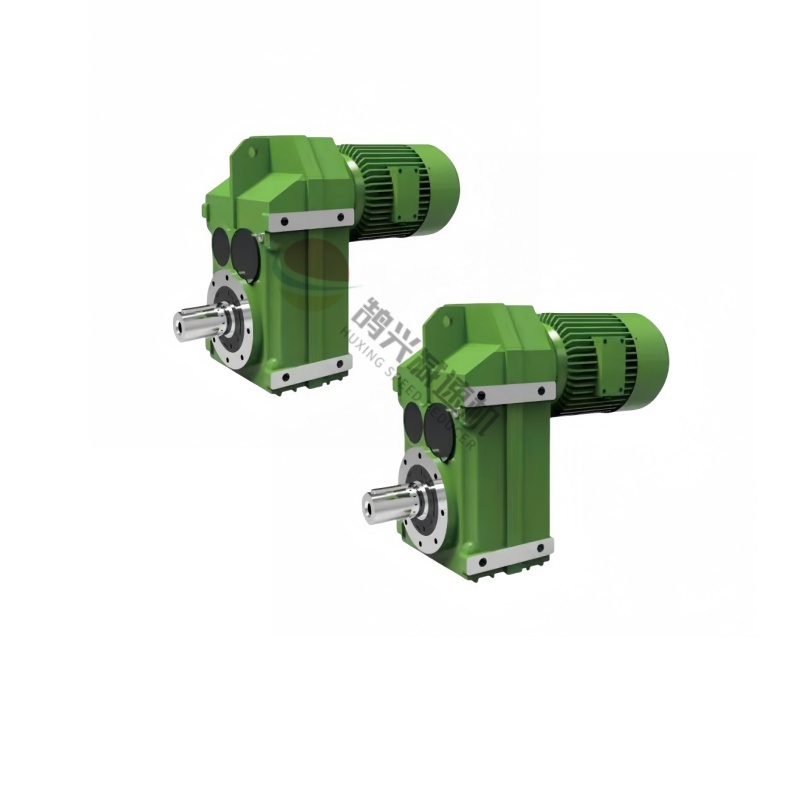

5. Average efficiency: Two-stage: 96%; Three-stage: 94%; GF series/R series combination: 85% average efficiency.
