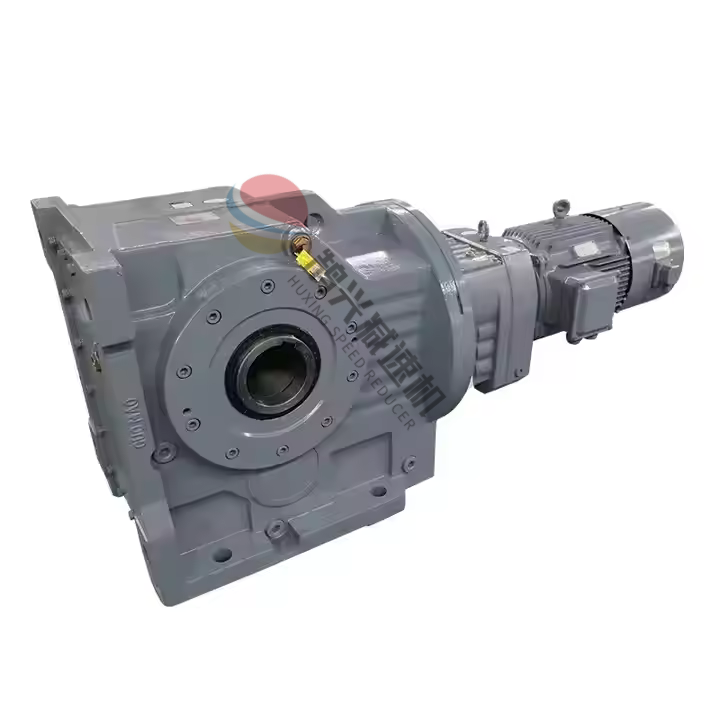

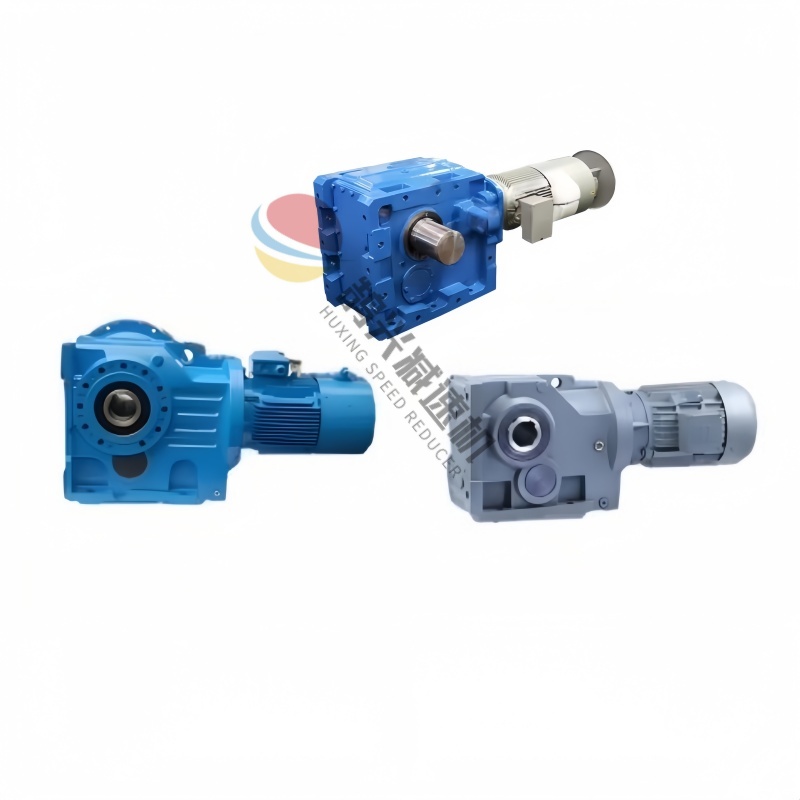

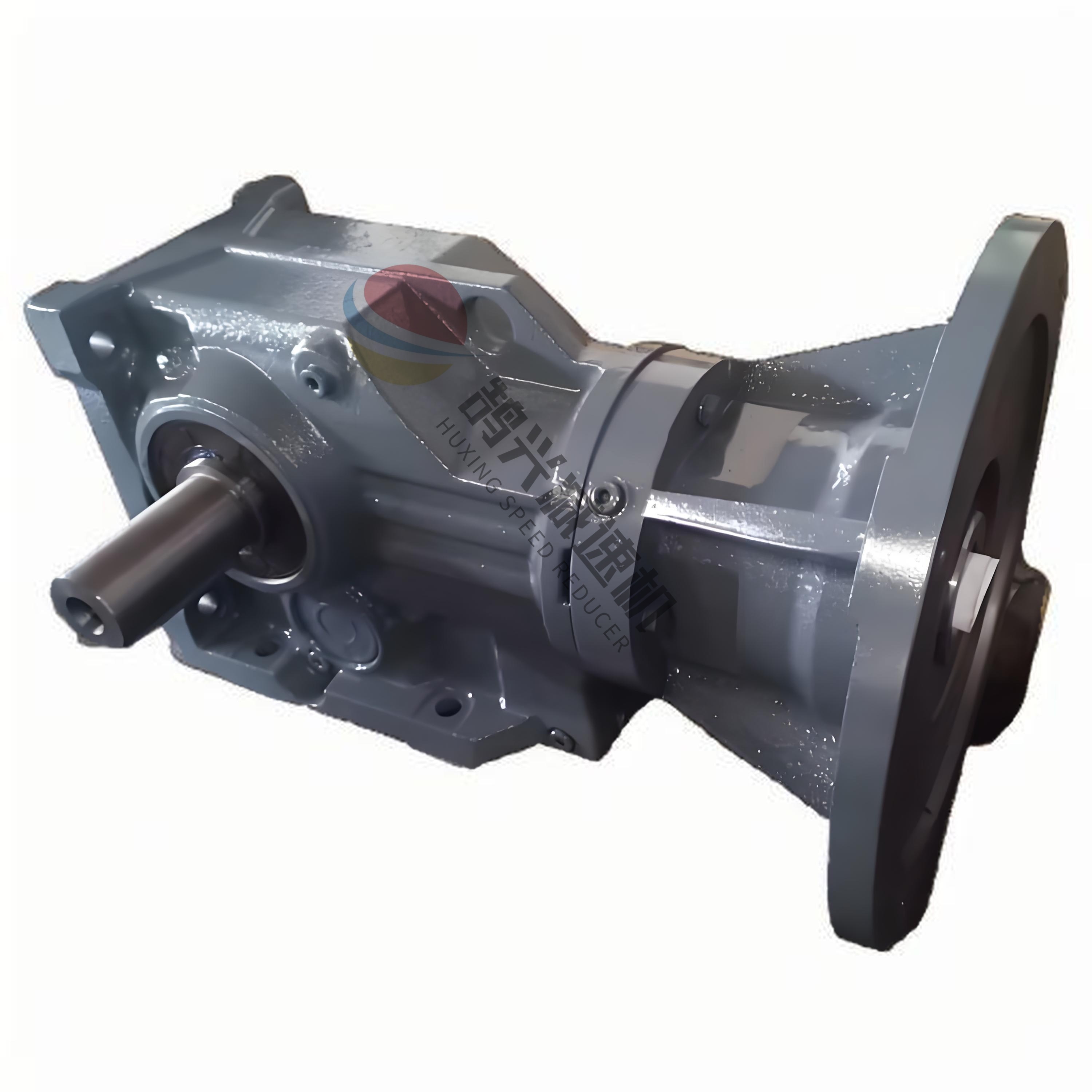

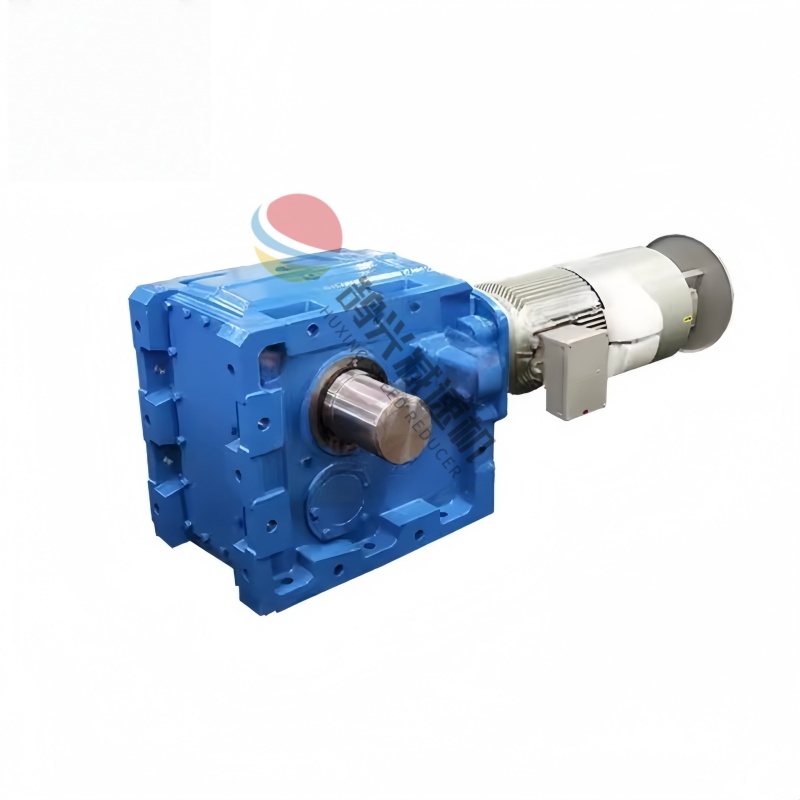

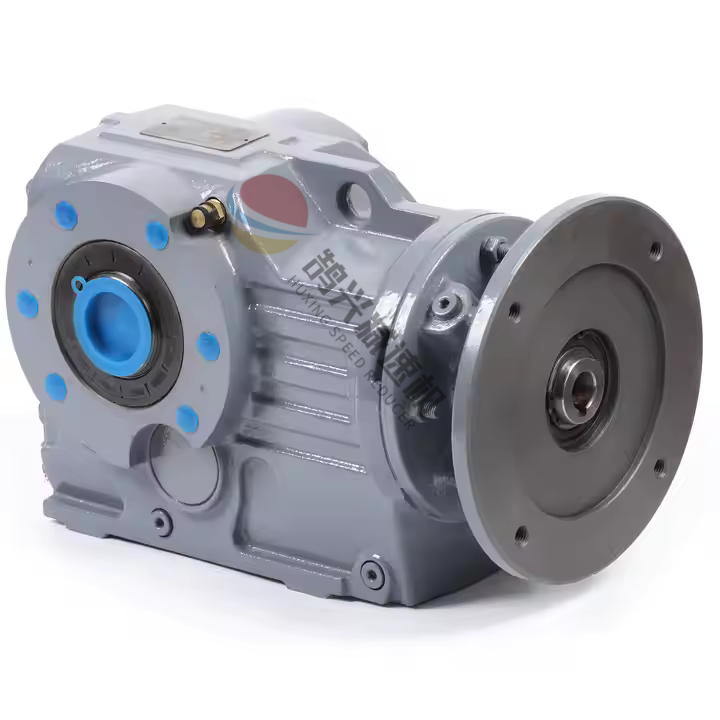

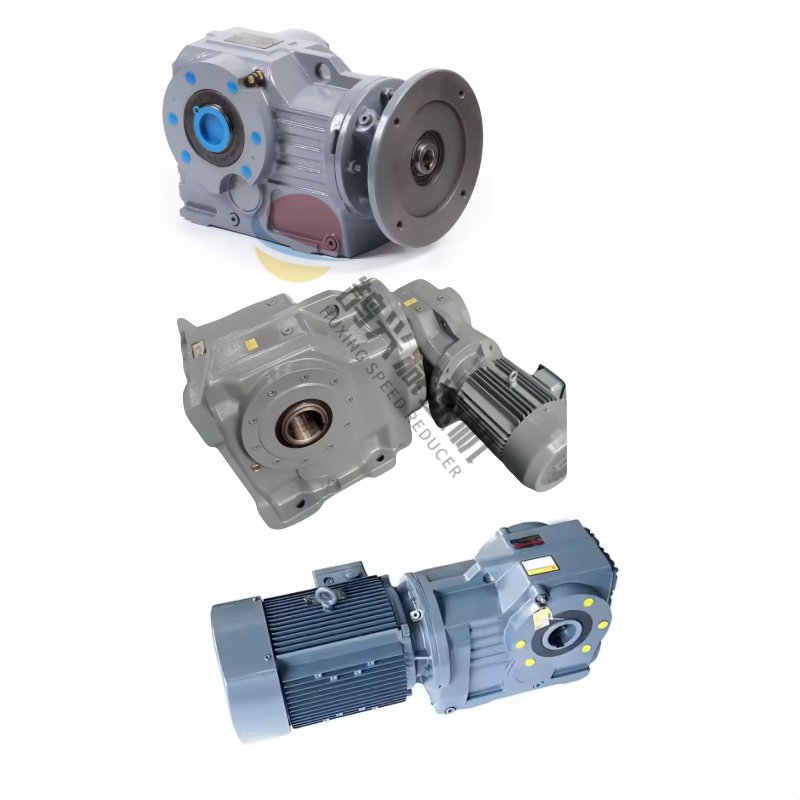

Huxing GK Series Screw Bevel Gear Reducers

---

Features of Huxing GK Series Screw Bevel Gear Reducers:

1. Right-Angle Integrated Transmission, Flexible Installation and Space Saving: The right-angle steering structure of the spiral bevel gears is suitable for corners and narrow side installation scenarios. Multiple installation styles can be customized to fit various non-standard equipment layouts, breaking the limitations of conventional transmission installations.

2. High-Hardness Forged Tooth Surface, Doubled Heavy-Duty Load Capacity: Precision-ground bevel teeth with high surface hardness ensure uniform meshing force and significantly superior impact and overload resistance compared to similar products. Stable and smooth operation is guaranteed in heavy-duty conditions such as mining, hoisting, and conveying.

3. Smooth Transmission and Low Noise, Zero Failures in Long-Term Operation: Smooth tooth meshing results in low vibration and noise. Sealing technology prevents oil leakage, ensuring continuous operation in all weather conditions without damage and significantly reducing maintenance downtime.

4. High energy efficiency and low loss, reducing energy consumption and operating costs. Low transmission loss, abundant and stable power output, energy consumption superior to comparable models, effectively saving electricity costs in the long term, and compatible with various global applications.

What industry pain points does Huxing product solve? Self-developed bevel gear forming process, strong parts versatility, compatible with mainstream brand models; wide torque range, supports on-demand customization, and rigorous quality control at the factory.

Perfectly solves common problems of insufficient torque, limited steering, easy oil leakage, and easy damage under heavy loads in the market. Robust and durable, universally applicable to global working conditions, it is the best choice for high-performance, cost-effective heavy-duty transmission.

Product Overview:

1. GK series gear reducers are space-saving, reliable and durable, with high overload capacity and power exceeding 200GKW.

2. Low energy consumption, reducer efficiency exceeding 95%.

3. GK series spiral bevel gear reducers have low vibration, low noise, and high energy efficiency.

4. Made of high-strength steel, with a rigid cast iron housing, and gear surfaces undergo high-frequency heat treatment. 5. After processing, the reducer, which forms a helical gear, bevel gear, or conical gear transmission assembly, is equipped with various types of motors, ensuring the quality of the geared motor products.

Performance Characteristics:

1. Vertical output, compact structure, hardened tooth surface transmits large torque, smooth operation, low noise, and long service life.

2. Installation methods: foot mounting, hollow shaft mounting, flange mounting, torque arm mounting, small flange mounting.

3. Input methods: direct motor connection, motor belt connection, or input shaft/connecting flange input.

4. Output methods: hollow shaft output or solid shaft output, with an average efficiency of 94%.

5. Can achieve a larger speed ratio when combined with the GR series.

Technical Parameters:

Speed ratio range: basic type 5.36～199.39, GK series/R series combination type can reach 32625

Torque range: 200～50000 Nm

Power range: 0.18～200 GKW Base Size: 39～169

Basic Models: Solid Shaft Output Foot Mounting Type: GK39, GK49, GK59, GK69, GK99, GK89, GK99, GK109, GK129, GK159, GK169

Solid Shaft with Output Flange Mounting Type: GKF39, GKF49, GKF59, GKF69, GKF99, GKF89, GKF99, GKF109, GKF129 GKF159

Hollow shaft output mounting type: GKA39, GKA49, GKA59, GKA69, GKA99, GKA89, GKA99, GKA109, GKA129, GKA159

Hollow shaft output with output flange mounting type: GKAF39, GKAF49, GKAF59, GKAF69, GKAF99, GKAF89, GKAF99, GKAF109, GKAF129, GK AF159

Hollow Output Shaft with Support Arm Mounting Type: GKAT39, GKAT49, GKAT59, GKAT69, GKAT99, GKAT89, GKAT99, GKAT109, GKAT129, GKAT159

Hollow Output Shaft with Small Flange Mounting Type: GKAZ39, GKAZ49, GKAZ59, GKAZ69, GKAZ99, GKAZ89, GKAZ99, GKAZ10 9. GKAZ129, GKAZ159, GKAZ169, GKAZ189

Hollow shaft mounting type with foot: GKAB39, GKAB49, GKAB59, GKAB69, GKAB99, GKAB89, GKAB99, GKAB109, GKAB129, GKAB159, GKAB169, GKAB189

Hollow shaft with small flange output combination type: GKAZ99R39,

 Solid shaft output combination type: GK99R39, GK89R59, GK99R99, GK109R99, GK129R89, GK159R99, GKAZ169R99, GKAZ189R99, GKAZ159R109, GKAZ169R109, GKAZ189R109 9R59, GK89R59, GK99R99, GK109R99, GK129R89,

 Hollow shaft output combination type: GKA99R39, GKA89R59, GKA99R99, GKA109R99, GKA129R89, GKA159R99, GKA169R99, GKA189R99, GKA159R109, GKA169R109 9. Solid shaft with flanged output combination type: GKF99R39, GKF89R59, GKF99R99, GKF109R99, GKF129R89, GKF159R99, GKF169R99, GKF189R99, GKF159R109, GKF169R109, GKF189R109; Hollow shaft with flanged output combination type: GKAF99R39, GKA F89R59, GKAF99R99, GKAF109R99, GKAF129R89, GKAF159R99, GKAF169R99, GKAF189R99, GKAF159R109, GKAF169R109, GKAF189R109 Hollow Shaft Output Combination Type with Base: GKAB99R39, GKAB89R59, GKAB99R99, GKAB109R99, GKAB129R89, GKAB159R99, GKAB169R99, GKAB189R99, GKAB159R109, GKAB169R109, GKAB189R109
