Installation dimensions of WPWS type worm gear reducer

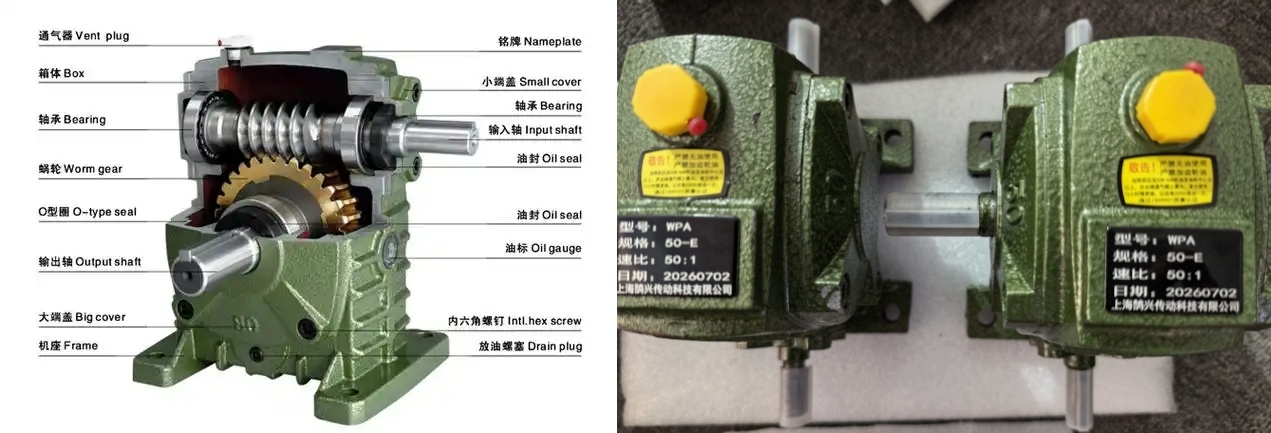

H1:Core material parameters of WPWS series cast iron turbine reducer
The worm gear is made of tin bronze (such as ZCuSn10P1), and the worm gear is made of
45 # high-quality steel that has been quenched and tempered/surface quenched. The tooth surface
hardness can reach HRC45-55, with excellent wear resistance and anti bonding ability, suitable for
medium and high-speed heavy-duty working conditions.
Complete parameters of WPWS type worm gear reducer
H2: General basic parameters
The maximum input speed of the worm gear is ≤ 1500r/min, and the working environment temperature
range is -40 ℃~+40 ℃. It supports both forward and reverse operation
The full range of machine base specifications covers 50-200, with a single-stage transmission ratio
of 10-60, input power of 0.18-22.6kW, and output torque of 9-1782N. m
The box body is a cast iron universal structure that supports multi-faceted installation and is suitable
for mechanical equipment with high load-bearing capacity requirements such as mining, lifting, and
chemical industries
