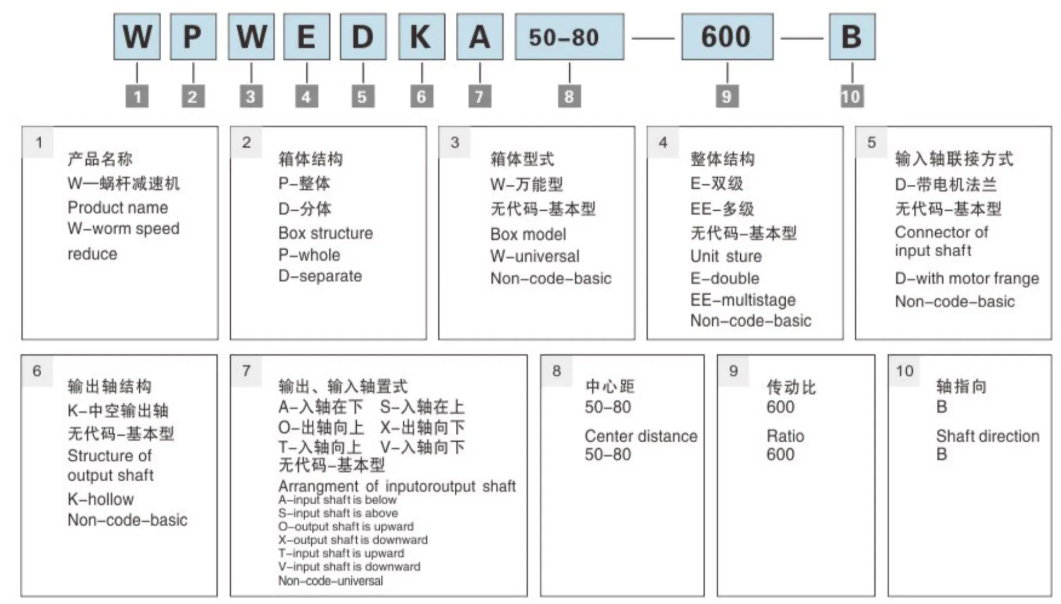

Structure Table of WPWEDKA50-80-600-B Model

H1:Structure Table of WPWEDKA50-80-600-B Model



H2:Core performance parameters of WP series cast iron worm gear box

1.The total speed ratio is 600, and when adapted to a 4-pole 1.5kW motor, the output speed is about 2.3r/m, the rated output torque is about 350N · m, and the overall weight is about 32kg. It has reliable reverse self-locking characteristics.

2. Key dimensions for installation of WP series reducers

The total center height is 110mm, the output shaft diameter is 32mm, the shaft elongation is 70mm, the keyway size is 10 × 8 × 56, the foot mounting hole spacing is 130mm, and it can be directly connected to a conventional horizontal mounting base.

3. Key points for use and maintenance

After the first 200 hours of operation, replace the special lubricating oil for the worm gear. Afterwards, change the oil every 5000 hours. It is recommended to control the input speed at ≤ 1200r/min to avoid long-term high-speed operation exacerbating worm gear wear.
