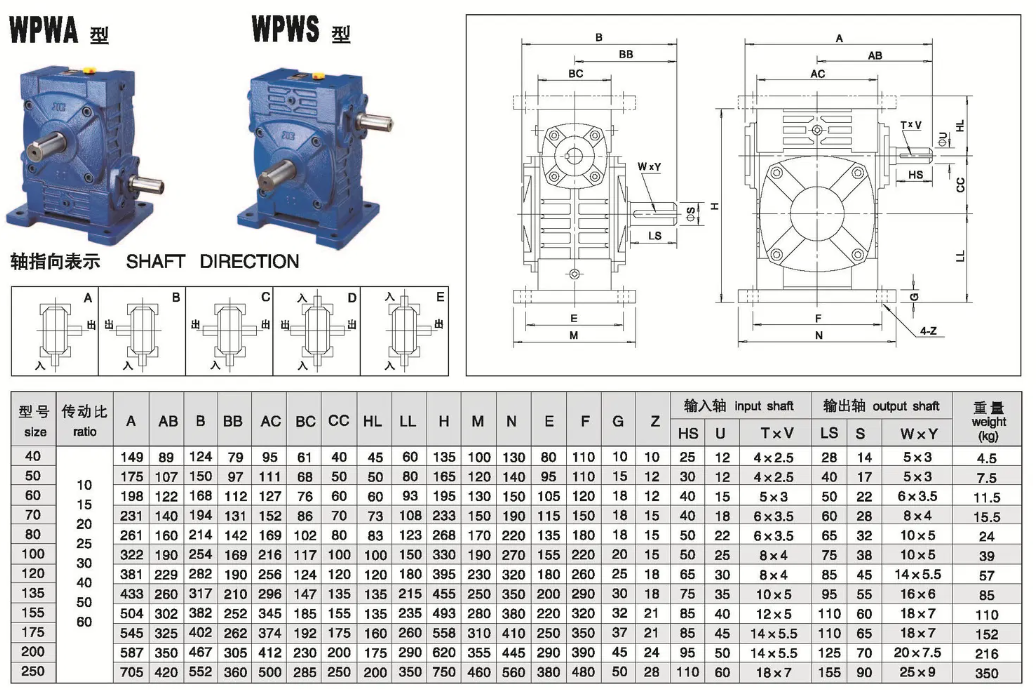

WPWA40-WPWA250 Worm Gear Reducer - Installation Dimensional Drawing
H1:Table of Core Installation Dimensions for Each Machine Seat Number of WPWA Series Worm Gear Reducer
H2:Full series core parameter details
●Machine base coverage range: WPWA40~WPWA250, a total of 12 standard machine base numbers, suitable for different load scenarios.
●Transmission capacity: single-stage speed ratio of 10~60, input power of 0.12 kW~15 kW, maximum output torque of up to 1200 N · m.
●Box characteristics: Made of cast iron universal box, with multiple reserved fixing screw holes, it can be installed in multiple directions without the need for a bottom plate.
●General operating conditions: The maximum input speed of the worm gear is ≤ 1500r/min, the working environment temperature is -40 ℃~+40 ℃, and it supports both forward and reverse operation.
