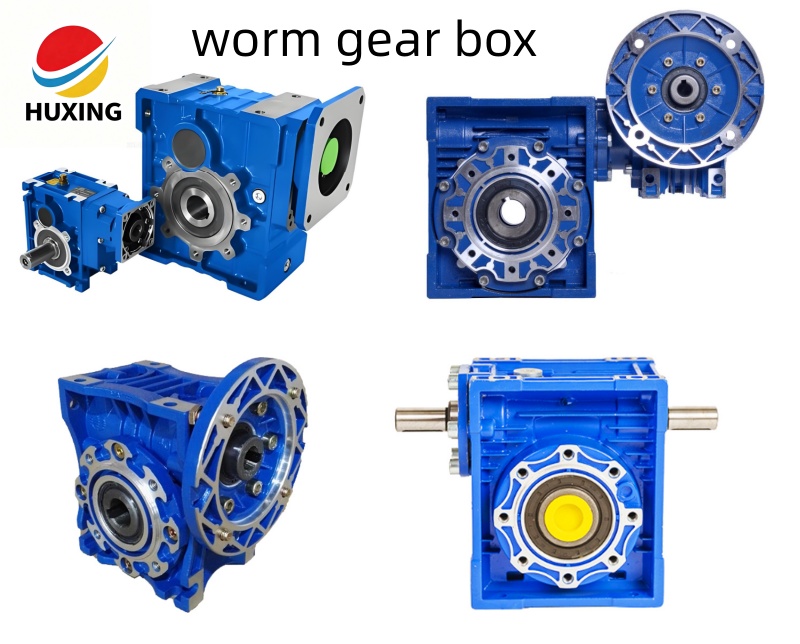

NMRV series turbine box 025-150 total parameter table
H1:Summary Table of Core Total Parameters for NMRV Series Turbine Box 025-150
| parameter item | numerical range |
| input power | 0.06 kW – 15 kW |
| output torque | 2.6 N·m – 3057 N·m |
| Dual speed reduction ratio | 100 : 1 – 10,000 : 1 |
| Machine base specifications | NMRV025 / 030 / 040 / 050 / 063 / 075 / 090 / 110 / 130 / 150 |
| Box material | Aluminum alloy (machine base 025-090)/cast iron (machine base 110-150) |
| Installation Method | Base type, flange type, torsion arm type, all-round universal installation |
H2: General common parameters
1. Transmission efficiency: single-stage 70% -90%, the higher the speed ratio, the lower the efficiency. When the speed ratio is 100, the efficiency is about 51%
2. Input speed: It is recommended that the input speed of the worm should not exceed 1500r/min
3. Working environment: Suitable temperature -10 ℃~40 ℃, humidity ≤ 90%
4. Installation method: Supports base, flange, and torsion arm installation, suitable for vertical and horizontal scenarios
