Wind Turbine Pitch Gearbox: The Critical Drive for Blade Control Energy Efficiency

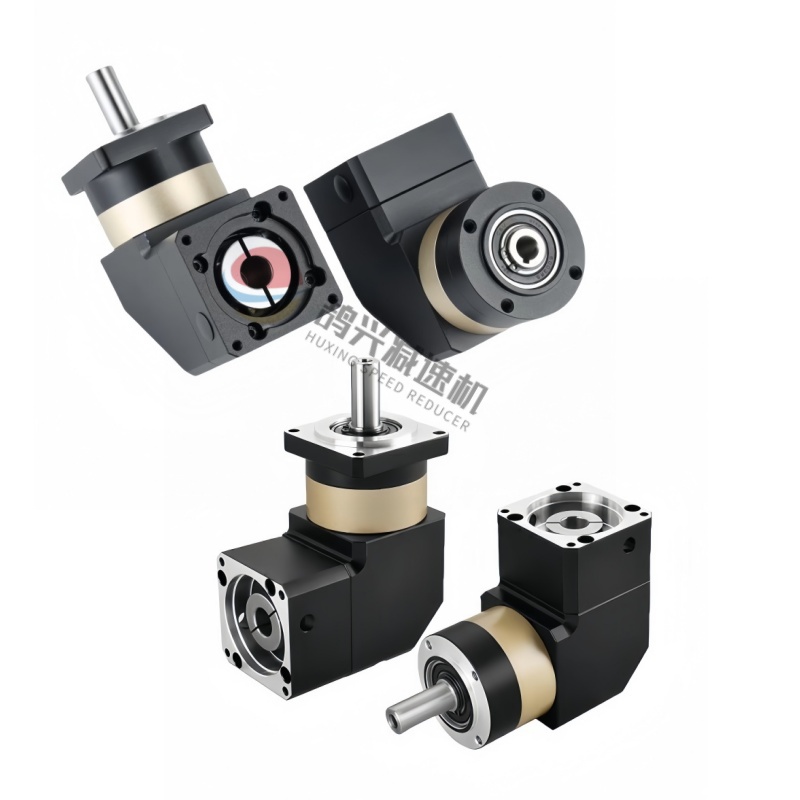

The wind turbine pitch gearbox is a precision electromechanical actuator that adjusts
rotor blade angles to optimize power capture and protect against extreme wind conditions.
Without a reliable pitch gearbox, even the most advanced turbine cannot achieve optimal
energy yield or safe operation under variable wind speeds.
**Primary Gearbox Type: Planetary Gearboxes**

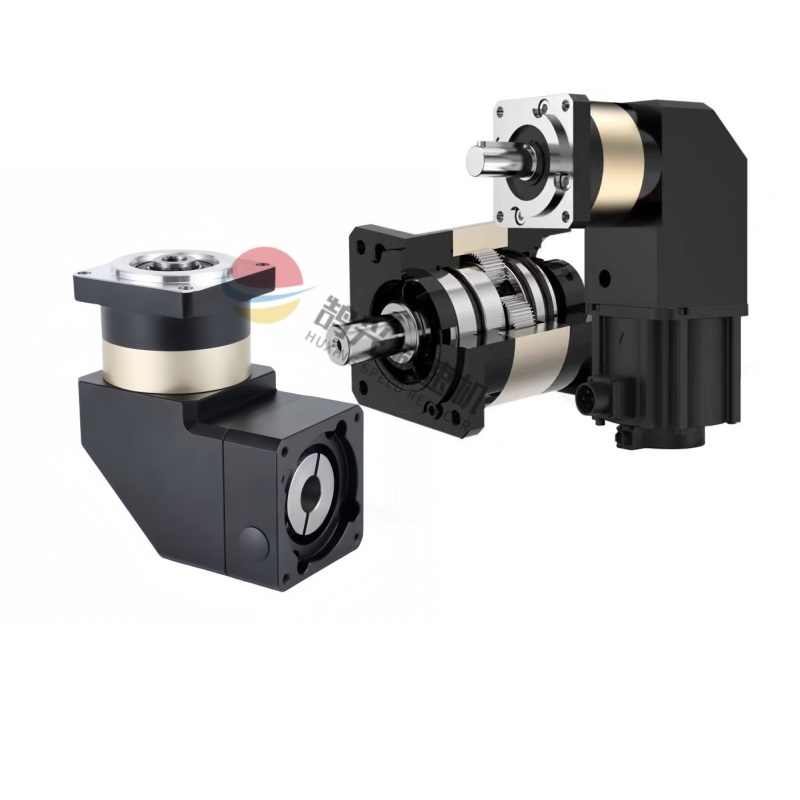

Multi-stage planetary gearboxes are the industry standard for pitch control.
They deliver exceptional torque density, high efficiency, and robust shock
resistance in a compact form. Typical configurations feature two-, three-
or four-stage planetary designs with static output torques from
3 kNm to 110 kNm and ratios from 62:1 to 1,671:1.

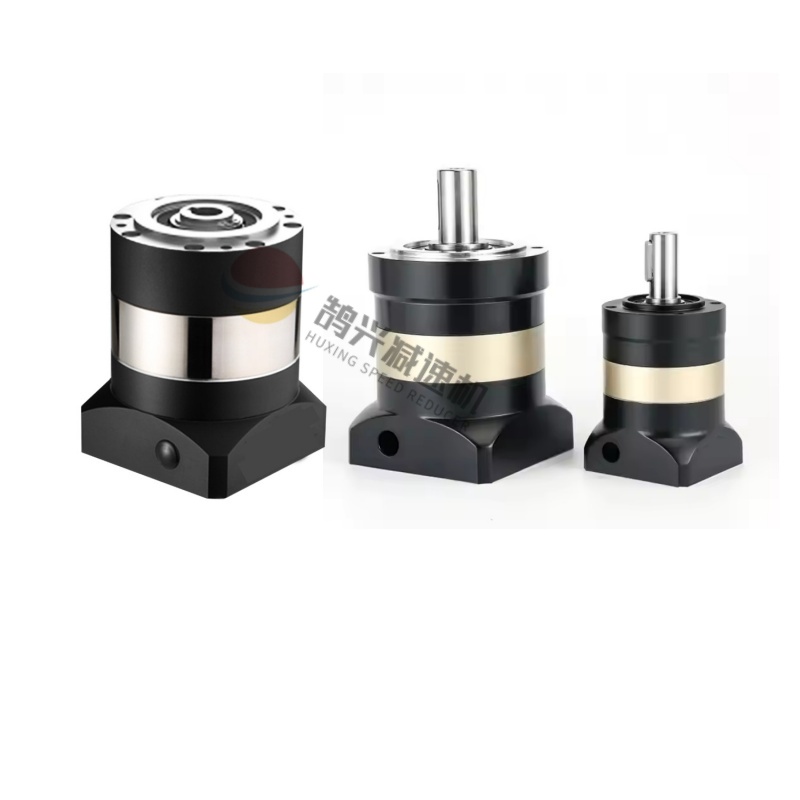

A 4MW-class turbine pitch gearbox typically comprises a triple-planetary system.
**Critical Selection Parameters:**
- **Torque Capacity**: Output torque ranges from 1,000 Nm to 80,000 Nm depending on turbine size
- **Backlash**: Minimal play is essential for precise blade positioning
- **Service Life**: Minimum 20-year design life under harsh operating conditions
- **Environmental Durability**: Must withstand extreme temperatures, vibration, and variable loads
