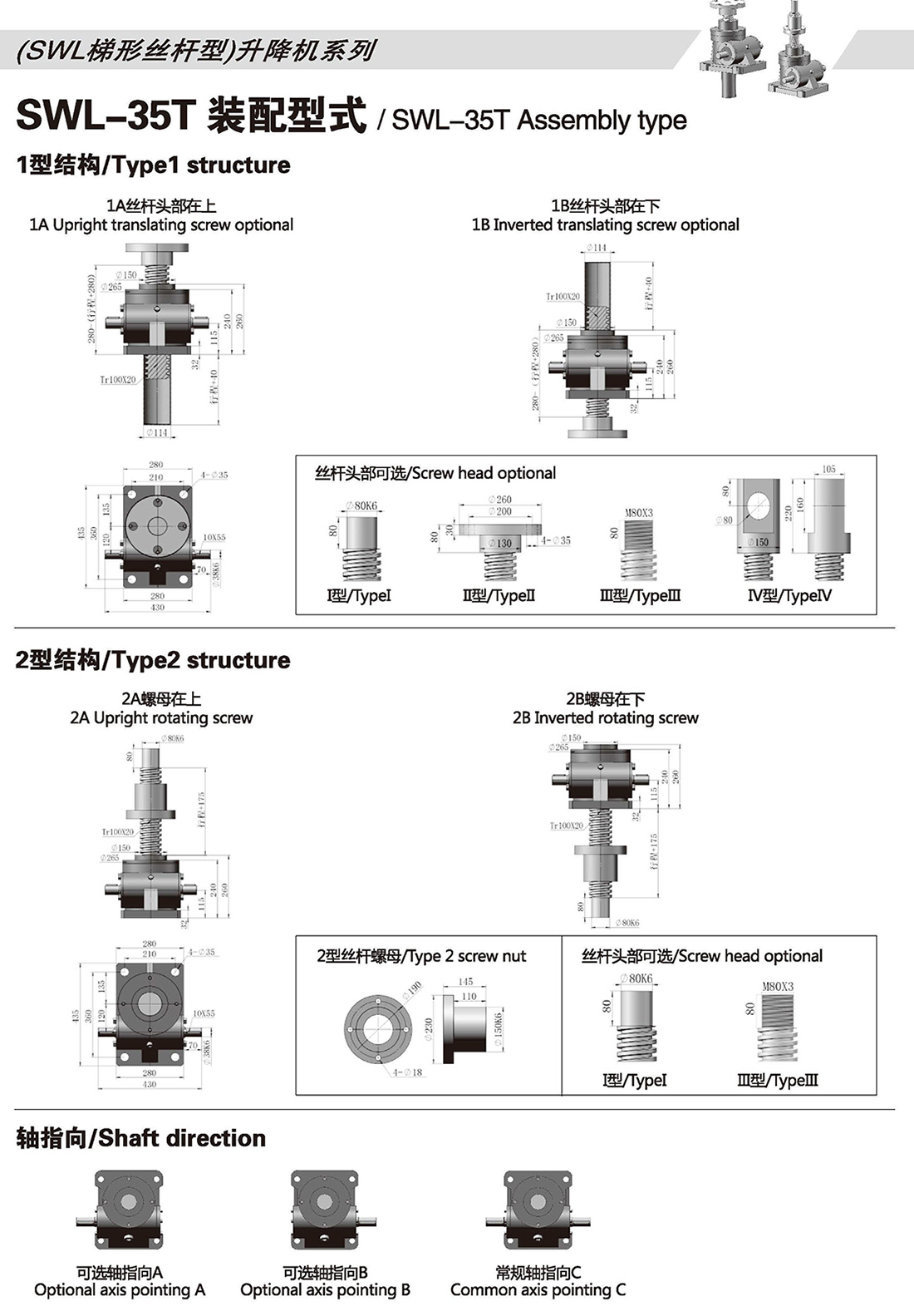

SWL35T Self-Locking Screw Jack – Assembly Type, Structure Type & Shaft Orientation Diagram
SWL35T Self-Locking Screw Jack – Assembly Type, Structure Type & Shaft Orientation
The SWL35T screw jack is a self-locking worm gear screw lift with 35 ton (350 kN) load capacity. It is available in multiple structure types, assembly types, and shaft orientation configurations to match your specific application requirements
Key Specifications
| Parameter | Value |
|---|---|
| Max Lifting Force | 350 kN (35 tons) |
| Max Pulling Force | 350 kN |
| Screw Thread | Tr100×18 |
| Reduction Ratios | 10.66:1 / 32:1 |
| Max Input Speed | 1,500 r/min |
| Self-locking | Yes (static condition) |
Jack lifting system reducer output configuration:
1.Type A: Top screw working end - push upwards
2.Type B: Lower screw working end - pull downwards
