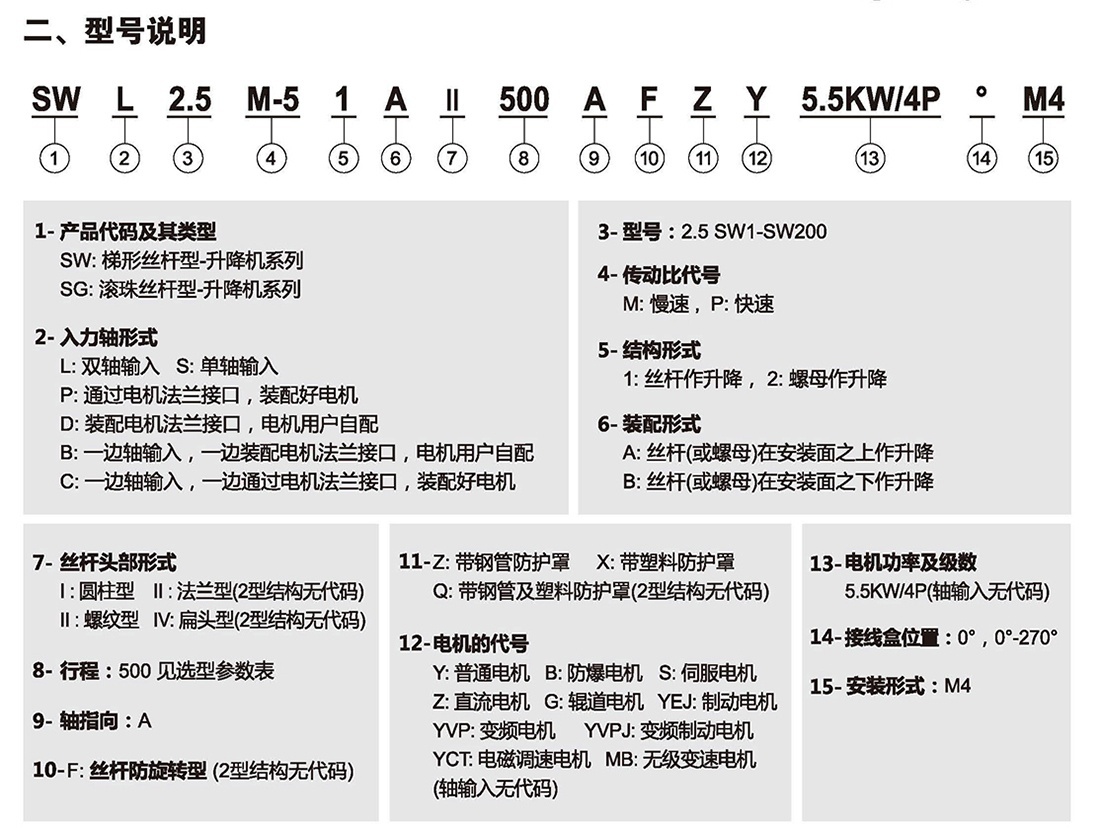

SWL2.5-M5-1-A Turbine Jack Model Description
SWL2.5-M5-1-A Turbine Jack Model Description
1‑Product Code & Type
SW: Trapezoidal Screw Jack SeriesSG: Ball Screw Jack Series
2‑Input Shaft Type
L: Double‑shaft input S: Single‑shaft inputP: Motor pre‑mounted via motor flange interfaceD: Motor flange interface, motor supplied by customerB: One‑side shaft input, one‑side motor flange interface, motor supplied by customerC: One‑side shaft input, one‑side pre‑mounted motor via flange interface
3‑Model No.: 2.5 SW1‑SW200
4‑Gear Ratio Code
M: Low speed P: High speed
5‑Structure Type
1: Screw lifting 2: Nut lifting
6‑Assembly Form
A: Screw (or nut) lifts above mounting surfaceB: Screw (or nut) lifts below mounting surface
7‑Screw End Configuration
Ⅰ: Cylindrical type Ⅱ: Flange type (no code for type‑2 structure)Ⅲ: Threaded type Ⅳ: Flat‑head type (no code for type‑2 structure)
8‑Stroke: 500, see selection parameter table
9‑Shaft Orientation: A
10‑F: Screw Anti‑rotation Type (no code for type‑2 structure)
11‑Accessory Code
Z: Steel tube protective cover X: Plastic protective coverQ: Steel‑tube & plastic combined protective cover (no code for type‑2 structure)
12‑Motor Code
Y: Standard motor B: Explosion‑proof motor S: Servo motorZ: DC motor G: Roller‑way motor YEJ: Brake motorYVP: Variable‑frequency motor YVPJ: Variable‑frequency brake motorYCT: Electromagnetic speed‑regulating motor MB: Stepless speed‑change motor(No code for shaft‑input configuration)
13‑Motor Power & Poles
5.5KW/4P (no code for shaft‑input configuration)
