The SWL15T screw jack is a self-locking worm gear screw lift with 15 ton (150 kN) load capacity. It shares the same external dimensions and screw thread (Tr58×12) as the SWL10T. It is available in multiple structure types, assembly types, and shaft orientation configurations to match your specific application requirements.
Screw lift screw jack structure type
| Structure Type | Description | Best For |
| Type 1 | Worm gear threadedly connected to screw; screw moves axially (rotates + translates) | Vertical lifting, precise positioning |
| Type 2 | Worm gear keyed to screw; screw rotates, nut moves axially | Compact installations, high-speed operation |
Available Assembly Types
| Assembly Type | Movement Direction | Application |
| Type A | Screw (or nut) moves upward | Lifting loads from below |
| Type B | Screw (or nut) moves downward | Pushing down or suspended loads |

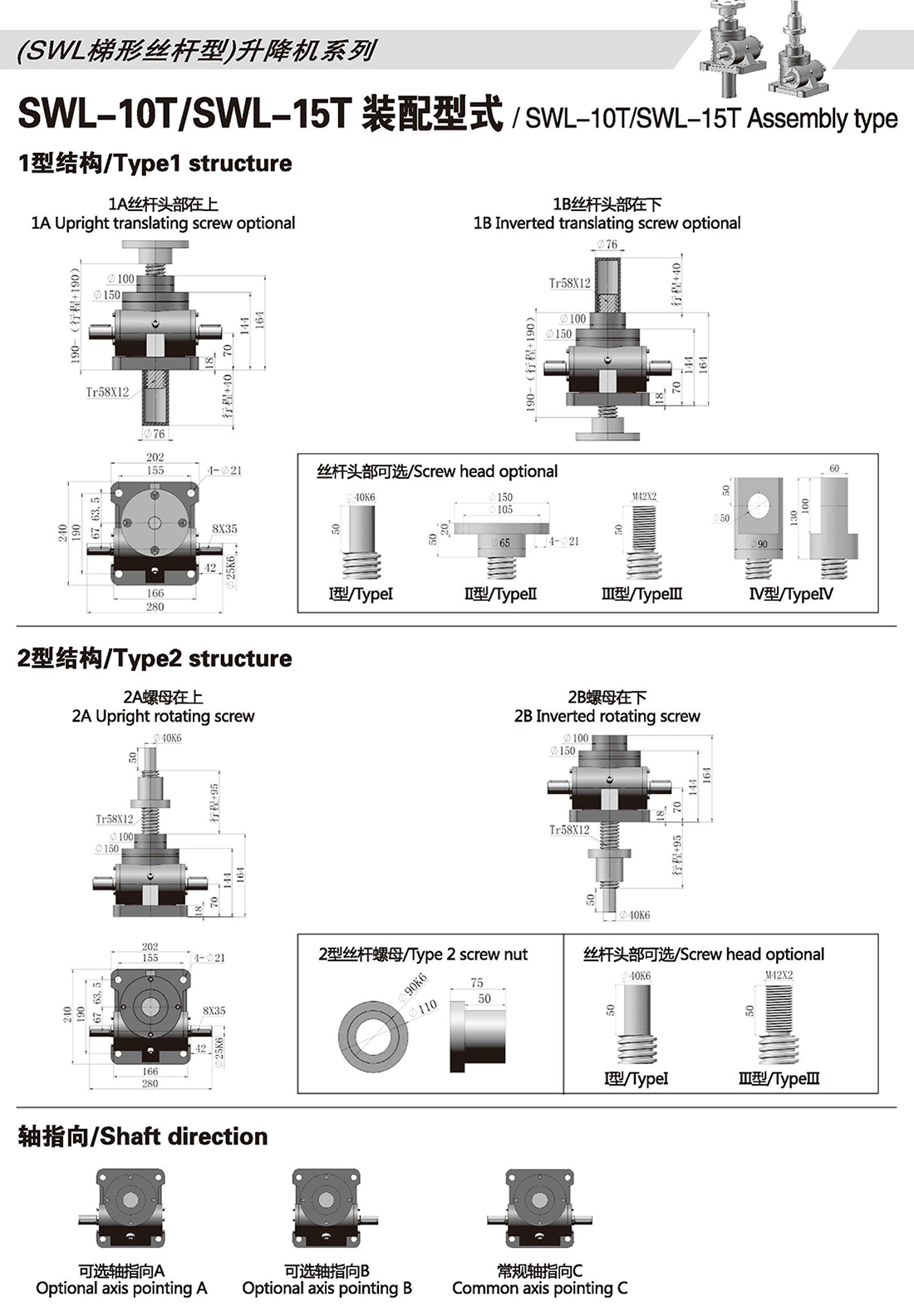

Shaft Orientation Diagram
The SWL15T features dual-side input shafts supporting IEC, NEMA, and servo motor adapter flanges
Input shaft options:
Left-side input
Right-side input
Dual-side input (motor on either side)
Output configurations:
Type A: Screw work end at top – upward pushing
Type B: Screw work end at lower side – downward pulling
Example: SWL15T-1A-II-500FZ = SWL15T, Type 1 structure, Type A assembly (upward), Type II screw head (flanged), 500mm stroke, with anti-rotation and protective boot.
Key specifications of SWL10t turbine screw reducer
| Parameter | Value |
| Max Lifting Force | 150 kN (15 tons) |
| Max Pulling Force | 99 kN |
| Screw Thread | Tr58×12 |
| Reduction Ratios | 8:1 / 24:1 |
| Max Input Speed | 1,500 r/min |
| Self-locking | Yes (static condition) |
Selection Guide
Choose Structure Type: Type 1 for vertical lifting with screw movement; Type 2 for compact designs with nut movement
Choose Assembly Type: Type A for upward lifting; Type B for downward pushing
Choose Shaft Orientation: Left, right, or dual-side input based on motor position
Specify Stroke: Custom stroke available per your requirements
Need help with selection? Send us your load, stroke, speed, and mounting preference – our engineering team responds within 24 hours.
