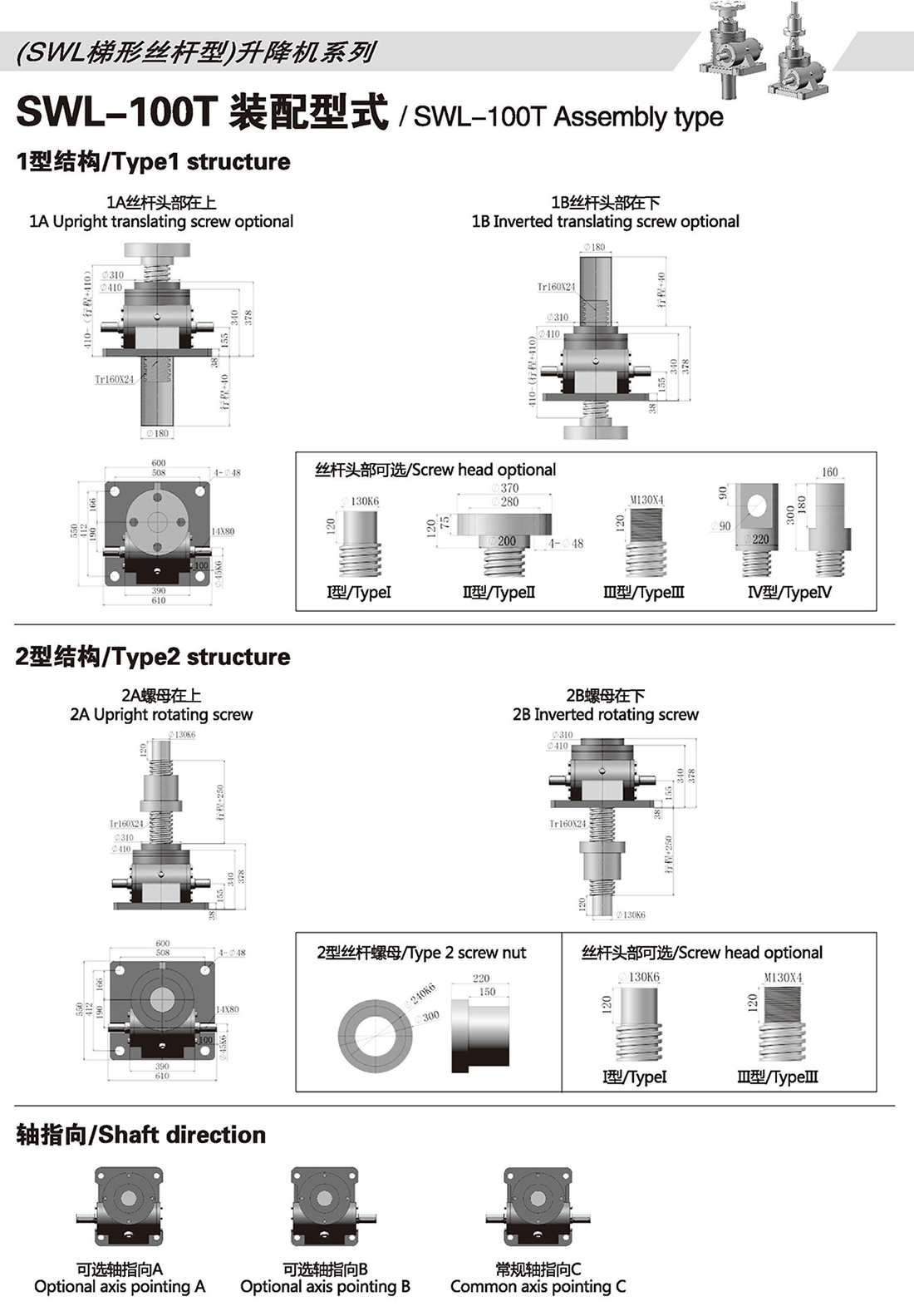

SWL100T Self-Locking Screw Jack – Assembly Type, Structure Type & Shaft Orientation Diagram
SWL100T Self-Locking Screw Jack – Assembly Type, Structure Type & Shaft Orientation
The SWL100T screw jack is a self-locking worm gear screw lift with 100 ton (1,000 kN) load capacity. It is available in multiple structure types, assembly types, and shaft orientation configurations to match your specific application requirements
Shaft Orientation Diagram
The SWL100T features dual-side input shafts supporting IEC, NEMA, and servo motor adapter flanges
Output configurations:
Type A: Screw work end at top – upward pushing
Type B: Screw work end at lower side – downward pulling
Key Specifications
| Parameter | Value |
|---|---|
| Max Lifting Force | 1,000 kN (100 tons) |
| Max Pulling Force | 1,000 kN |
| Screw Thread | Tr160×23 |
| Reduction Ratios | 12:1 / 36:1 |
| Max Input Speed | 1,500 r/min |
| Self-locking | Yes (static condition) |
