SWL Turbine Screw Lift - Pre purchase Notice

1.What is the load capacity of the confirmed model?

Re select model SWL0.5T/1T/2.5T/5T/10T/20T/25T/35Taccording to load

2. What is the speed of the gear ratio upgrade per minute?

6: 1/8:1/12:1/24:1/6:1 Choose one of the six

fastest speed ratios, and the slowest speed ratio of 24:1 can be customized with 3:1/36:1/32:1/and double

threaded; The larger the speed ratio, the slower the lifting, and the smaller the speed ratio, the faster the

lifting

3. Confirm the length of the screw rod in millimeters?

The standard configuration is 500mm long, and the length can be customized according to customer requirements, which can be extended or shortened,

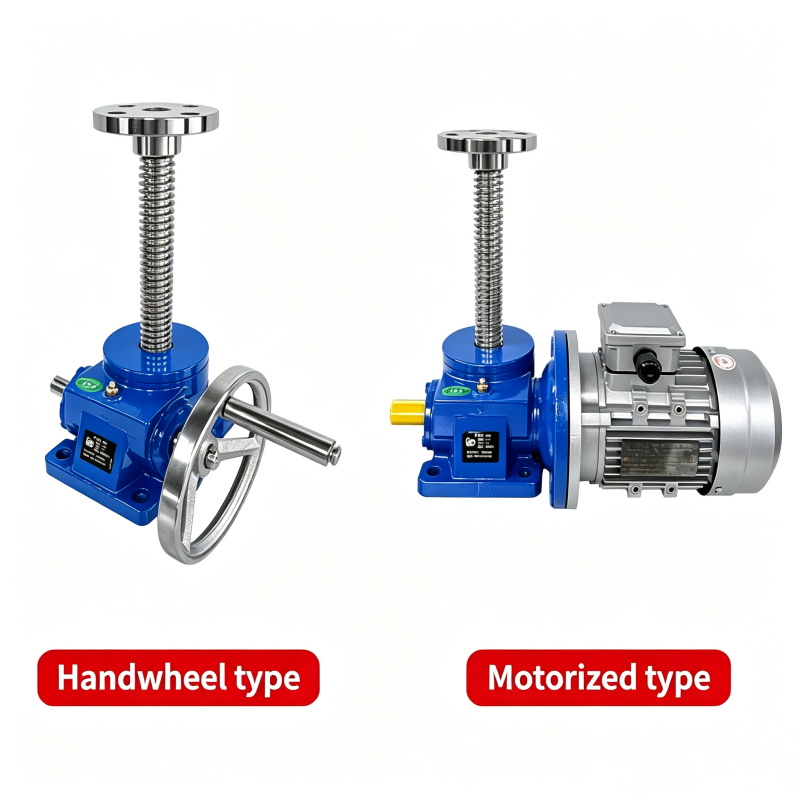

4. Confirm the lifting method

Do you need a hand cranked model or an electric motor model?

ManualElectric SWL Lift.png

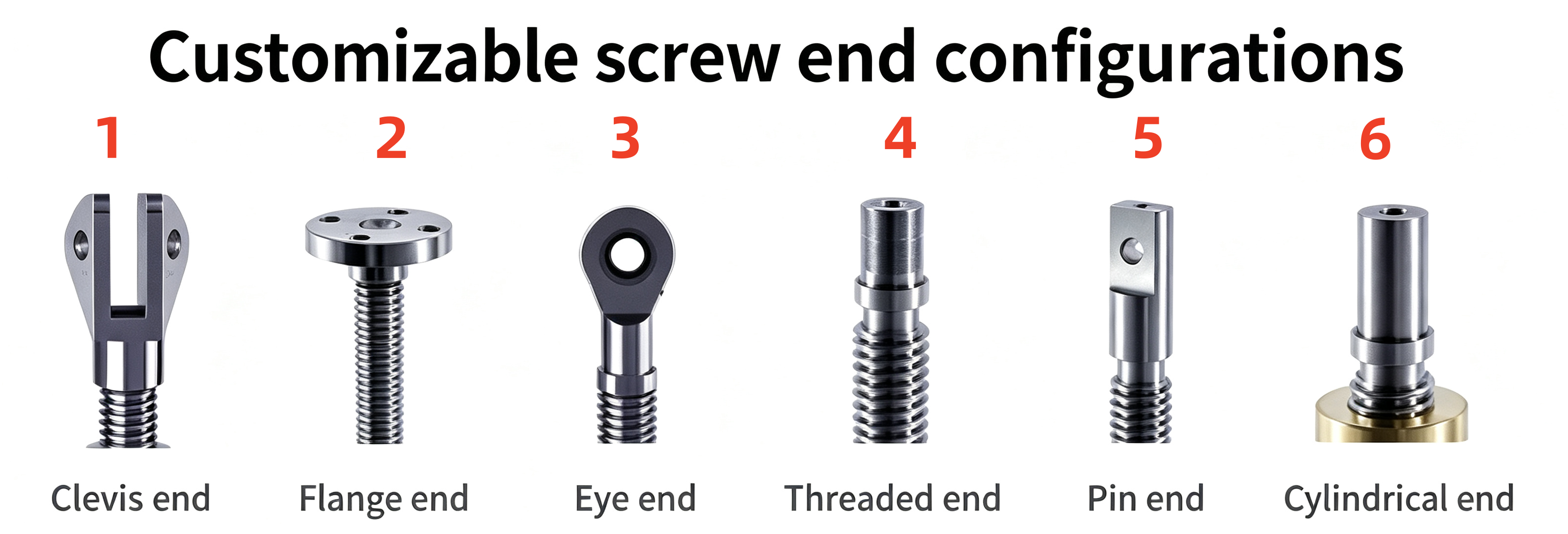

5. Confirm the form of the head

Screw head structure, customizable non-standard

SWL series jack head structure type.png

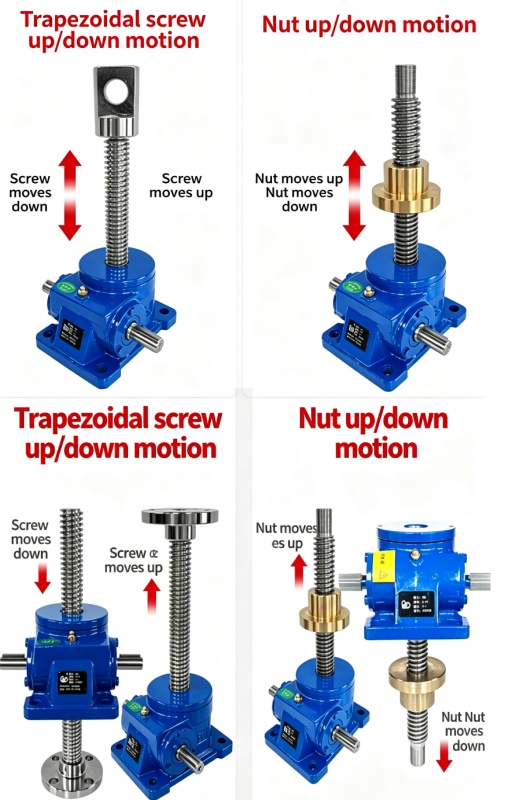

6. Confirm the structural form

Should the screw move up and down or the nut move up and down

7. Is there an anti rotation groove

Anti rotation groove fixing screw does not rotate

SWL series jack structure type.jpg

8. Confirm if accessories are needed?

Add anti rotation, handwheel, protective hard tube, protective soft tube, copper nut,

9. Confirm whether the motor needs to be used together with a matching motor?

The standard configuration of the motor is a three-phase 380V motor with a speed of 1400 revolutions per minute.
