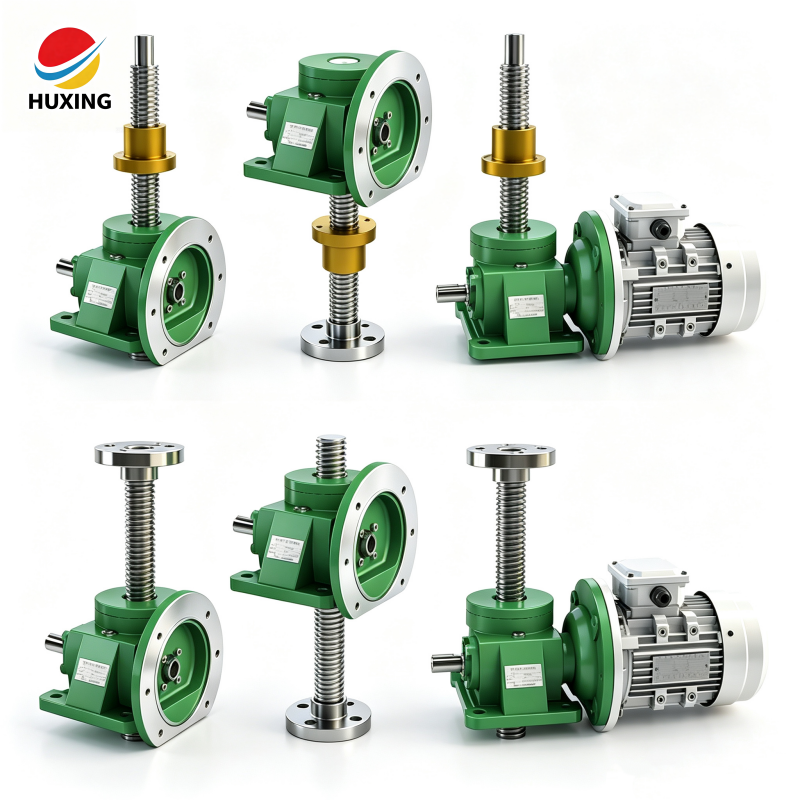

SWL series screw jack model parameter comparison table
1.SWL2.5-120 Model Core Parameter Comparison Table
| Model | Lift force (KN) | Screw thread size | Normal speed ratio (P) | Slow speed ratio (M) | Allowable power (kW) | Self weight (excluding travel, kg) |
| SWL2.5 | 25 | Tr30×6 | 6：1 | 24:1 | 0.55 | 7.3 |
| SWL5 | 50 | Tr40×7 | 6：1 | 24:1 | 1.1 | 16.2 |
| SWL10 | 100 | Tr58×12 | 7.67:1 | 24:1 | 2.6 | 25 |
| SWL15 | 150 | Tr58×12 | 7.67:1 | 24:1 | 3.7 | 36 |
| SWL20 | 200 | Tr65×12 | 8:1 | 24:1 | 4.8 | 70.5 |
| SWL25 | 250 | Tr90×16 | 10.67:1 | 32:1 | 6.0 | 87 |
| SWL35 | 350 | Tr100×18 | 10.67:1 | 32:1 | 7.5 | 420 |
| SWL50 | 500 | Tr120×20 | 11:1 | 32:1 | 15 | 1010 |
| SWL100 | 1000 | Tr160×23 | 12:1 | 36:1 | 17.5 | 1350 |
| SWL120 | 1200 | Tr180×25 | 12:1 | 36:1 | 17.5 | 1350 |
2、 Key Supplementary Explanation
Efficiency characteristics: The total efficiency of the ordinary speed ratio (P) is 12%~23%, and the total efficiency of the slow speed ratio (M) is 8%~15%. The efficiency will further decrease under grease lubrication conditions.
Self locking feature: It has self-locking function in a stationary state, but additional braking devices need to be installed in strong vibration and impact load scenarios to avoid self-locking failure.
Customization capability: The screw stroke can be customized according to needs, with a standard screw length of 500mm. It can support a maximum of 6-meter ultra long stroke, and if the stroke exceeds 800mm, it is recommended to install a guiding device to prevent screw instability.
Marking rule: The complete model marking example is "SWL5M-1A-II 500 FZ", which corresponds to the model, transmission ratio, structural type, assembly type, head type, stroke, and protection type in sequence.
