SWL Series Screw Head Types – How to Connect Your Load
SWL Screw Head Types – Connect Your Load the Right Way
The screw head is the connection point between your SWL screw jack and your load. Choosing the right head type is like choosing the right tool attachment – it needs to fit.
The Four Head Types
| Head Type | Code | What It Looks Like | Best For |
| Cylindrical | I | Plain round end | Pin or clamp connections |
| Flanged | II | Flat plate with bolt holes | Bolted connections (most common) |
| Threaded | III | Threaded end | Nut attachment, adjustable |
| Flat head | IV | Flat end with hole | Push applications, custom tooling |

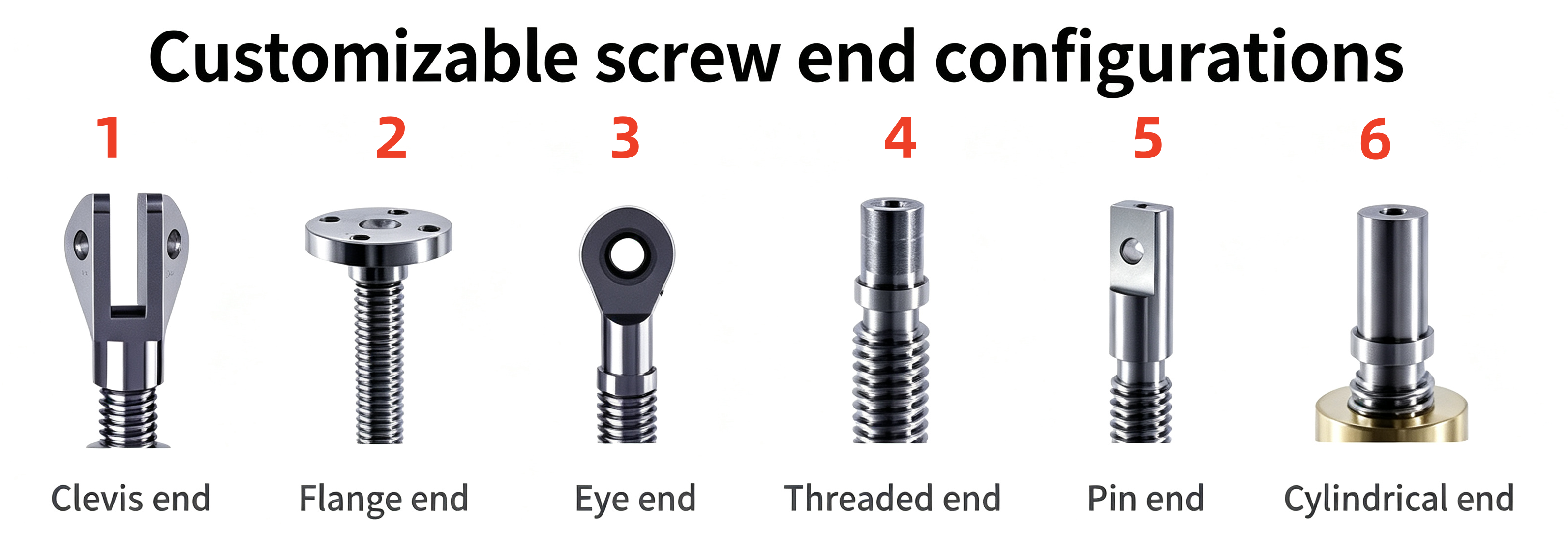

SWL series jack screw head structure type, supports customization of different connection structures
1. Pin type
2. Flange type
3. Articulated type
4. Thread type
5. Pin hole type
6. Cylindrical type
