6-750w Micro AC Gear Motor Product Specification
H1:The detailed parameters of 6-750w miniature AC gear motor are as follows:
| Band name | Hu Xing |
| Out Power | 6w 15w 25w 40w 60w 90w 120w 140w 180w 200w 250w 300w 370w 400w 750w |
| Dimension | 42mm 60mm 70mm 80mm 90mm 104mm 120mm |
| Voltage | 110v 120v 220v 230v 380v |
| Frequency | 50Hz 60Hz |
| Phase | 1200r/min 1300r/min 1350r/min 1450r/min 1550r/min 1600r/min 1680 r/min |
| Starting torque | 0.04N.M - 9.019N.M |
| Rated torqur | 0.034-5.306N.M |
| Motor Shaft type | Pinion shaft Round shaft Keyway |
| Accessories that can be added | gear box Terminal box w/fan w/ forced fan eleceromagnetic brake thermally |
| Micro ac gear motor type | Induction motor Reversible motor Torque motor Speed control motor Right angle gear motor Brake motor |

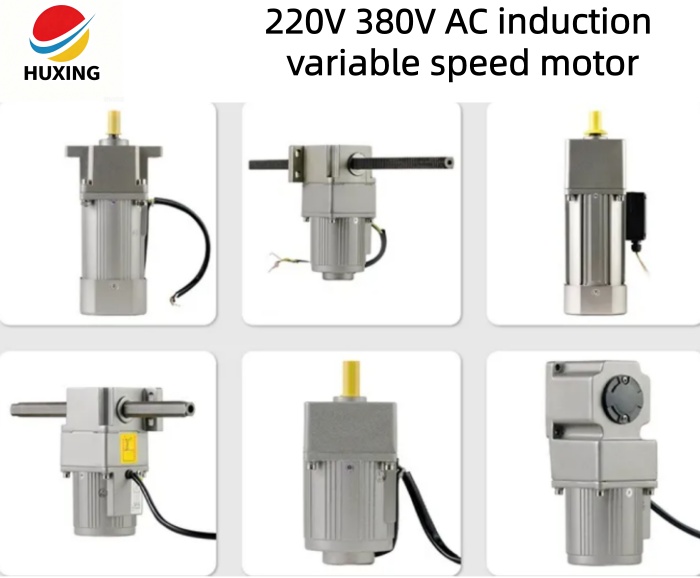

H2:Gear reducer motor integrated single-phase 220V adjustable variable speed micro gear motor product features:
●high efficiency
●High torque, low speed
●Low noise, long lifespan, strong reliability
●Runs smoothly
●Brushless environmental protection
●Simple structure and easy to use
●Factory supplier's most favorable price
●Suitable for extreme environments
You can also contact us and let us know the power, voltage, torque, and other parameters you need. We can accept and customize the acquisition of drawings and detailed parameters.
