H1: 1.5KW Right Angle Gear Motor - Torque Gauge and Installation Dimensions

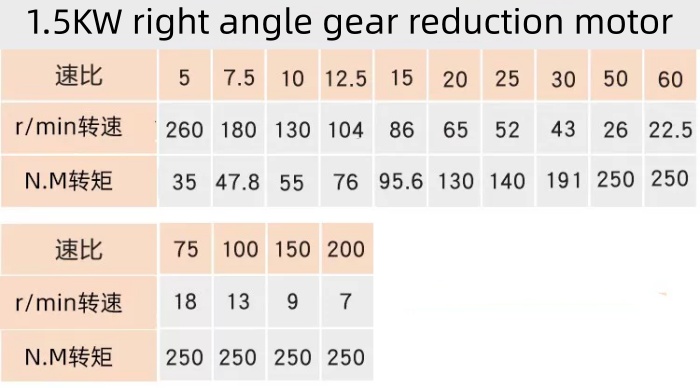

H2: 1.5KW right angle gear motor torque meter
The HUXING 1.5KW right angle reduction motor is designed specifically for high-power industrial applications, providing powerful torque output in a compact 90 ° configuration.
| Ratio | Output Speed (r/min) | Torque (N·m) |
|---|---|---|
| 5 | 260 | 35 |
| 7.5 | 180 | 47.8 |
| 10 | 130 | 55 |
| 12.5 | 104 | 76 |
| 15 | 86 | 95.6 |
| 20 | 65 | 130 |
| 25 | 52 | 140 |
| 30 | 43 | 191 |
| 50 | 26 | 250 |
| 60 | 22.5 | 250 |
| 75 | 18 | 250 |
| 100 | 13 | 250 |
| 150 | 9 | 250 |
| 200 | 7 | 250 |

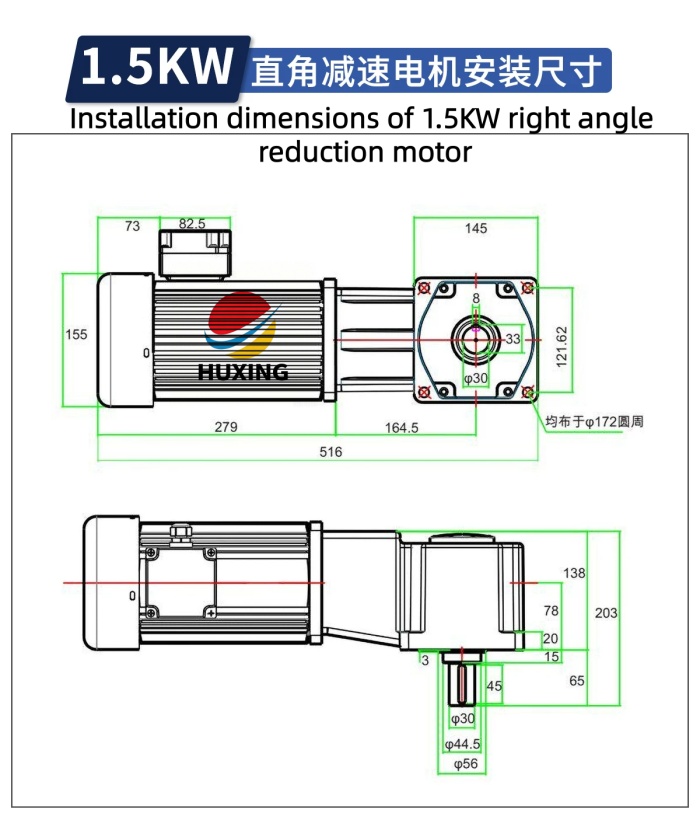

The standard 中实 (solid shaft) model is engineered for direct coupling to pulleys, sprockets, or couplings. Key mechanical specifications:
| Parameter | Dimension |
|---|---|
| Overall Length | 516 mm |
| Body Length (from flange) | 279 mm |
| Flange Size | 145 × 145 mm |
| Mounting Holes | 4-Φ11, evenly distributed on Φ172 PCD |
| Output Shaft | Φ30 mm, length 65 mm |
| Shaft Shoulder | Φ56 mm |
| Keyway | 8 mm |
| Center Height | 155 mm |
| Total Height | 203 mm |

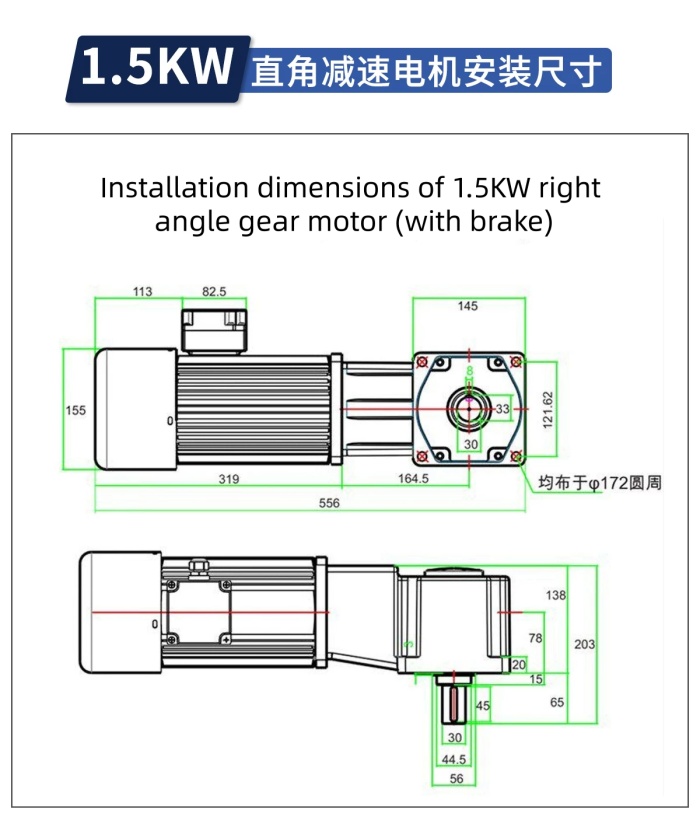

For applications requiring rapid stopping, holding, or emergency braking, the 1.5KW brake model provides fail-safe operation. Crucially, it maintains the exact same flange and shaft interface as the standard model.
| Parameter | Dimension |
|---|---|
| Overall Length | 556 mm (Adds 40 mm for brake housing) |
| Body Length (from flange) | 319 mm |
| Flange Size | 145 × 145 mm |
| Mounting Holes | 4-Φ11, evenly distributed on Φ172 PCD |
| Output Shaft | Φ30 mm, length 65 mm |
| Shaft Shoulder | Φ56 mm |
| Keyway | 8 mm |
| Center Height | 155 mm |
| Total Height | 203 mm |
Space-Saving 90° Design: Redirects power efficiently, eliminating the need for extra couplings and saving valuable machine footprint.
High Torque Density: Delivers up to 250 N·m of torque, perfect for heavy-duty conveyors, packaging machinery, and automated feeding systems.
Flexible Configuration: Available in solid shaft (中实) or hollow shaft, with or without brake, single-phase or three-phase voltage.
Industrial Durability: Built with high-quality iron cores and precision gears to withstand continuous industrial operation.
H2: Do you need to customize a 1.5KW right angle gear motor?
We offer 1.5KW right angle gear motors with customized transmission ratios, voltage options
(110V/220V/380V), and shaft configurations.
Send our engineering team your required output speed (r/min), torque (N · m), and installation limits.
We will match the exact model and provide a factory direct quotation within 24 hours.
