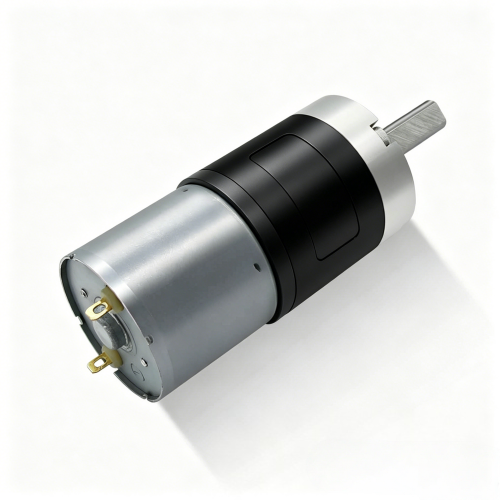

silent gear motor for medical

---

   The medical silent gear motor is a precision drive solution engineered to deliver controlled torque

with minimal acoustic output—a critical requirement in noise-sensitive healthcare environments.

From surgical robots to infusion pumps, these ultra-quiet power units enable the accuracy, reliability,

and patient comfort that modern medical devices demand.

Key Technologies for Silent Operation:

- **Helical Gear Design**: Teeth engage gradually across a large surface area, reducing impact,

vibration, and audible noise compared to spur gears. This smooth engagement minimizes

transmission error and mesh stiffness deviation.

- **Advanced Materials**: Thermoplastic and polymer gears absorb shock and vibration,

reducing noise by up to 6 dB compared to metal alternatives. They also eliminate the need for

lubrication, preventing contamination.

- **Precision Engineering**: Optimized tooth geometry, specialized lubricants, and vibration-damping

structures achieve exceptionally low noise levels. Hu Xing's low-noise variants

reduce noise by up to 10 dB versus standard models.

- **Compact Integration**: In-house gear manufacturing enables extreme miniaturization

without compromising torque output. Some models feature orthogonal axis design

with hollow shafts for cable routing.

**Key Applications:** IVD diagnostics (sample handling, liquid dispensing),

robotic surgical systems (joint actuation, force feedback), portable ventilators and infusion

pumps (flow control), medical imaging equipment (smooth, vibration-free positioning).

**Critical Selection Parameters:** Noise level (target <65 dB), backlash

(<5 arcmin for precision positioning)

sterilization resistance, FDA compliance, and compact form factor.
