H1: NMRV Gearbox with Servo Motor – Matching Guide & 5 Mistakes to Avoid

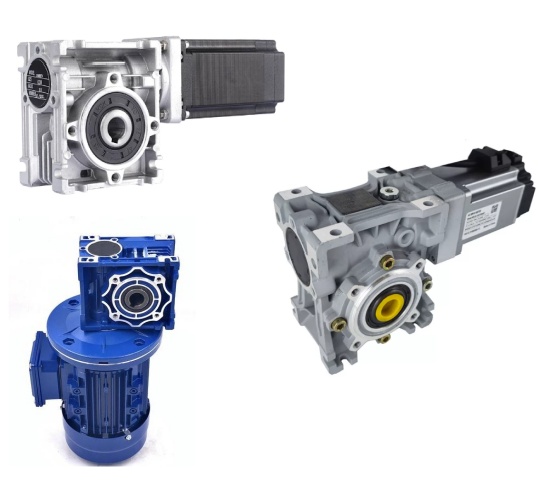

NMRV worm gearboxes can be paired with servo motors for precision applications like CNC machine tools, robotic arms, and AGVs. Here‘s how to match them correctly.
Why Pair NMRV with Servo Motor?
Wide ratio range — from 5:1 up to 5000:1 available
Cost-effective — much lower than expensive planetary reducers
Multiple speeds — servo speed flexibility + NMRV ratio variety
Easy installation — simple mounting and maintenance
Power Matching Guide (based on n₂=1500 RPM)
| NMRV Frame | Servo Power Range | Ratio Compatibility |
| NMRV040 | 100W – 750W | 5:1 to 100:1 |
| NMRV050 | 100W – 750W | 5:1 to 100:1 |
| NMRV063 | 200W – 1500W | 7.5:1 to 100:1 |
| NMRV075 | 500W – 4000W | 7.5:1 to 100:1 |
| NMRV090 | 750W – 4000W | 7.5:1 to 100:1 |
| NMRV110 | 1000W – 7500W | 7.5:1 to 100:1 |
5 Common Mistakes to Avoid
1. Mismatched flange type – Standard NMRV uses round B5 flange. Servo motors require square flange
input — confirm you‘re ordering the correct variant.
2. Servo shaft diameter exceeds input bore – The selected servo motor‘s output shaft diameter cannot
exceed the NMRV input shaft diameter.
3. Power mismatch – Select servo power based on running power, starting power, and peak
power — avoid oversizing (wasted energy) or undersizing (system failure).
4. Ignoring precision requirements – For precision systems, choose servo motors with high accuracy
and fast response for precise position and speed control.
5. Skipping validation – After matching, perform no-load and load tests to verify stability, speed
accuracy, and torque outpu
