S Series Gearbox – Mounting Options

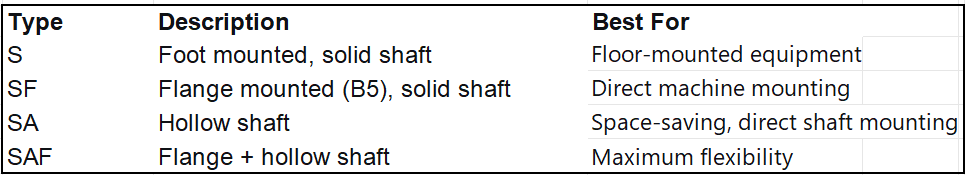

Mounting Types

Mounting Positions (M1-M6):

Different positions affect oil level and lubrication

Specify M1-M6 when ordering to ensure correct oil fill

Input Options:

Motor direct coupled (geared motor)

IEC flange input (AM adapter)

Free input shaft (AD shaft, for belt/pulley drive)

Pro tip: Mounting position determines oil capacity. Always confirm M1-M6 before ordering.
