This article provides drawings of the appearance dimensions, external dimensions, installation dimensions, center height, shaft diameter, and installation hole distance of NMRV75 reducer, in millimeters, suitable for engineering design, equipment installation, and selection.
1、 NMRV75 reducer product introduction
The NMRV75 reducer belongs to the medium to high torque model, with stable operation and strong load-bearing capacity, suitable for automation equipment, conveying systems, environmental protection equipment, metallurgical machinery, packaging equipment, etc.

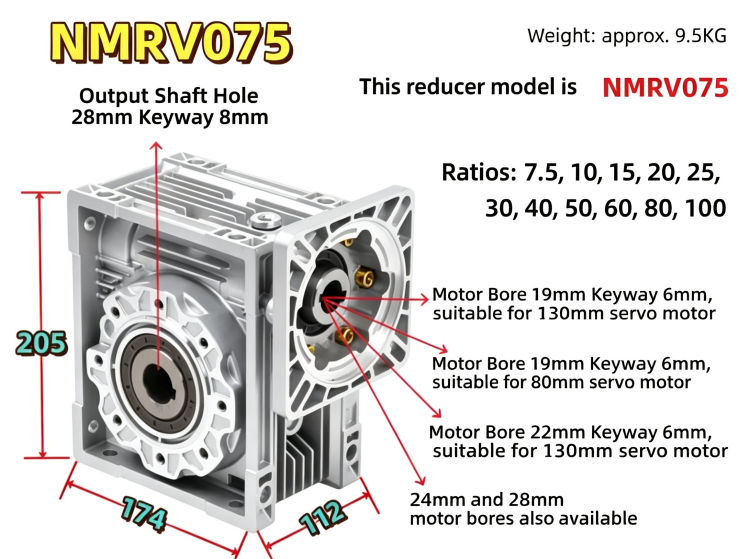

2、 Appearance dimension diagram of NMRV/NRV75
3、 Key Dimensional Parameters Table of NMRV75 Turbine Reducer
| parameter name | General Industry Standard Values |
| Total length A | About 200mm |
| Total length B | About 160mm |
| Total height C | About 175mm |
| Center height H | 100mm |
| mounting hole spacing | 130×110mm |
| Output shaft diameter d | 30mm |
| Input flange | 110B5 (compatible with standard B5/B14 motors) |
| Net weight | About 8-9kg |
4、 Gearbox drawing description
Dimensions in millimeters (mm)
The unmarked tolerance shall be executed according to the general mechanical standards
The installation size is standard structure, and non-standard customization is acceptable
The data is for selection reference only, and the official samples and physical objects shall prevail
5、 NMRVx series reducer related model size diagram
NMRV025｜NMRV030｜NMRV040｜NMRV050｜NMRV63｜NMRV75｜NMRV90｜NMRV110｜NMRV130｜NMRV150
