Appearance dimension drawing and installation dimension high-definition drawing of NMRV63 reducer
Appearance dimension drawing and installation dimension high-definition drawing of NMRV63 reducer
This article provides standard appearance dimensions, external dimensions, installation dimensions, and installation hole position drawings for NMRV63 reducer, in millimeters, suitable for equipment design, structural installation, and selection comparison.
1、 Product Introduction
NMRV63 worm gear reducer has high box strength and good heat dissipation, suitable for medium load equipment, widely used in automation, conveying, environmental protection, packaging, textile machinery, etc.

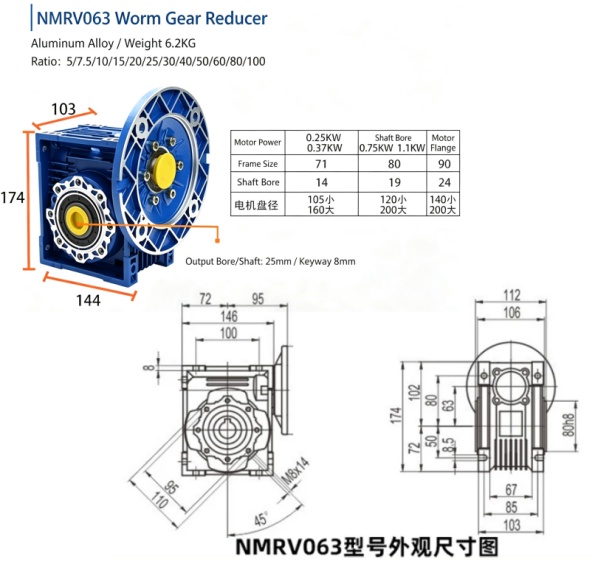

2、 Appearance dimension diagram
3、 Key Dimensional Parameter Table
| parameter item | Industry standard values |
| Total length A | About 175mm |
| Total width B | About 140mm |
| Total height C | About 155mm |
| Center height H | 80mm |
mounting hole spacing | 110×95mm |
| Output shaft diameter d | 25mm |
| Input Flange | 90B5 (Compatible with standard B5/B14 motors) |
| Net Weight | Approx. 5.5~6.5kg |
4、NMRV series reducer Drawing Description
Dimensions in millimeters (mm)
The unmarked tolerance shall be executed according to the general mechanical standards
The installation size is standard structure, and non-standard customization is acceptable
The data is for selection reference only, and the official samples and physical objects shall prevail
5、 NMRV series reducer/gearbox related model size diagram
NMRV025｜NMRV030｜NMRV040｜NMRV050｜NMRV63｜NMRV75｜NMRV90｜NMRV110｜NMRV130｜NMRV150
