Appearance, installation dimensions, and specifications of NMRV090 worm gear reducer
Complete NMRV090 Reducer Installation Size & Technical Data
NMRV090 worm gear reducer is a large and medium-sized aluminum alloy reducer widely used in
industrial automation, conveying systems, packaging machinery, and lifting equipment.
We provide official standard NMRV090 installation dimensions, including B3 foot installation,
B5 flange installation, and B14 flange installation. All dimensions comply with international standards,
fully compatible with IEC motors, and easy to install on site.
1.NMRV090 Standard Installation Dimensions (mm)
Center Distance: 90mm
Output Shaft Diameter: 35mm
B3 Foot Mount Size: 175×130mm, mounting hole 14mm
B5 Flange Dimension: 250mm outer diameter, 215mm positioning diameter
B14 Small Flange: 160mm outer diameter
Overall Size (L×W×H): 210×180×155mm
Net Weight: 19KG

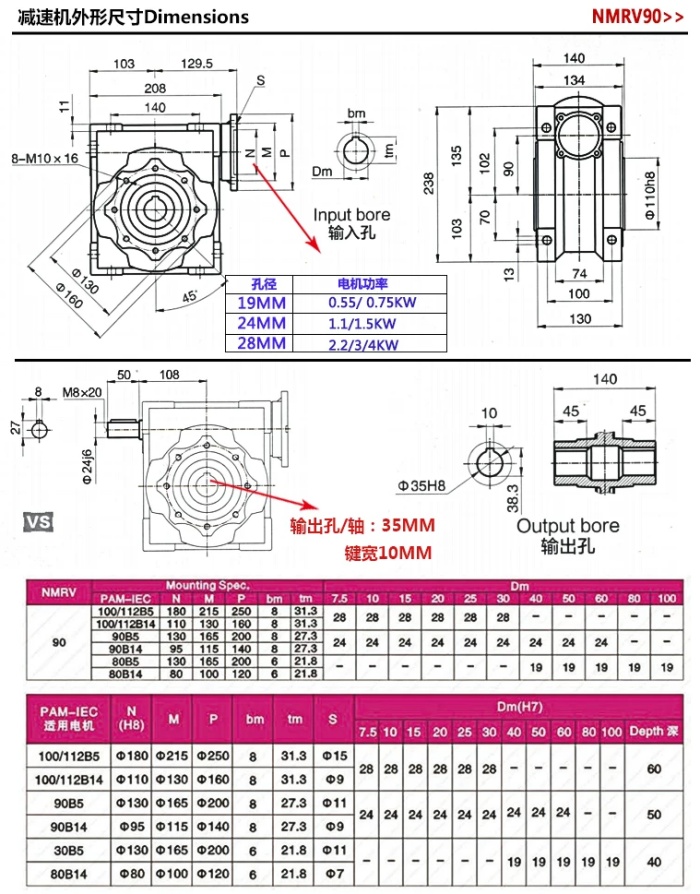

2.Appearance dimension diagram of NMRV090 worm gear reducer:
3.NMRV090 Core Technical Specifications
Reduction Ratio: 5:1 – 100:1
Applicable Motor Power: 1.5kW – 7.5kW
Max Output Torque: 1180 N.m
Protection Grade: IP54
Housing: High-strength die-cast aluminum alloy, high heat dissipation
Feature: Self-locking, low noise, stable transmission
FAQ
Q1: Are NMRV090 dimensions standard?Yes, all dimensions are international standard and fully interchangeable.
Q2: Can you provide NMRV090 2D/3D drawings?Yes, free DWG and STEP files are available for design reference.
Q3: Is custom ratio or shaft size available?Non-standard output shaft, flange and special ratios can be customized.
