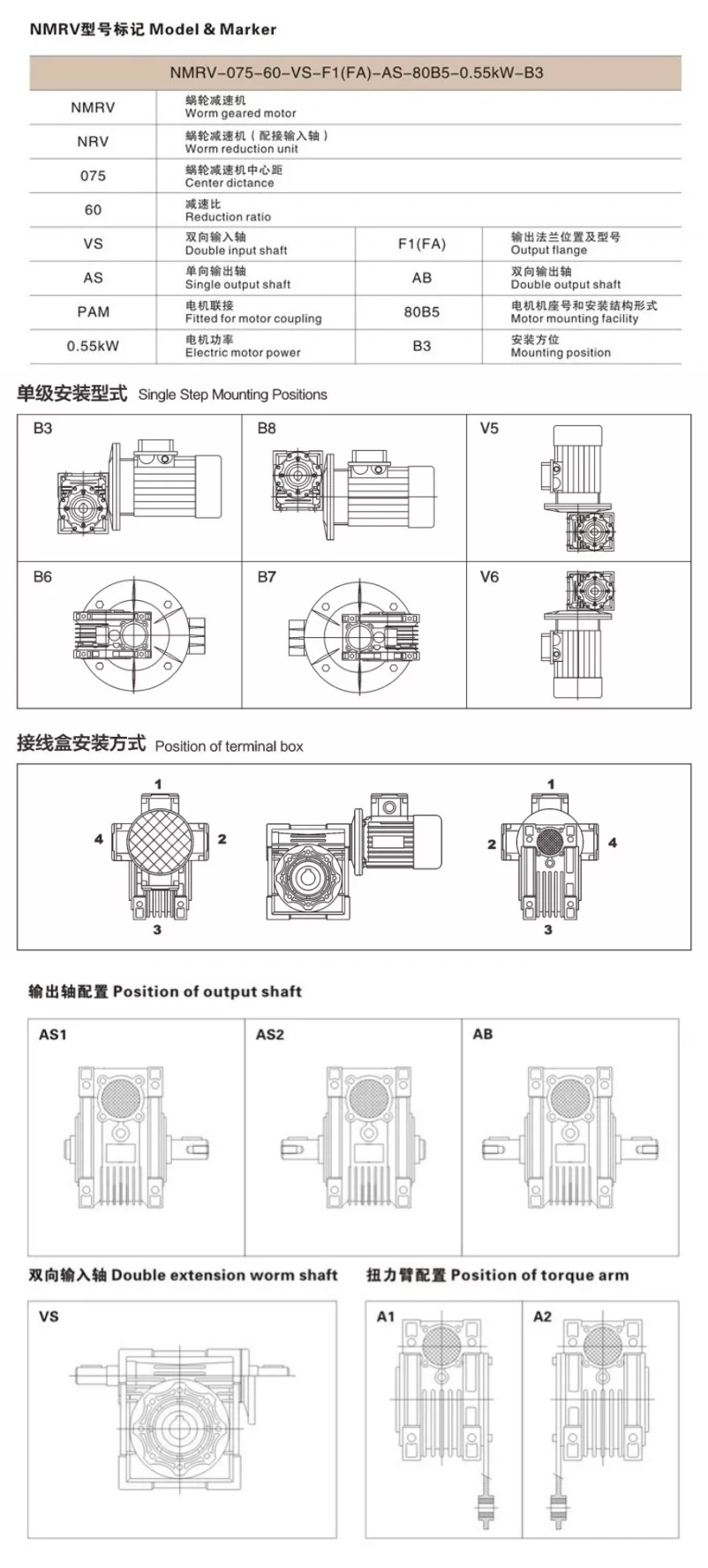

NMRV075 reducer model marking and installation method
NMRV075 gearbox model example:
1. Core Performance Parameters
1.Power range: 0.37kW ~ 4kW, covering small automated stations to medium-duty material handling equipment
2.Standard ratio range: 5:1 ~ 100:1, full ANSI standard ratio lineup with no extra custom machining needed
3.Rated output torque: 85N·m ~ 380N·m, with 1.5x short-term overload capacity for moderate shock loads
4.Full load efficiency: 82% ~ 94%, stable performance for both continuous 24/7 operation and intermittent use
5.Housing material: GG200 grey cast iron, meets OSHA impact resistance and low-noise industrial standards
