NMRV Worm Gear Reducer Servo Motor Matching & Selection Guidelines

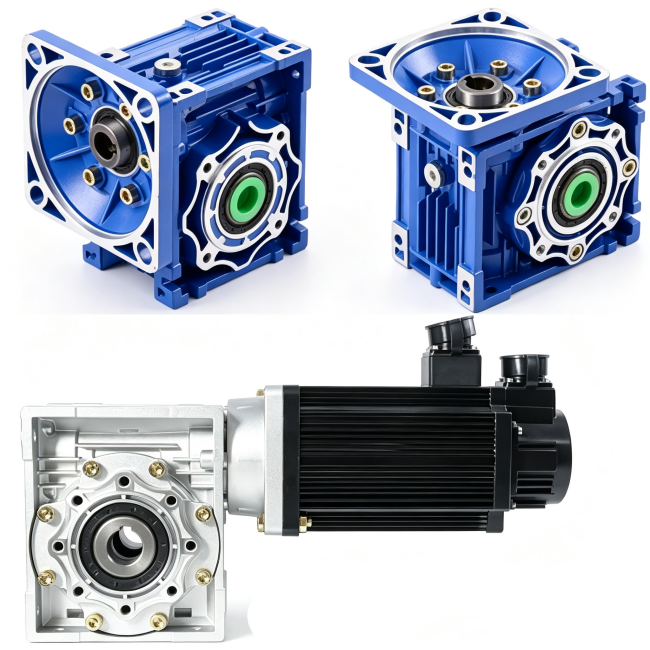

NMRV aluminium worm gearboxes are commonly paired with servo motors for low-to-medium precision automation equipment: positioning platforms, turntables, packaging actuators and automated processing lines. Inertia matching and dynamic load evaluation are critical for servo drive systems.
1. Key Matching Factors for Servo Motor & NMRV Reducer●Load inertia ratio (servo system core indicator)●Required output torque, acceleration and deceleration cycles●Reduction ratio and maximum allowable input speed of NMRV●Servo motor flange and shaft dimension compatibility●Continuous torque vs peak torque during frequent start-stop
2. Standard Selection Workflow1.Calculate load inertia and confirm allowable inertia ratio of the servo system. 2.Determine target output speed to select appropriate reduction ratio. 3.Choose NMRV frame size based on peak torque and continuous operating torque. 4.Verify input flange, shaft diameter and coupling installation dimensions. 5.Check maximum input speed limit of NMRV worm reducer. 6.Evaluate heat generation under frequent cyclic operation.
3. Important Technical Reminders
NMRV worm reducers have limited efficiency; high-speed continuous servo circulation needs thermal assessment.
Control acceleration ramp to avoid instantaneous impact load.
Strictly align servo motor and reducer input shaft to reduce vibration and wear.
For high-precision repeated positioning, check backlash parameters of NMRV unit.
4. Typical Application Scenarios
NMRV040–NMRV090 are the most popular models matched with small & medium servo motors in automated machinery. Heavy load servo applications can adopt NMRV110 ~ NMRV150 worm gear reducers.Contact our technical team if you require custom coupling solution or special mounting configuration.
