NMRV Gearbox with Single Phase Motor – Matching Guide & Common Mistakes to Avoid
Learn how to correctly match a single phase motor to your NMRV worm gearbox. Includes ratio calculation, flange compatibility, and 5 common mistakes to avoid for reliable industrial operation.
H1: NMRV Gearbox with Single Phase Motor – Matching Guide & 5 Mistakes to AvoidSingle phase motors are the most common power source for NMRV worm gearboxes in light to medium
industrial applications. Here‘s how to match them correctly — and what to avoid.

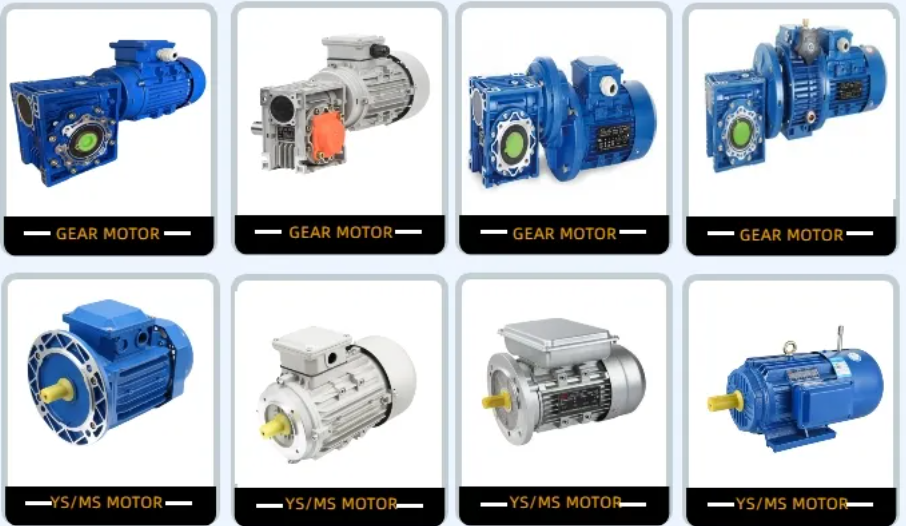

H2: The Standard Configuration
The most common combination is a 1400 RPM single phase motor with an NMRV050 at 40:1 ratio,
producing 35 RPM output — ideal for cement mixers and conveyor applications.
Selection Formula:
●Ratio = Motor RPM ÷ Desired Output RPM
●Example: 1400 RPM ÷ 35 RPM = 40:1
Frame Size Reference:
| NMRV Frame | Typical Motor | Best Application |
| NMRV030 | 0.25–0.37 kW | Light conveyor, small agitator |
| NMRV040 | 0.37–0.75 kW | Gate automation |
| NMRV050 | 0.75–2.2 kW | Cement mixers, conveyor drives |
5 Common Mistakes to Avoid
1. Wrong flange type – B5 flange is standard on NMRV units. If your motor has a B14 flange (small square),
an adapter plate is required.
2. Ignoring input shaft diameter – NMRV050 accepts 11mm, 14mm, or 19mm input shafts. Confirm before
ordering.
3. Forgetting self-locking behavior – Ratios 30:1 and above are self-locking — the load cannot back-drive
when power is off. Critical for hoists and inclined conveyors.
4. Wrong voltage – Single phase motors come in 110V, 220V, etc. Match your power supply.
5. Undersizing the motor – Insufficient power cannot deliver adequate torque.
