NMRV Worm Gearbox – Full Technical Specifications & Parameters
NMRV Worm Gearbox – Technical Specifications

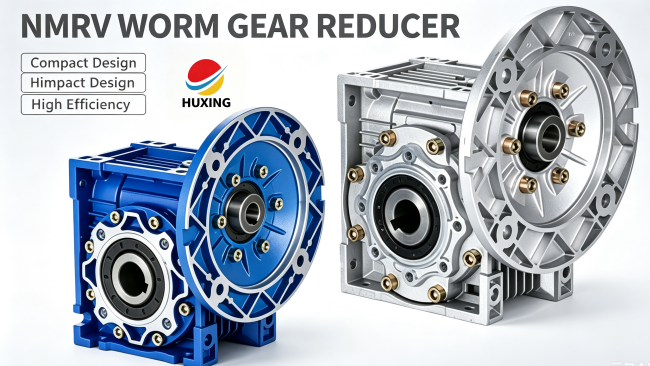

The NMRV series is a widely used aluminum shell worm gear reducer in the industrial field, covering a complete model matrix from micro to large loads, and can adapt to different installation spaces and load requirements.
| Parameter | Range |
|---|
| Models（型号） | NMRV025, 030, 040, 050, 063, 075, 090, 110, 130, 150 |
| Input Power（输入功率） | 0.06 – 11 kW |
| Output Torque（输出扭矩） | Up to 1,550 N·m |
| Ratio Range（比率范围） | 7.5:1 – 100:1 (standard); up to 10,000 (combined) |
| Efficiency（效率） | 40% – 90% (depends on ratio and lead angle) |
| Housing | Aluminum alloy (025-090) / Cast iron (110-150) |
| Worm Material | 20CrMnTi, carburized HRC 56-62 |
| Worm Wheel | Wear-resistant tin bronze alloy |
Standard ratios（减速比）: 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 100
The model number of NMRV turbine gearbox directly corresponds to the center distance of the machine base (unit: mm). The larger the value, the higher the box size, load-bearing capacity, and upper limit of the adapted motor power
In addition to the basic single-stage model, dual stage/composite models can also be expanded through
modular combinations to achieve greater reduction ratios:
Double stage turbine reducer series type: such as NMRV40/75, NMRV63/130, the total speed ratio can
be extended to over 1000Composite integrated type: such as NMRV+WB cycloidal pinwheel combination, NMRV+MB continuously
variable transmission combination, suitable for special speed regulation requirements
