H1: NMRV Gearbox with Three Phase Motor – Matching Guide & 5 Mistakes to Avoid
Three phase motors offer higher efficiency and better torque control than single phase — making them ideal for heavier industrial NMRV applications.
Compatibility Overview

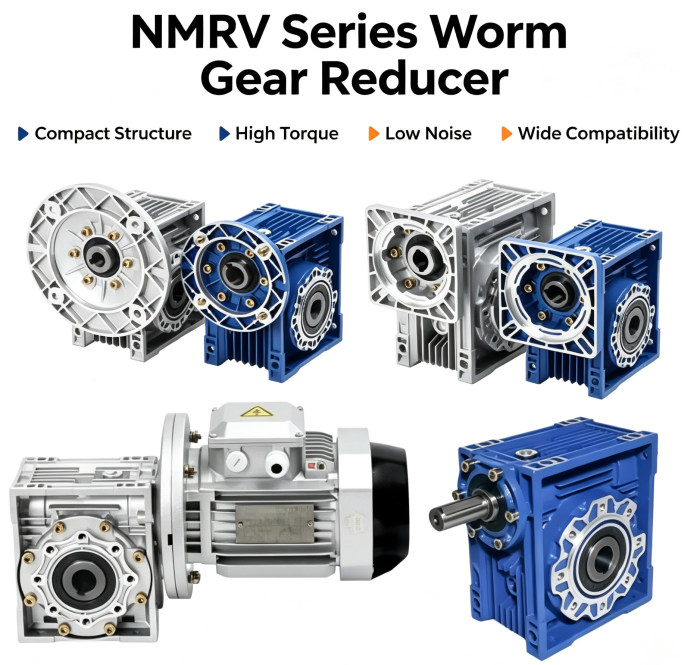

NMRV gearboxes are fully compatible with standard three phase induction motors. The standard configuration uses a three phase 380V motor at 1400 RPM (4-pole, 50Hz).
NMRV gearbox frame size reference
| NMRV Frame | Typical Motor | Housing | Best Application |
| NMRV030 | 0.12–0.37 kW | Aluminium | Light conveyor |
| NMRV040 | 0.37–0.75 kW | Aluminium | Gate automation |
| NMRV050 | 0.75–2.2 kW | Aluminium | Cement mixers |
| NMRV063 | 0.75–3 kW | Aluminium | Medium conveyor |
| NMRV075 | 1.5–4 kW | Aluminium | Medium-duty conveyor |
| NMRV090 | 2.2–5.5 kW | Aluminium | Heavier conveyor |
| NMRV110 | 4–7.5 kW | Cast iron | Heavier conveyor |
5 Common Mistakes to Avoid
1. Exceeding speed limits – Worm input speed should not exceed 1500 RPM. Higher speeds cause excessive heat and premature wear.
2. Wrong voltage – Three phase motors are available in 220V or 380V. Verify your power supply matches.
3. Ignoring service factor – Calculate service factor based on load type and duty cycle. A 0.75kW motor running 16 hours/day with medium shock requires SF ≥ 1.5.
4. Mismatched flange – B5 flange is standard. B14 requires adapter plate.
5. Overlooking installation – Mount on flat, rigid base with tight bolts.
