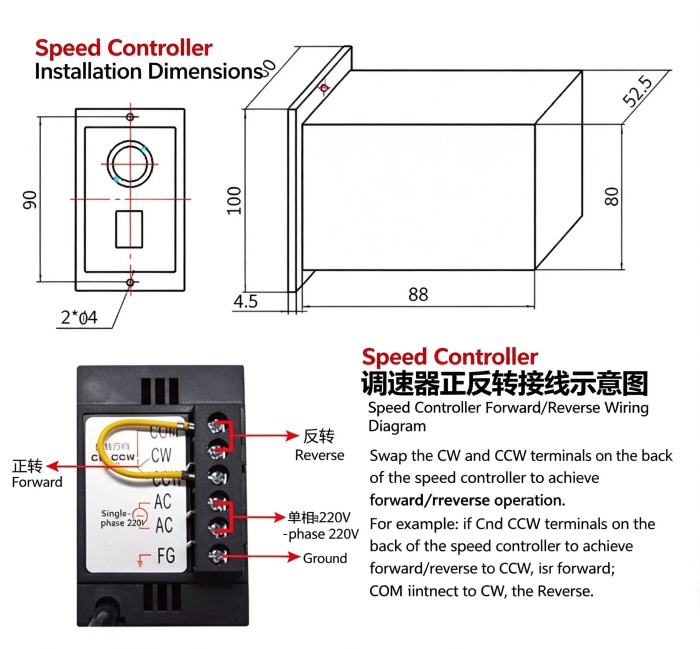

Micro Gear Motor Speed Controller Wiring Diagram: A Complete Connection Guide

---

H1: Micro Gear Motor Speed Controller Wiring Diagram: A Complete Connection Guide

Helical Gear Motor Power  Range: 6W/10W/15W/20W/25W/30W/40W/60W/90W/120W/180W/200W

Ratio Range: From 3:1 to 3000:1.

Voltage: Single Phase 110V/220V; Three phase 220V/380V/415V

Output Speed: 1RPM/min~1500RPM/min

Additional Function: Speed Regulation; Brake function..

Characteristics:  High efficiency, Low noise, High strength and Long life

Application: Precision transport, Lift, printing ,packing,medicine,food ,electron etc.

H2: Need a Custom Speed Controller Solution for Your OEM Project?

As a manufacturer specializing in micro gear motor and controller integration, we support customized

speed controller configurations with adjustable PWM frequency and voltage ranges. Share your technical

parameters with our engineering team to receive a tailored wiring solution within 24 hours.
