Micro Gear Motor Mounting Dimensions – Flange & Foot Mount Drawings
H1:Micro Gear Motor Mounting Dimensions – Flange & Foot Mount

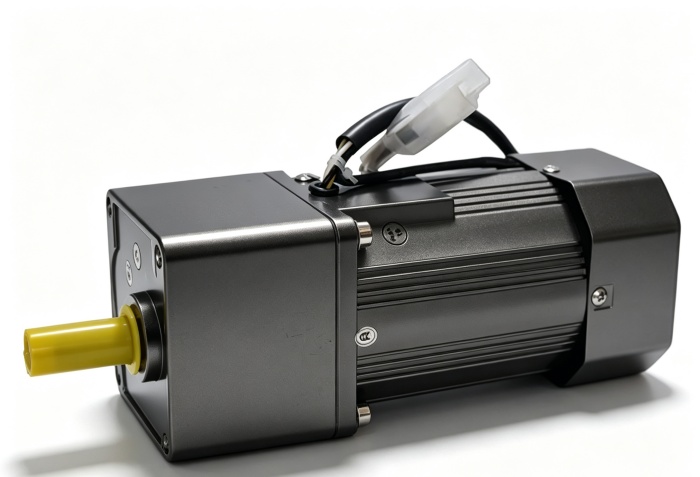

Reduction motor small 220v single 90W120W250 variable speed forward and reverse 380V gear speed control motorH2: Output Shaft Sizes
| Shaft Dia. | Key Size |
|---|---|
| 8mm | 3×3×20 |
| 10mm | 4×4×25 |
| 12mm | 4×4×30 |
| 15mm | 5×5×35 |
H2: Mounting Types
Flange mount – compact, direct machine mounting
Foot mount – floor or platform mounting
H3: Terminal Box Positions
Specify R (right), L (left), T (top), or B (bottom) when ordering.
H3: CAD Drawings
PDF, DWG, and STEP files are available for all standard models.
📩 Request CAD Drawing – Send your model, ratio, and mounting type. We will provide the drawing within 24 hours.
