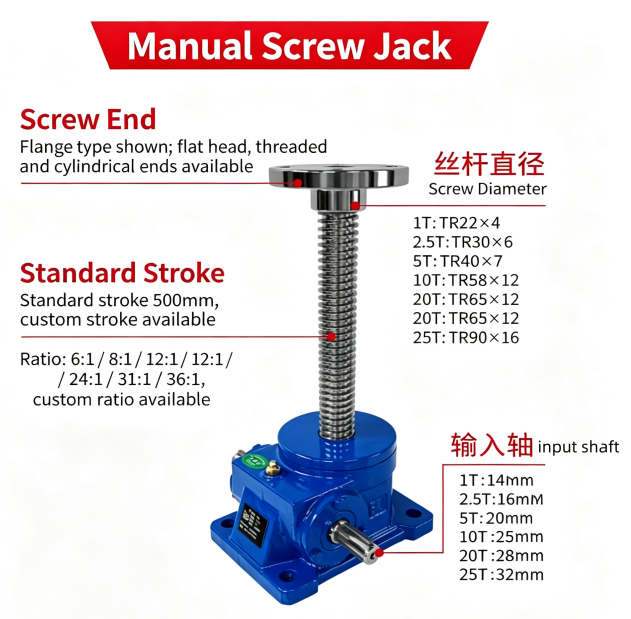

Technical parameters of manual lift/screw jack

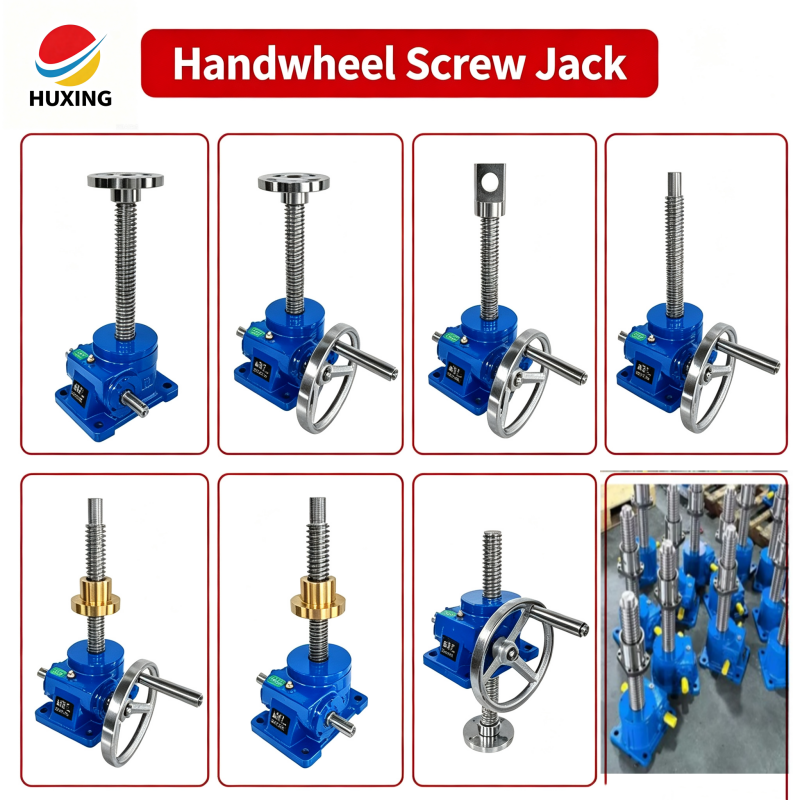

Detailed dimensional parameters of manual turbine lift/manual jack-hand tool
Q1: What is the load capacity range of SWL series screw jacks?
A: SWL series covers models from SWL2.5 (2.5 tons / 25 kN) up to SWL120 (120 tons / 1,200 kN) . Standard models include SWL2.5, SWL5, SWL10, SWL15, SWL20, SWL25, SWL35, SWL50, SWL70, SWL100, and SWL120.
Q2: How do I choose the right SWL model?
A: Selection is based on three core parameters: lifting load (kN), screw stroke (mm), and lifting speed (m/min) . The recommended process:
Determine the preliminary model based on load and stroke
Verify speed against the lifting force/speed table
If speed is insufficient, select the next larger model
