Appearance and installation dimension diagram of NMRV130 reducer
Professional NMRV130 Reducer Size & Parameter Guide
NMRV130 is a large high torque worm gear reducer widely used in heavy industrial machinery. For mechanical design and on-site installation, NMRV130 installation dimensions and standard installation structure reference data.
NMRV130 Exact Installation Sizes (mm)
Center Distance: 130mm
Output Shaft Diameter: 45mm
B3 Foot Mount Size: 240×180mm, mounting hole 18mm
B5 Flange: 350mm outer diameter, 300mm positioning diameter
B14 Flange: 240mm outer diameter
Overall Dimension: 275×240×205mm
Net Weight: 42KG

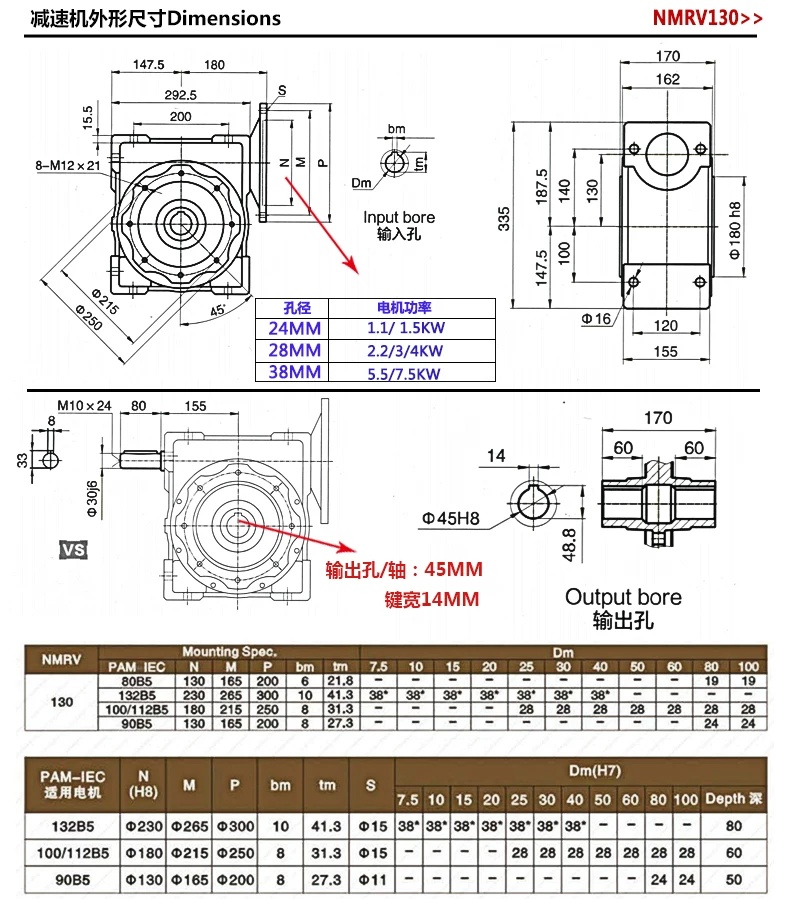

Installation dimension diagram of NMRV130 reducer:
NMRV130 Technical Parameters
Reduction Ratio: 5:1 ~ 100:1
Motor Power Range: 3kW – 15kW
Max Output Torque: 2600 N.m
Protection Grade: IP54
Structure: Reinforced aluminum alloy housing, strong overload capacity
Applications
Ideal for heavy-duty conveyors, industrial mixers, lifting platforms, mining auxiliary equipment and large automation lines.
FAQ & Service
We provide standard mounting diagrams, 2D/3D drawings and professional parameter matching service. Customized non-standard NMRV130 reducers are available.
