K Series Gearbox Mounting – Foot, Flange & Hollow Shaft Options
Installation type of K-series right angle spiral gearbox:
Foot mounted (K) - bolted to the floor or base plate
Flange installation (KF) - bolts are directly fixed to the machine surface
Hollow Shaft (KA) - Direct shaft installation, saving space
Solid Shaft+Flange (KAF) - Combination Options

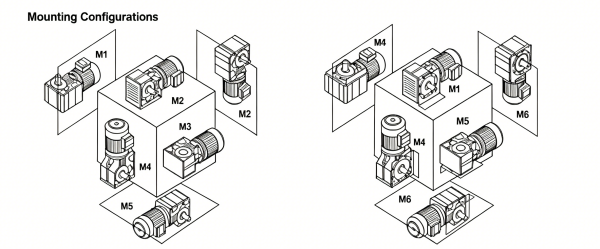

K series reducer installation method: supports six installation positions from M1 to M6, and defaults to M1 installation.
Including various forms such as foot installation, flange installation (B5, B14 flanges), hollow shaft installation, etc.
Input options:
Direct coupling of motor
IEC flange input
Free input shaft (for belt/pulley transmission)
