JWM trapezoidal screw jack specifications and models
JWM thread jack is a self-locking lifting equipment with a trapezoidal screw and worm gear structure. Its core specifications cover multiple tonnage ranges. The following are detailed parameter information:
1、 General basic specifications
●Core structure: Precision trapezoidal screw pair+high-precision worm gear pair, with theoretical self-locking characteristics, suitable for low-speed and low-frequency operation scenarios
●Rated thrust range: 1.96kN~980kN (approximately 0.2 tons~100 tons)
●Maximum travel: The standard can reach 2000mm, and the extended travel can be customized according to needs
●Adaptive power: Supports motor drive and manual operation, with a maximum input speed of 1500r/min
●Working environment: Suitable for temperature range of -20 ℃~100 ℃, designed for indoor load holding applications
2.JWM Threaded Jack Full Series Standard Models
Regular coverage model: JWM002、JWM005、JWM010、JWM025、JWM050、JWM100、JWM150、JWM200、JWM300、JWM500、JWM750、JWM1000
3、 Supporting and installation specifications

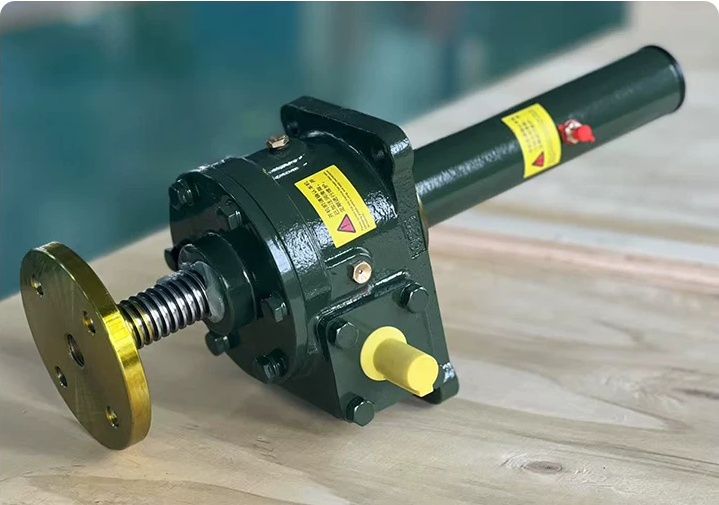

Sports form: Supports two modes of screw movement and nut movement

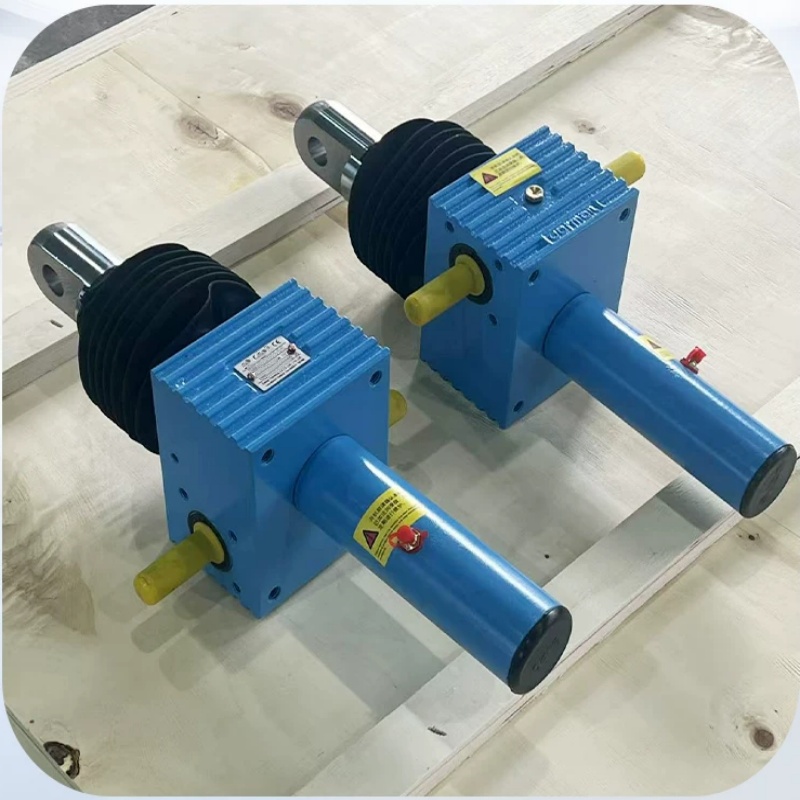

Input form: Multiple options including single axis input, dual axis input, flange input, etc

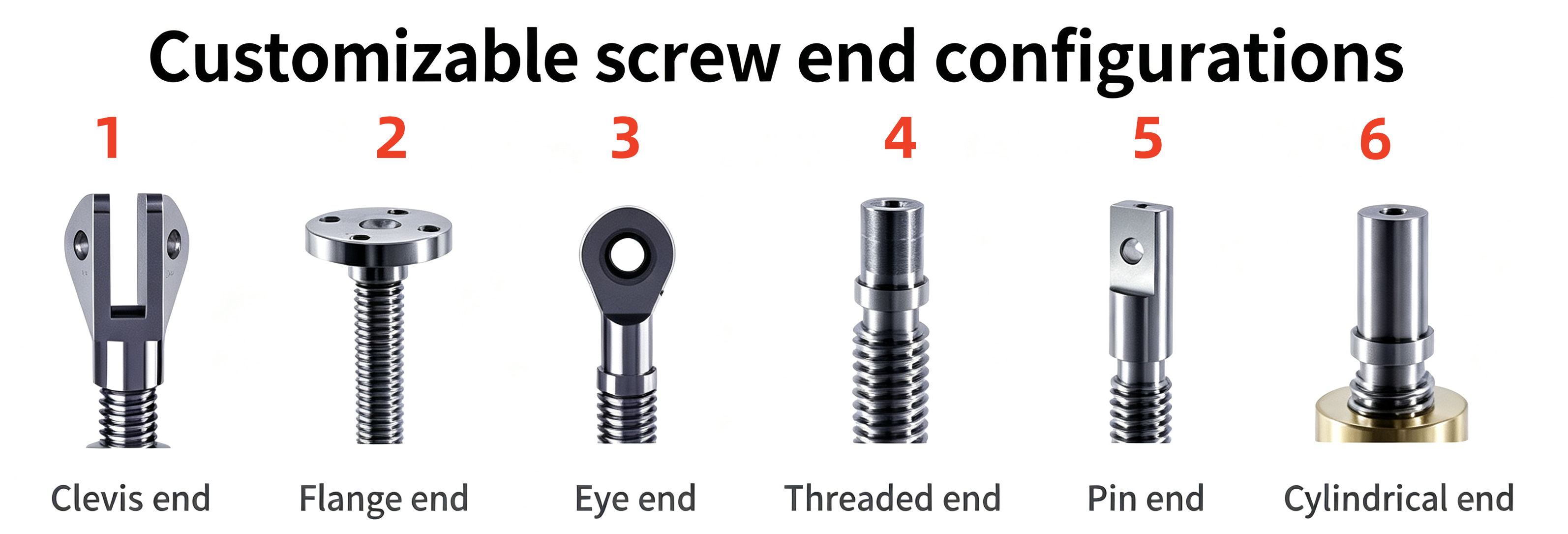

End type: can be matched with various connection accessories such as external thread, spherical hinge, pin hole end, flange end, etc
Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
