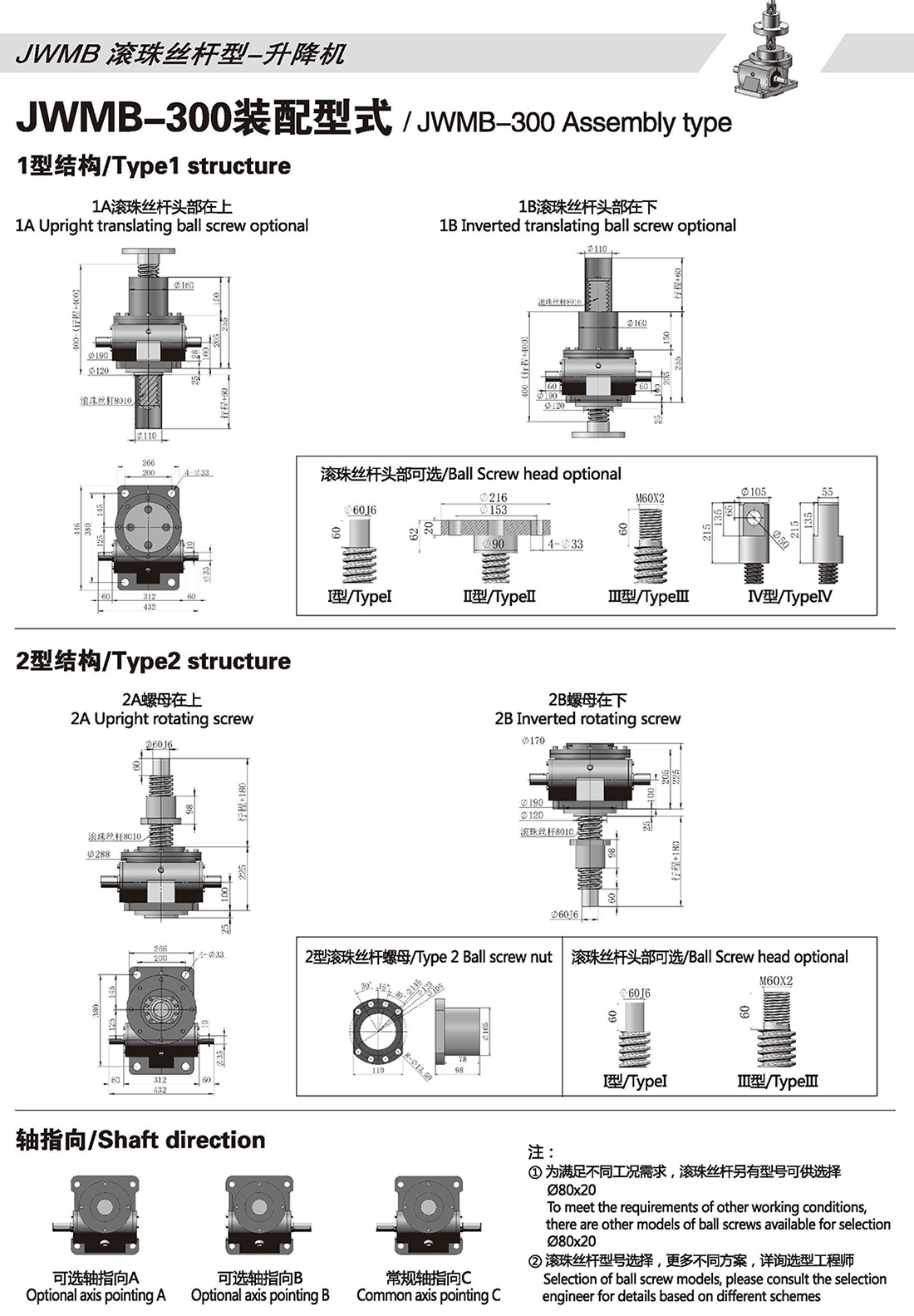

JWB300 Ball Screw Jack – Assembly Drawing & Mounting Dimensions
JWB200 Ball Screw Jack – Assembly Drawing & Mounting Dimensions
| model | Maximum dynamic load (KN) | Maximum static load (KN) | Lead (mm) | Screw diameter (mm) | speed ratio |
| JWB005 | 4.8 | 4.9 | 5 | 16 | 1:5 1:6.6 1:10 1:20 |
| JWB010 | 9.6 | 9.7 | 5 | 20 | 1:5 1:6.6 1:10 1:20 |
| JWB025 | 22.5 | 23 | 10 | 25 | 1:6 1:8 1:12 1:24 |
| JWB050 | 47/38/24.5 | 48 | 10/20/40 | 40/38/40 | 1:6 1:8 1:12 1:24 |
| JWB100 | 59.7/56.8 | 97 | 10/20 | 50/48 | 1:8 1:12 1:24 |
| JWB150 | 59.7/56.8 | 146 | 10/20 | 50/48 | 1:8 1:12 1:24 |
| JWB200 | 66.6/113.6 | 195 | 10/20 | 63/63 | 1:8 1:12 1:24 |
| JWB300 | 72.5/128 | 293 | 10/20 | 80/80 | 1:10.67 1:16 1:32 |
| JWB500 | 142 | 489 | 20 | 100 | 1:10.67 1:16 1:32 |
Advantages of mechanical spiral lifting jack/ball screw jack:
●Multi functional lifting and positioning
Supports lifting, pushing, tilting, and multi-directional adjustment in various industrial applications.
●Compact and lightweight structure
The simple mechanical design ensures easy installation, low maintenance costs, and long-term stable use.
●High precision positioning
Especially suitable for motor drive systems that require precise and repeatable positioning control.
●Flexible driver options
Compatible with electric, hydraulic, and pneumatic drives, it can be widely integrated into the system.
●Reliable load handling
Designed to withstand static and dynamic loads up to 50 tons, ensuring high safety and durability in harsh environments.
Huxing supplies worm screw elevators, bevel gear ball screw elevators, gear reducers, bevel gearboxes, and complete synchronous lifting system components.
Please inform us of your load, travel time, and speed, and arrange one-on-one technical consultation for you; Sending product catalogs or technical materials; Provide targeted solutions.
