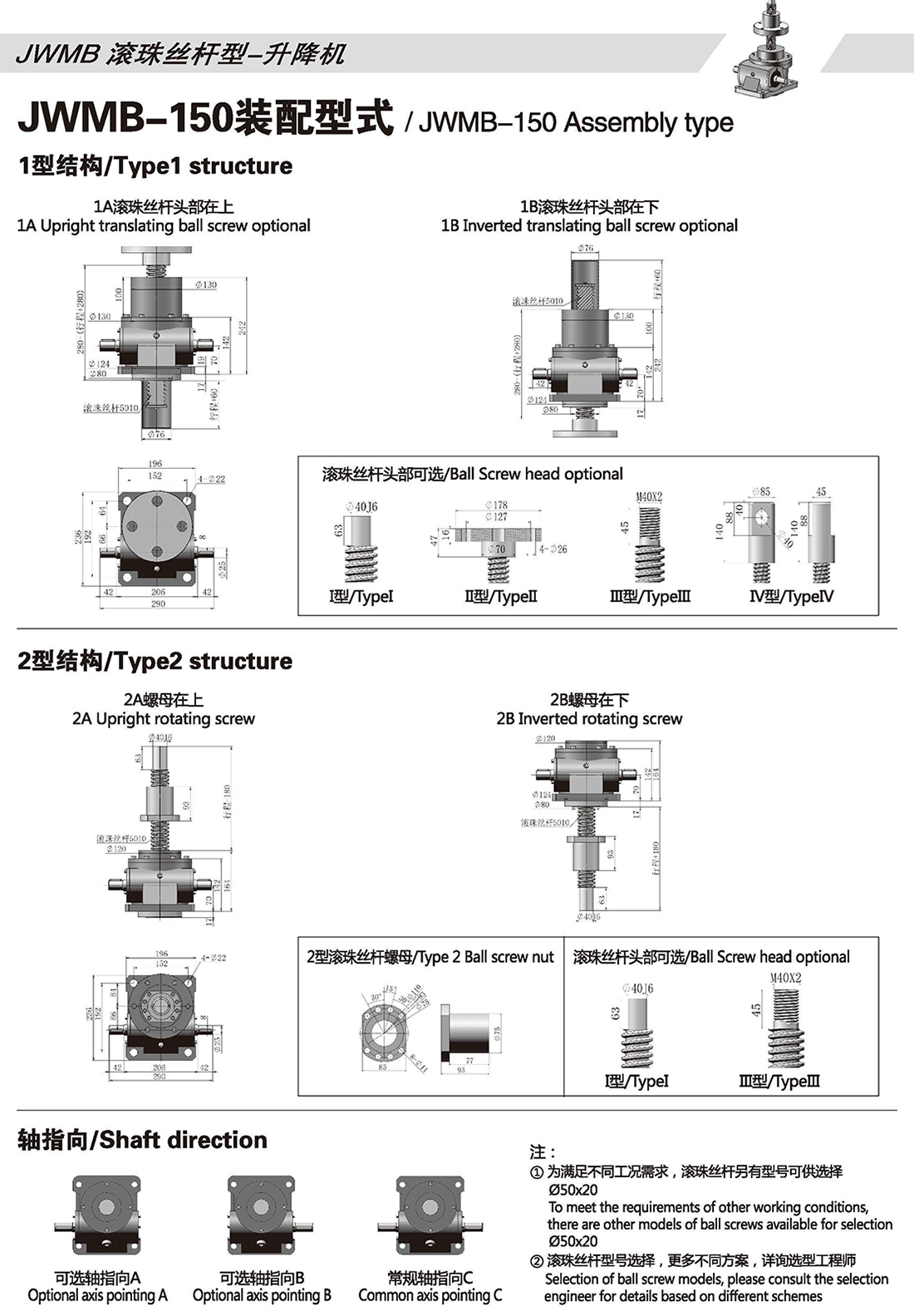

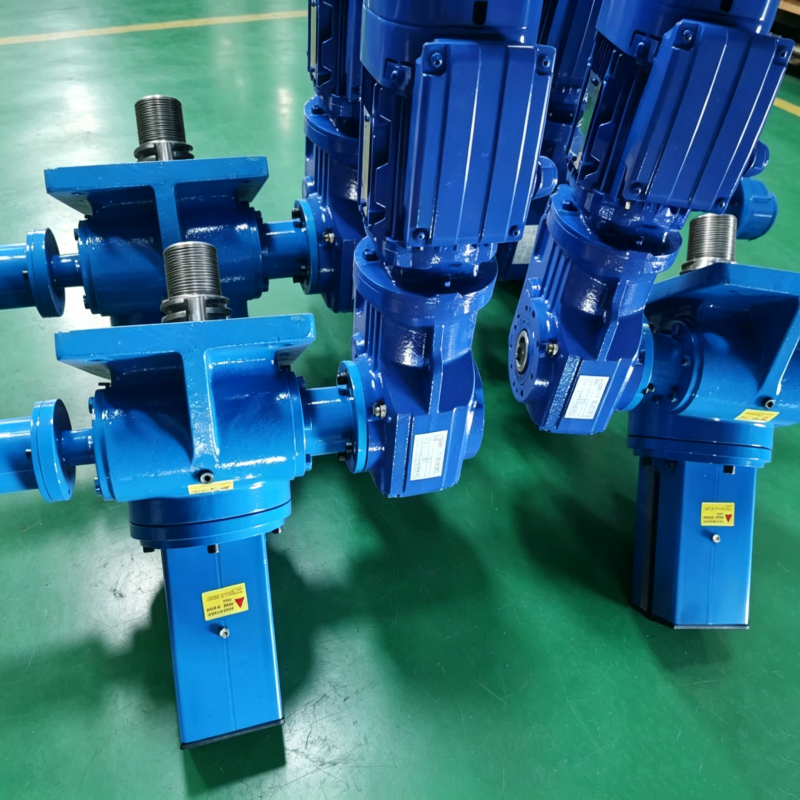

JWB150 Ball Screw Jack – Assembly Drawing & Mounting Dimensions
JWB150 Ball Screw Jack – Assembly Drawing & Mounting Dimensions

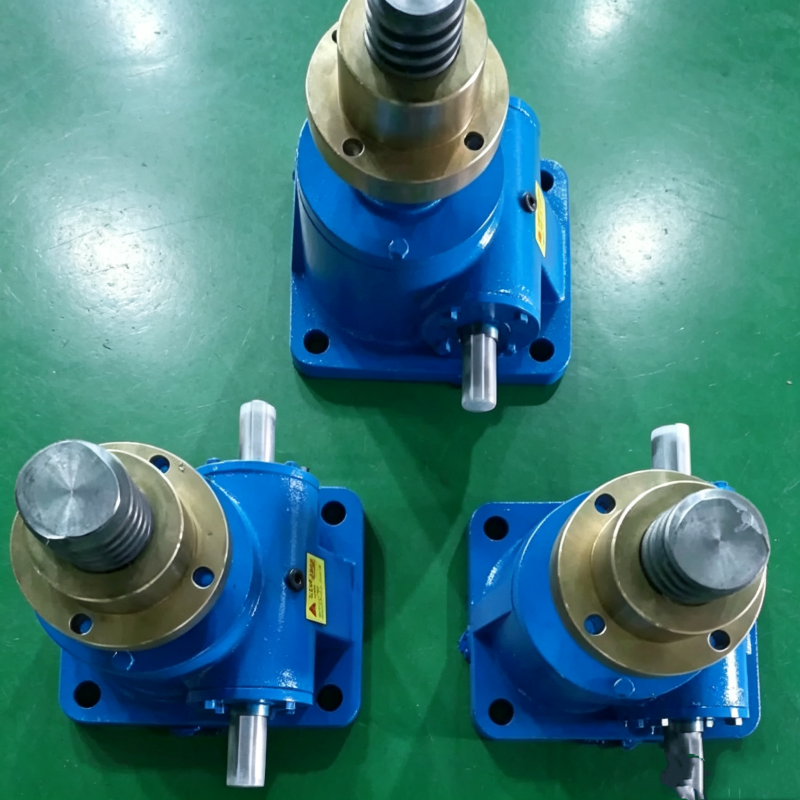

The Huxing series worm screw elevator is a precision motion lifting and positioning actuator designed specifically for tasks such as vertical lifting, lowering, pushing, tilting, and precise height adjustment. Compact in structure, lightweight, and inherently safe, it is highly suitable for applications that require reliable load handling and high positioning accuracy.
| model | Maximum dynamic load (KN) | Maximum static load (KN) | Lead (mm) | Screw diameter (mm) | speed ratio |
| JWB005 | 4.8 | 4.9 | 5 | 16 | 1:5 1:6.6 1:10 1:20 |
| JWB010 | 9.6 | 9.7 | 5 | 20 | 1:5 1:6.6 1:10 1:20 |
| JWB025 | 22.5 | 23 | 10 | 25 | 1:6 1:8 1:12 1:24 |
| JWB050 | 47/38/24.5 | 48 | 10/20/40 | 40/38/40 | 1:6 1:8 1:12 1:24 |
| JWB100 | 59.7/56.8 | 97 | 10/20 | 50/48 | 1:8 1:12 1:24 |
| JWB150 | 59.7/56.8 | 146 | 10/20 | 50/48 | 1:8 1:12 1:24 |
| JWB200 | 66.6/113.6 | 195 | 10/20 | 63/63 | 1:8 1:12 1:24 |
| JWB300 | 72.5/128 | 293 | 10/20 | 80/80 | 1:10.67 1:16 1:32 |
| JWB500 | 142 | 489 | 20 | 100 | 1:10.67 1:16 1:32 |
Huxing supplies worm screw elevators, bevel gear ball screw elevators, gear reducers, bevel gearboxes, and complete synchronous lifting system components.
Please inform us of your load, travel time, and speed, and arrange one-on-one technical consultation for you; Sending product catalogs or technical materials; Provide targeted solutions.
