Appearance dimension diagram and installation dimension parameter table of NMRV full series reducers
NMRV30-150 reducer appearance dimension drawing installation dimension high-definition drawing
This article provides standard appearance dimensions, external dimensions, installation dimensions, and installation hole position drawings for the entire NMRV series of reducers, in millimeters, suitable for equipment design, structural installation, and selection comparison.
1、 Product Introduction

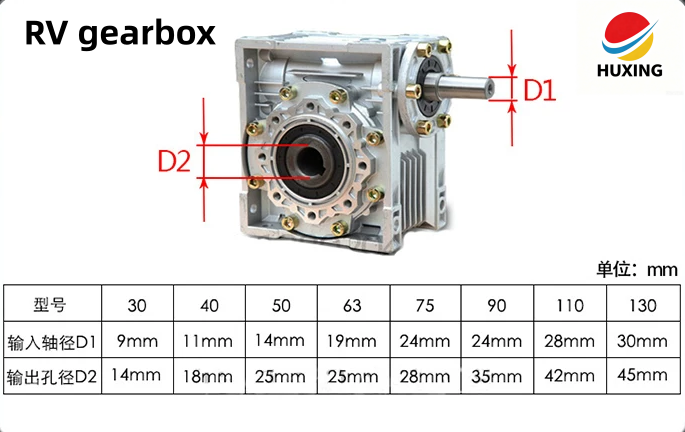

The NMRV series worm gear reducer has high box strength and good heat dissipation, suitable for medium load equipment and widely used in automation, conveying, environmental protection, packaging, textile machinery, etc.

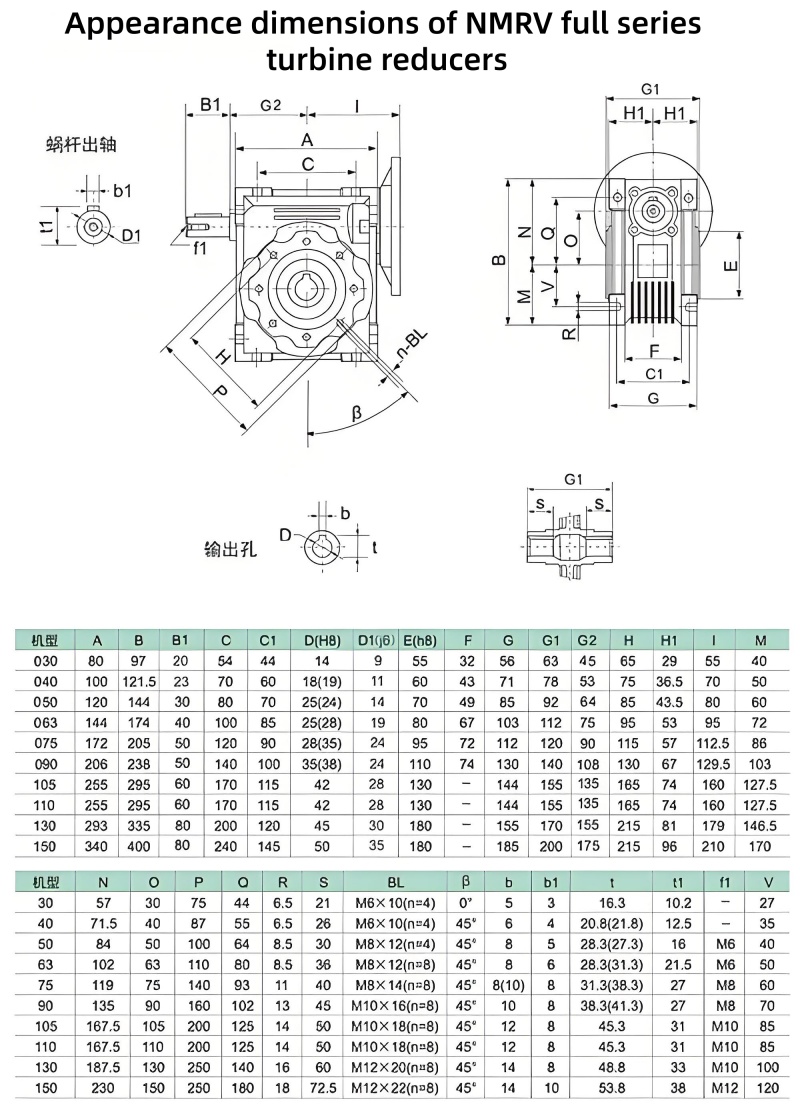

2、 Appearance dimension diagram
3、 Drawing Description
Dimensions in millimeters (mm)
The unmarked tolerance shall be executed according to the general mechanical standards
The installation size is standard structure, and non-standard customization is acceptable
The data is for selection reference only, and the official samples and physical objects shall prevail
4、 Related model size diagram
NMRV025｜NMRV030｜NMRV040｜NMRV050｜NMRV63｜NMRV75｜NMRV90｜NMRV110｜NMRV130｜NMRV150
