Installation method and motor position of R series reducer

R series helical gear hard tooth surface reducer installation type:

Foot mounted (R) - bolted to the floor or base plate

Flange installation (RF) - bolts directly fixed on the machine surface

Foot+flange - maximum flexibility

Installation position (M1-M6)

Customizable design, motor gearbox reducer

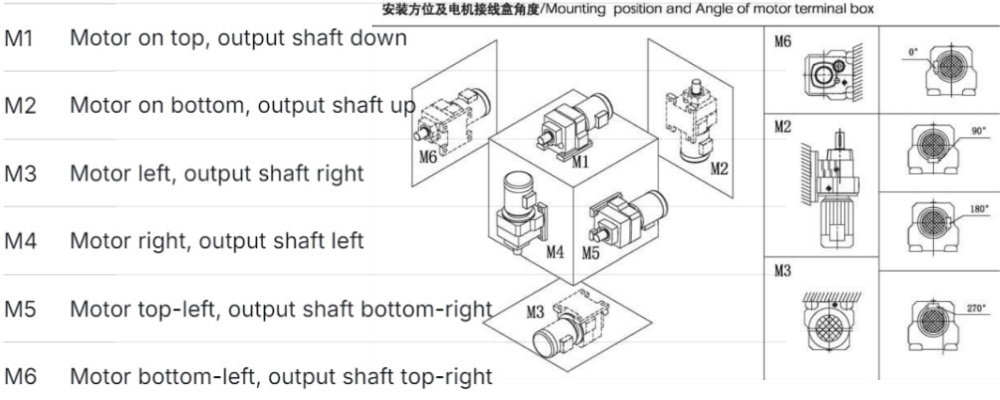

Installation diagram of deceleration motor

Input options:

Motor input (direct coupled)

IEC flange input (standard motor mount)

Shaft input (for belt/pulley drive)

Pro tip: Specify M1–M6 when ordering to avoid installation mismatches.
