Induction Geared Motor vs Speed Control Geared Motor Assembly Guide
H1: Induction Geared Motor vs Speed Control Geared Motor: Assembly & Component
Guide
H2: Components of constant speed induction gear motor and variable speed control
gear motor
H3: Components

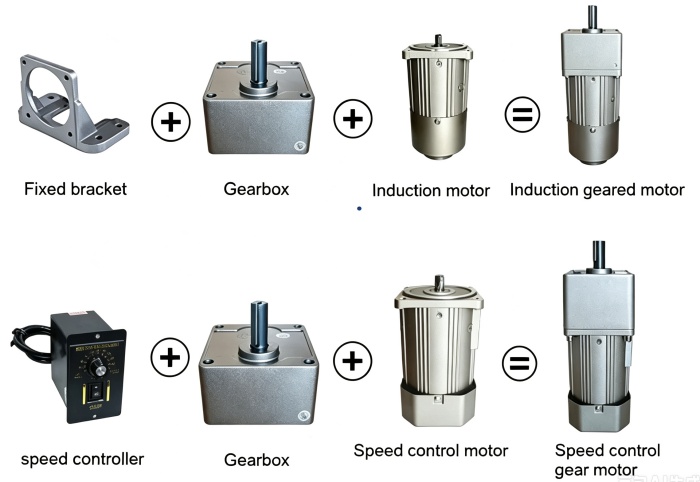

Fixed bracket – provides stable mounting
Gearbox – reduces speed and increases torque
Induction motor – runs at constant speed
Assembly: Fixed bracket + Gearbox + Induction motor = Induction geared motor (fixed speed)
H2: Key Differences & Applications
Induction geared motor: Simple, cost-effective, constant speed. Ideal for fixed-speed conveyors, pumps, and packaging.
Speed control gear motor: Adjustable speed via controller. Suitable for varying loads, mixers, and automated lines.
H3: Components
Speed controller – adjusts motor speed
Gearbox – reduces speed and increases torque
Speed control motor – supports adjustable speed
AC Gear Motor Product Parameters：
MOTOR FRAME SIZE | 60 mm /70mm/80mm/90mm/104mm | |
MOTOR TYPE | INDUCTION MOTOR | |
OUTPUT POWER | 6W 10W 15W 25W 40W 60W 90W 120W 140W 180W 200W (Can be Customized) | |
OUTPUT SHAFT | 8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized) | |
Voltage type | 110V,120V,220V,230V,380V,415V | |
Frequency | 50/60Hz | |
Accessories | Terminal Box / Fan / Thermal protector / Electric Brake / Controller | |
GEARBOX FRAME SIZE | 60 mm / 70mm / 80mm / 90mm / 104mm | |
Gear Ratio | 3K-200K | |
