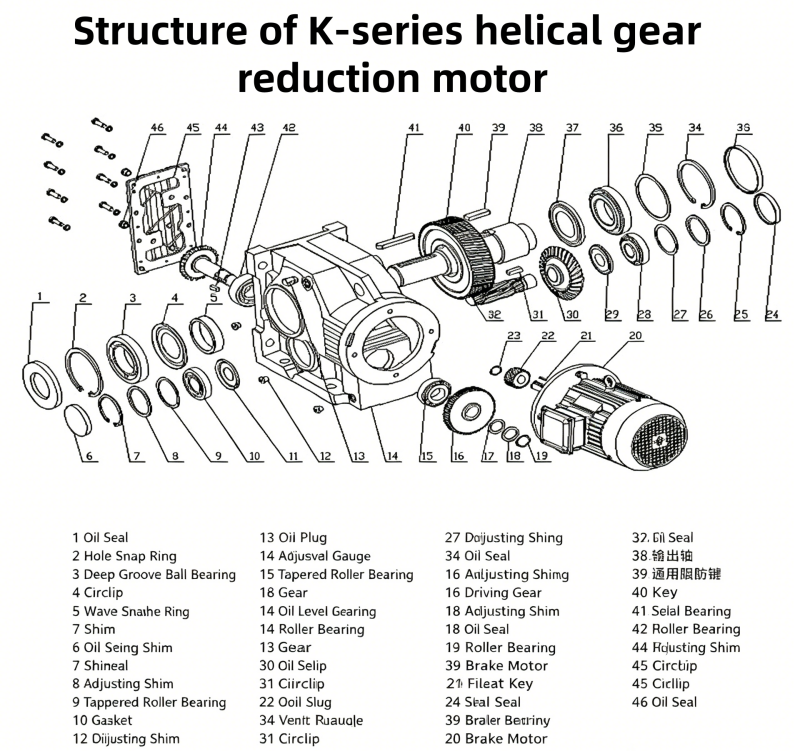

Decomposition diagram of K-series helical gear reduction motor structure
The decomposition diagram of the K series spiral bevel gear reducer clearly shows the full part disassembly structure from the input end to the output end, and marks the assembly positions of core components such as bevel gear pairs, helical gear sets, bearings, housing, oil seals, etc. It can intuitively present the internal transmission logic and facilitate quick matching of parts during installation and maintenance
