NMRV150 Heavy-Duty Reducer Standard Size & Performance Guide
NMRV150 is the largest model in the standard NMRV worm gear reducer series, providing ultra-high torque for heavy industrial equipment.
NMRV150 Accurate Installation Dimensions (mm)
Center Distance: 150mm
Output Shaft Diameter: 55mm
B3 Foot Mount: 285×210mm, mounting hole 20mm
B5 Flange: 400mm outer diameter, 350mm positioning diameter
B14 Flange: 260mm outer diameter
Overall Size: 310×270×230mm
Net Weight: 62KG

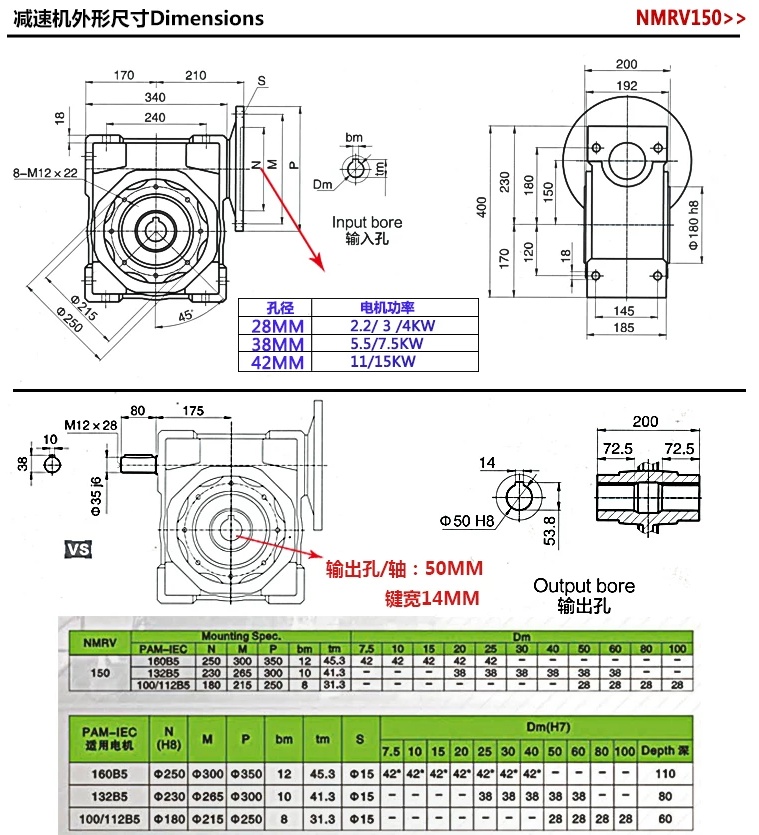

NMRV150 appearance installation dimension diagram:
NMRV150 Core Technical Specs
Reduction Ratio: 5~100
Matched Motor Power: 4kW – 18.5kW
Max Output Torque: 3800 N.m
Protection Level: IP54
Feature: Super high torque, heavy load resistant, self-locking, low noise
Industrial Applications
Widely used in large conveyor systems, construction machinery, heavy lifting equipment, industrial stirring and chemical environmental protection equipment.
